3M Products & Supplies

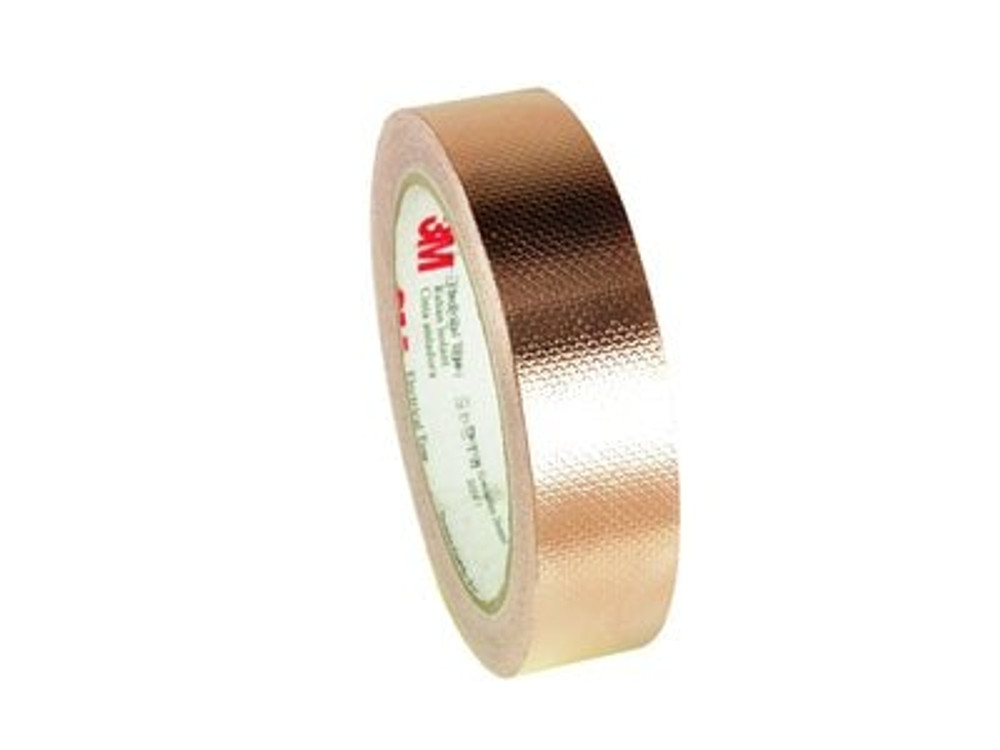

3M™ Embossed Copper Foil EMI Shielding Tape 1245, 3/8 in x 18 yd, 3 in Paper Core, 24 Rolls/Case - 7010350291

Sold As: 24-Pack
SKU: 7010350291
MPN: 7010350291
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138495916
3M ID: 80610881700
5 Digit UPC: 49591
$682.17 ($28.42 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Copper Foil EMI Shielding Tape 1245 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • UL Listed and RoHS 2011/65/EU Compliant
  • Offers stable contact resistance and good shielding effectiveness
  • Comes on a removable liner for easy die-cutting and handling
  • Rated for 600V applications
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Tensile Strength (Metric) UOMN/cm
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Metric) UOMm
Overall Length (Imperial)18.0
Backing (Carrier) Thickness (Metric) UOMmm
MaterialEmbossed Copper Foil
Shelf Life UOMYear
Product ColorCopper
Tensile Strength (Metric)44.0
Specifications MetRoHS 2011/65/EU, UL Listed, UL Recognized
Tape GradeProfessional
Product MarketsElectrical Equipment Manufacturing
Backing (Carrier) Thickness (Imperial)1.6
Overall Width (Metric)9.53
Backing (Carrier) Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Overall Width (Imperial)0.375
Backing (Carrier) Thickness (Metric)0.04
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.1016
Adhesive TypeAcrylic
Backing (Carrier) MaterialCopper Foil, Embossed
Overall Length (Metric)16.5
