3M Products & Supplies

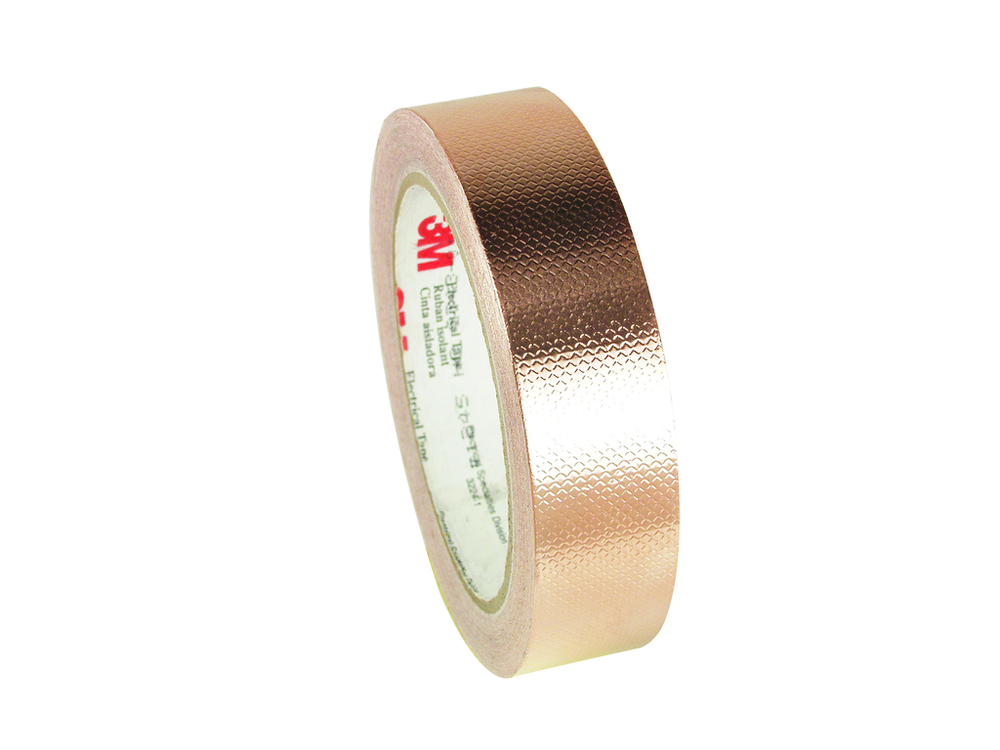

3M™ Embossed Copper Foil EMI Shielding Tape 1245, 5/8 in x 18 yd, 3 in Paper Core, 15 Rolls/Case - 7010290533

Sold As: 15-Pack
SKU: 7010290533
MPN: 7010290533
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138944711
3M ID: 80611027717
5 Digit UPC: 94471
$710.68 ($47.38 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Copper Foil EMI Shielding Tape 1245 is an acrylic adhesive EMI shielding tape. This flame retardant tape is designed for applications that require outstanding electrical conductivity. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Comes on a removable liner for easy die-cutting and handling
  • UL Listed and RoHS 2011/65/EU Compliant
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Offers stable contact resistance and good shielding effectiveness
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Imperial)4.0
Shelf Life UOMYear
Tensile Strength (Metric)44.0
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.1016
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)15.8
Tensile Strength (Metric) UOMN/cm
Specifications MetRoHS 2011/65/EU, UL Listed, UL Recognized
Adhesive TypeAcrylic
Product ColorCopper
Backing (Carrier) Thickness (Metric)0.101
Tape GradeProfessional
Overall Width (Imperial)0.625
MaterialEmbossed Copper Foil
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialCopper Foil, Embossed
Product MarketsElectrical Equipment Manufacturing
