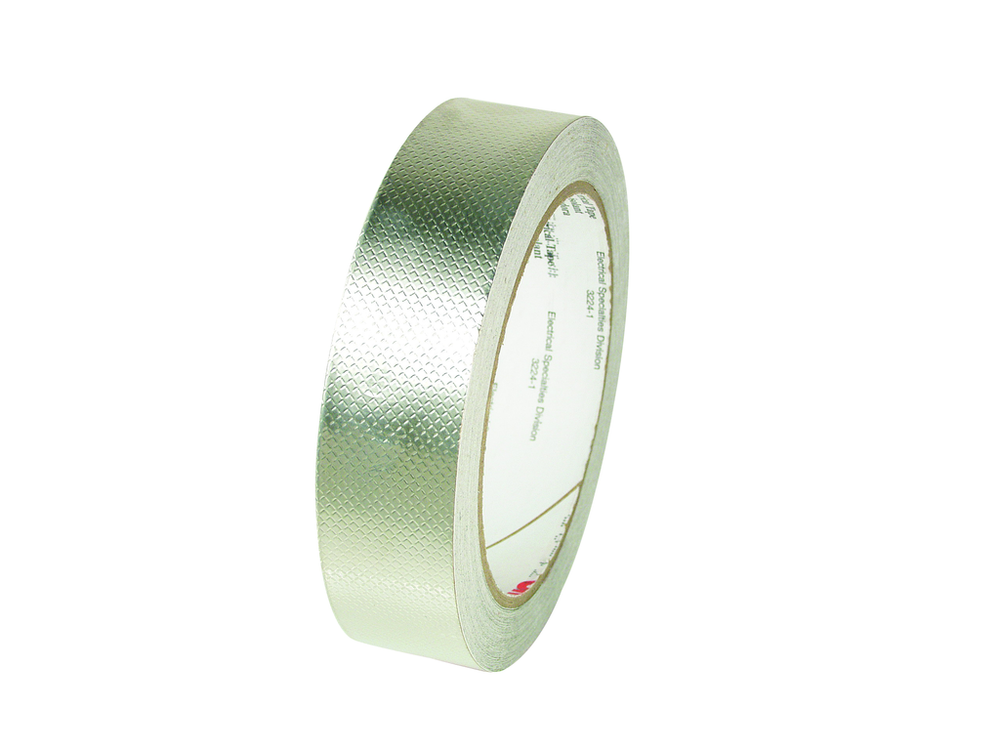

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 1 in x 60 yds, 9 Rolls/Case - 7010395798

Sold As: 9-Pack
SKU: 7010395798
MPN: 7010395798
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138515157
3M ID: 80100611872
5 Digit UPC: 51515
$2,862.05 ($318.01 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Embossed, copper foil backing resists discoloration and oxidation
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Offers outstanding solderability with tin-plated coating
  • Offers stable contact resistance and good shielding effectiveness

Specifications

Shelf Life1825
Country of OriginTaiwan
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) MaterialTin Plate Copper Foil, Embossed
Product ColorTin
Overall Width (Metric)25.4
Overall Width (Metric) UOMmm
Tape GradeProfessional
ApplicationShielding
Total Tape Thickness without Liner (Metric) UOMmm
Backing (Carrier) Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Metric)0.1016
Elongation at Break100
Overall Width (Imperial)1.0
Adhesive TypeAcrylic
Overall Width (Imperial) UOMin
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Maximum Operating Temperature (Celsius)130.0
Backing (Carrier) Thickness (Metric)0.035
Backing (Carrier) Thickness (Imperial)1.4
Tensile Strength (Metric)44.0
Shelf Life UOMYear
Product MarketsElectrical Equipment Manufacturing
MaterialEmbossed Tin Plated Copper Foil
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/cm
