3M Products & Supplies

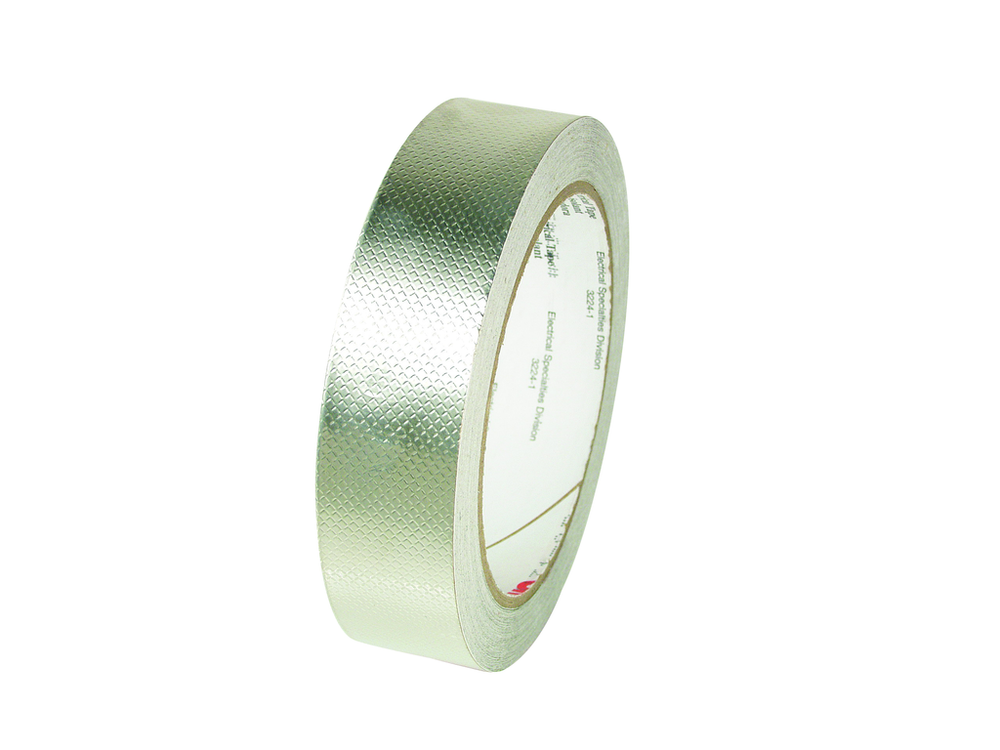

3M™ Embossed Tin-Plated Copper Foil EMI Shielding Tape 1345, 3-1/2 in x 60 yd, 3 in Paper Core, 3 Rolls/Case - 7010397209

Sold As: 3-Pack
SKU: 7010397209
MPN: 7010397209
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051125652308
3M ID: 80611088552
5 Digit UPC: 65230
$3,338.91 ($1112.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Embossed Tin Plated Copper EMI Shielding Tape 1345 is an EMI shielding tape with an acrylic adhesive. This flame retardant tape is designed for applications that require outstanding electrical conductivity from the application substrate through the adhesive to the backing. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Offers stable contact resistance and good shielding effectiveness
  • Embossed backing cuts through the layer of adhesive for establishing contact between the backing and the application substrate
  • Flame-retardant and suitable for grounding and EMI shielding in equipment, components and shielded rooms
  • Embossed, copper foil backing resists discoloration and oxidation
  • Offers outstanding solderability with tin-plated coating

Specifications

Shelf Life1825
Country of OriginTaiwan
Maximum Operating Temperature (Celsius)130.0
Elongation at Break100
Backing (Carrier) Thickness (Metric)0.035
MaterialEmbossed Tin Plated Copper Foil
Product MarketsElectrical Equipment Manufacturing
Product ColorTin
Backing (Carrier) Thickness (Metric) UOMmm
Adhesive TypeAcrylic
Overall Width (Metric) UOMmm
Shelf Life UOMYear
Maximum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) Thickness (Imperial)1.4
Tape GradeProfessional
Tensile Strength (Metric) UOMN/cm
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Overall Width (Imperial)3.5
Backing (Carrier) MaterialTin Plate Copper Foil, Embossed
Overall Width (Imperial) UOMin
Tensile Strength (Metric)44.0
Overall Width (Metric)88.9
ApplicationShielding
Backing (Carrier) Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric)0.1016
Total Tape Thickness without Liner (Metric) UOMmm
