3M™ EMI Absorber AB5010HF, 0.1 mm, 210 mm x 15 m Roll - 7100050118

SKU: 7100050118
MPN: 7100050118
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051131288508
3M ID: WX300944245
5 Digit UPC: 28850
$1,330.95 each
Hurry up! Current stock:

Product Description

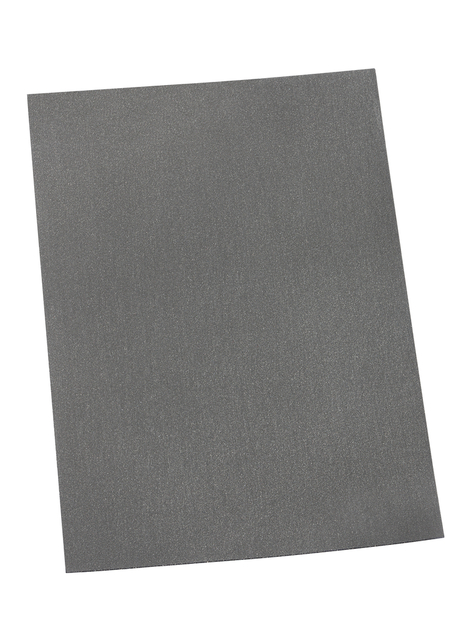

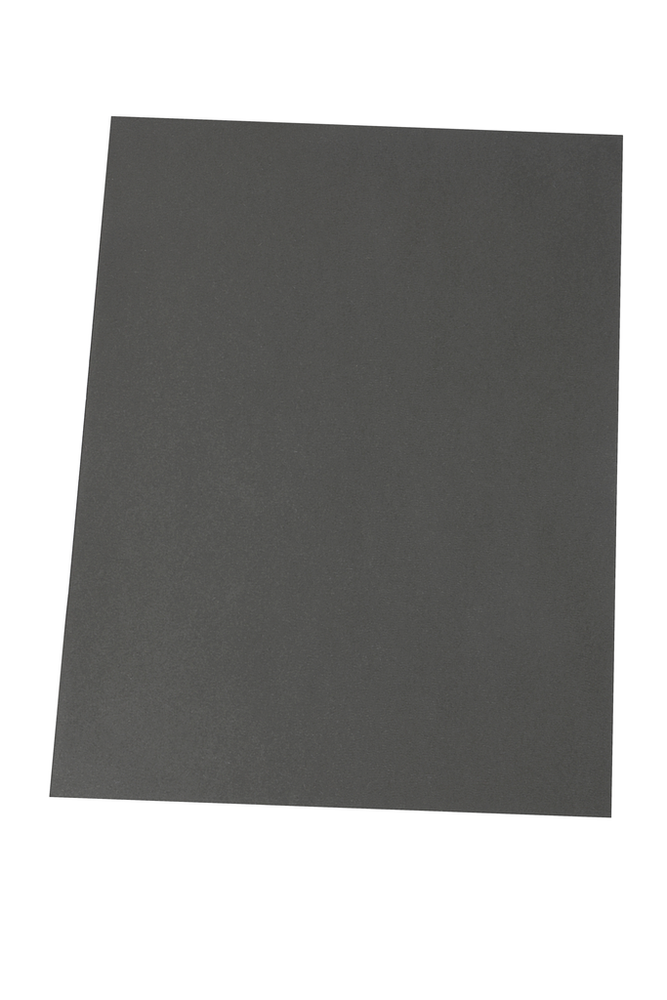

The 3M™ EMI Absorber AB5000HF Series is magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • Near-field absorber is excellent for frequencies from 800 MHz to 2 GHz
  • AB5100HF thickness offered with and without adhesive
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Polymer resin sheets are flexible for consistent coverage
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Operating frequency range is 300 MHz - 2 GHz
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Total Thickness (Metric)0.1
AdhesivePressure-sensitive Acrylic
Frequency Range300 MHz - 2 GHz
Magnetic Permeability55
Adhesive Thickness (Metric)0.0
Overall Width (Metric)210.0
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Imperial) UOMin
Total Thickness0.1 mm
Total Tape Thickness without Liner (Imperial)0.0
Overall Thickness (Imperial)3.937
Overall Length (Imperial)16.404
Overall Length (Metric) UOMm
Overall Thickness (Imperial) UOMmil
Overall Width (Metric) UOMmm
Adhesive Thickness (Imperial)0.0
Number of Adhesive Sides1
Overall Thickness (Metric)0.1
Overall Length (Metric)15.0
Overall Width (Imperial)8.268
Overall Length (Imperial) UOMyd
Overall Thickness (Metric) UOMmm
