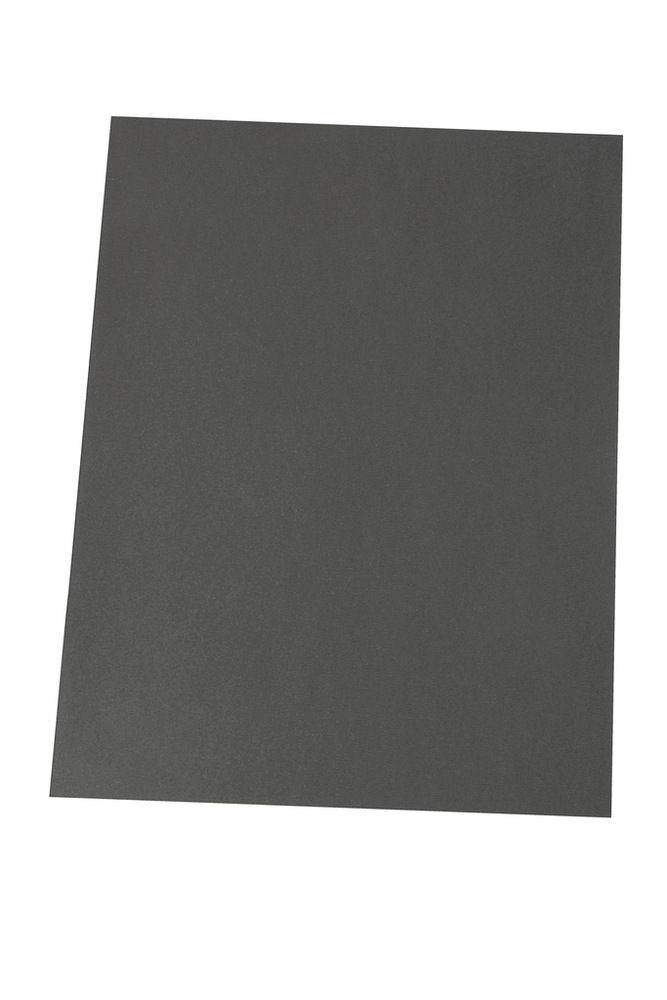

3M™ EMI Absorber AB5050HF, 0.5 mm, 210 mm x 15 m - 7100078590

SKU: 7100078590
MPN: 7100078590
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08806080036784
3M ID: WX300944211
5 Digit UPC: 3678
$1,843.21 each
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB5000HF Series is magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • AB5100HF thickness offered with and without adhesive
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Operating frequency range is 300 MHz - 2 GHz
  • Near-field absorber is excellent for frequencies from 800 MHz to 2 GHz
  • Polymer resin sheets are flexible for consistent coverage
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
Overall Length (Metric)15.0
Overall Width (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)0.0
Overall Thickness (Metric)0.5
Overall Thickness (Metric) UOMmm
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Adhesive Thickness (Metric)0.0
Total Thickness (Metric)0.5
Overall Thickness (Imperial)19.685
AdhesivePressure-sensitive Acrylic
Overall Width (Metric)210.0
Magnetic Permeability55
Frequency Range300 MHz - 2 GHz
Total Thickness0.5 mm
Overall Width (Imperial)8.268
Overall Length (Imperial)16.404
Number of Adhesive Sides1
Adhesive Thickness (Imperial)0.0
