3M Products & Supplies

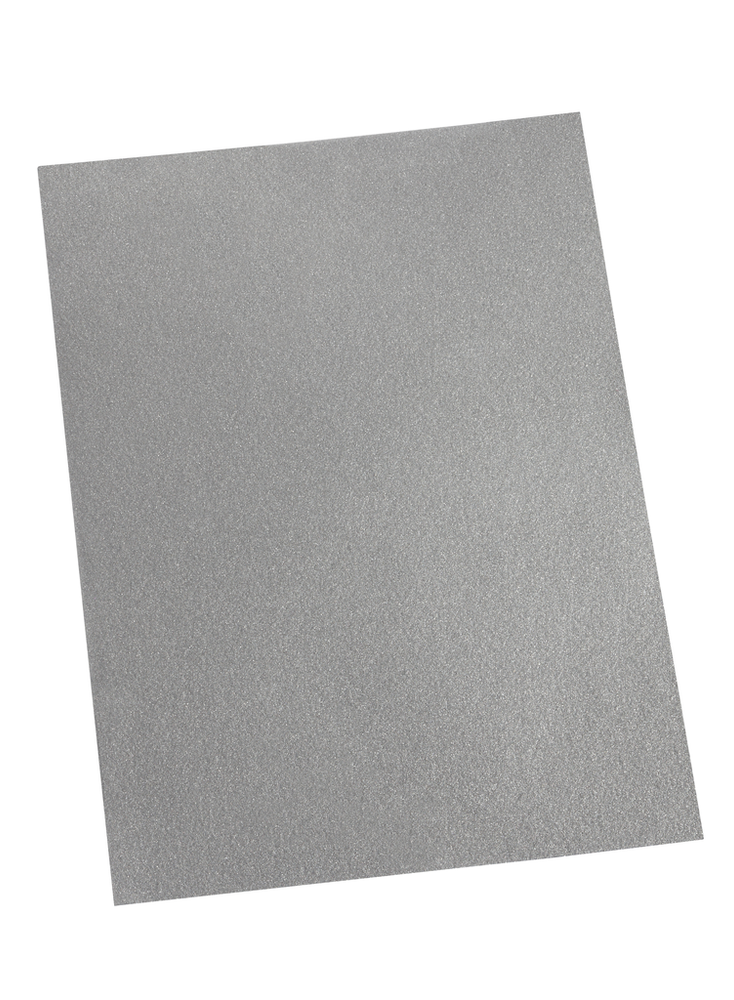

3M™ EMI Absorber AB7050HF, 210 mm x 297 mm - 7100084010

Sold As: 50-Pack
SKU: 7100084010
MPN: 7100084010
Stock Item: Stock items typically ship within 2-3 business days
UPC: 08806080038061
3M ID: WX300944146
5 Digit UPC: 3806
$4,411.48 ($88.23 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Removable liner makes material easy to handle
  • Polymer resin sheets are flexible for consistent coverage
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Target absorbing performance from 800 MHz - 2.5 GHz
  • Broad operating frequency of 300 MHz to 4 GHz
  • Filler consisting of soft metal flakes absorb noise into the polymer
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Number of Adhesive Sides1
Total Tape Thickness without Liner (Imperial)0.0
Overall Thickness (Imperial) UOMmil
Adhesive Thickness (Metric) UOMmm
Overall Width (Metric)210.0
Overall Length (Imperial) UOMin
Overall Length (Metric)297.0
Overall Thickness (Imperial)21.654
Total Thickness (Metric)0.55
Total Thickness0.55 mm
Magnetic Permeability110
Adhesive Thickness (Imperial)1.969
Overall Width (Metric) UOMmm
Overall Thickness (Metric)0.55
Overall Length (Metric) UOMmm
Overall Width (Imperial)8.268
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards
Overall Thickness (Metric) UOMmm
Frequency Range300 MHz - 2 GHz
Overall Length (Imperial)11.693
Overall Width (Imperial) UOMin
AdhesivePressure-sensitive Acrylic
Adhesive Thickness (Metric)0.05
