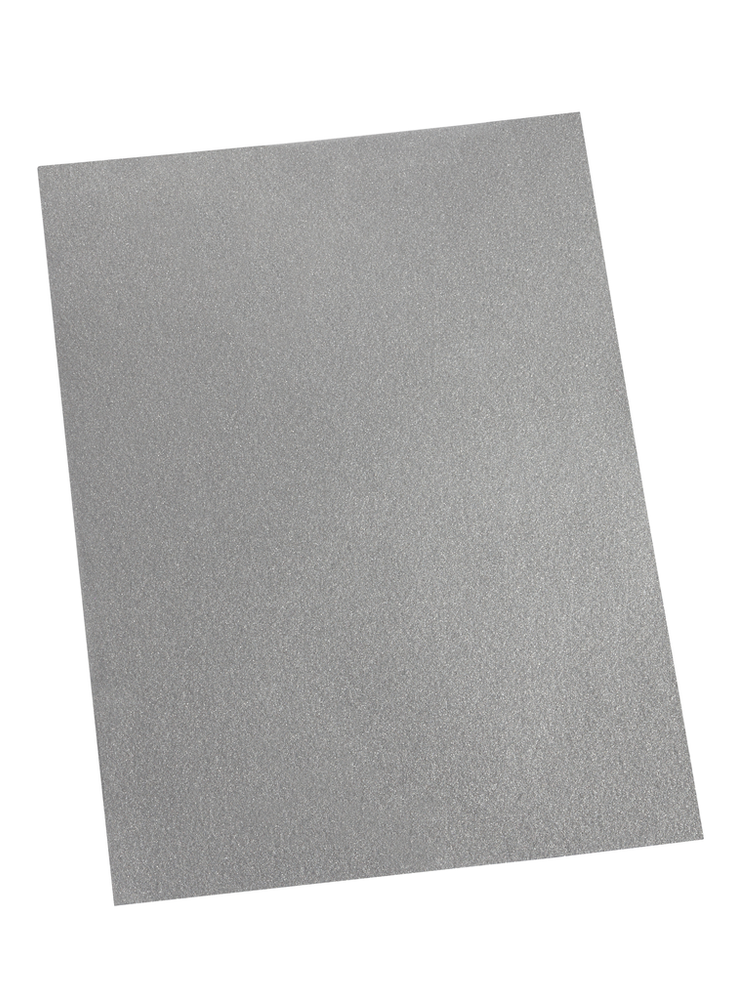

3M™ EMI Absorber AB7030HF, 210 mm x 297 mm - 7100078591

Sold As: 50-Pack
SKU: 7100078591
MPN: 7100078591
Stock Item: Stock items typically ship within 2-3 business days
UPC: 08806080036791
3M ID: WX300944153
5 Digit UPC: 3679
$3,769.57 ($75.39 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Target absorbing performance from 800 MHz - 2.5 GHz
  • Polymer resin sheets are flexible for consistent coverage
  • Broad operating frequency of 300 MHz to 4 GHz
  • Removable liner makes material easy to handle
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Filler consisting of soft metal flakes absorb noise into the polymer
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
AdhesivePressure-sensitive Acrylic
Magnetic Permeability110
Number of Adhesive Sides1
Frequency Range300 MHz - 2 GHz
Overall Width (Metric)210.0
Overall Width (Metric) UOMmm
Overall Thickness (Metric) UOMmm
Overall Width (Imperial)8.268
Overall Length (Imperial)11.693
Adhesive Thickness (Imperial)1.969
Overall Length (Metric) UOMmm
Adhesive Thickness (Metric) UOMmm
Total Thickness0.35 mm
Total Tape Thickness without Liner (Imperial)0.0
Overall Length (Imperial) UOMin
Overall Thickness (Metric)0.35
Total Thickness (Metric)0.35
Overall Length (Metric)297.0
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards
Adhesive Thickness (Metric)0.05
Overall Thickness (Imperial)13.78
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
