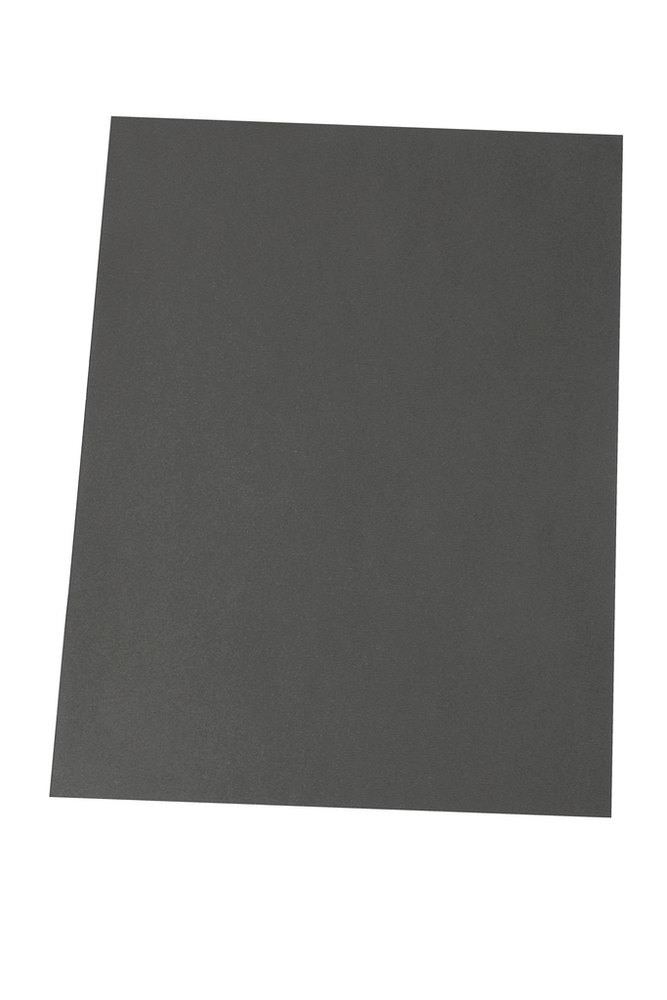

3M™ EMI Absorber AB5030HF, 0.3 mm, 210 mm x 297 mm - 7010405233

Sold As: 50-Pack
SKU: 7010405233
MPN: 7010405233
Lead Time: 49 working days.
UPC: 08806080063889
3M ID: WX300945895
5 Digit UPC: 6388
$1,825.78 ($36.52 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB5000HF Series is magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • Polymer resin sheets are flexible for consistent coverage
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • AB5100HF thickness offered with and without adhesive
  • Operating frequency range is 300 MHz - 2 GHz
  • Near-field absorber is excellent for frequencies from 800 MHz to 2 GHz
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Width (Imperial)8.268
Overall Thickness (Metric)0.3
Frequency Range300 MHz - 2 GHz
Overall Thickness (Imperial)11.811
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)0.0
Total Thickness (Metric)0.3
Magnetic Permeability55
Overall Thickness (Metric) UOMmm
Overall Length (Imperial)11.693
Overall Width (Metric)210.0
Adhesive Thickness (Imperial)0.0
Adhesive Thickness (Metric)0.0
Total Thickness0.3 mm
Overall Length (Metric) UOMmm
AdhesivePressure-sensitive Acrylic
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Thickness (Imperial) UOMmil
Overall Length (Metric)297.0
Number of Adhesive Sides1
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
