3M Products & Supplies

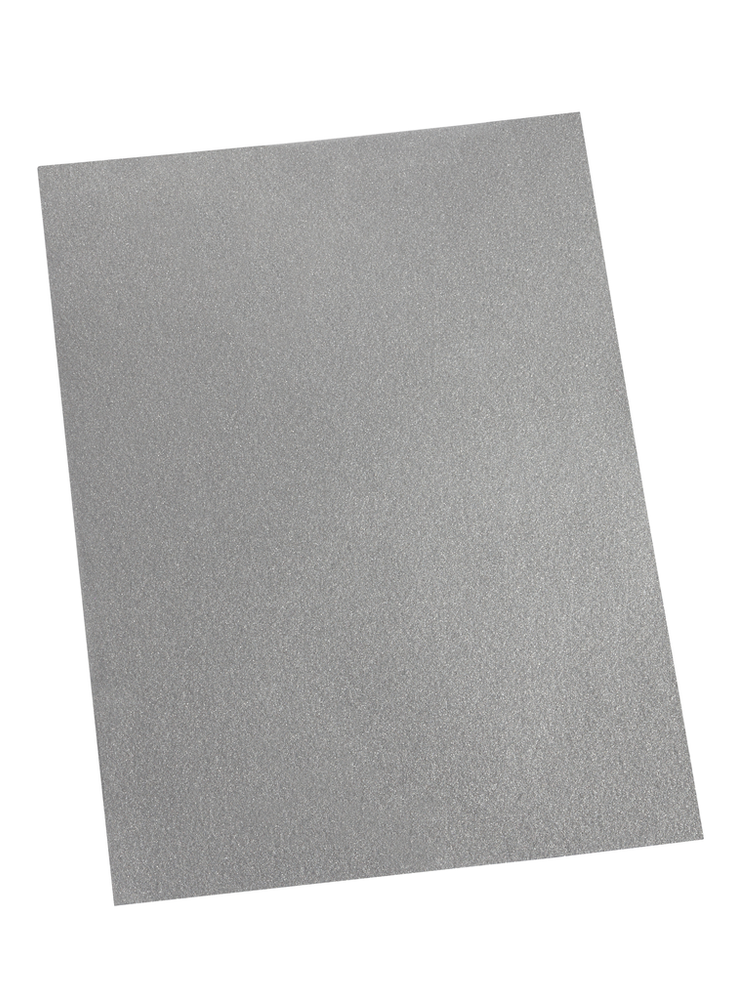

3M™ EMI Absorber AB7010HF, 210 mm x 297 mm - 7100057094

Sold As: 50-Pack
SKU: 7100057094
MPN: 7100057094
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051141415666
3M ID: WX300944179
5 Digit UPC: 41566
$2,080.92 ($41.62 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Broad operating frequency of 300 MHz to 4 GHz
  • Target absorbing performance from 800 MHz - 2.5 GHz
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Polymer resin sheets are flexible for consistent coverage
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Removable liner makes material easy to handle
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Adhesive Thickness (Imperial)1.181
Adhesive Thickness (Metric) UOMmm
Total Tape Thickness without Liner (Imperial)0.0
Overall Width (Metric)210.0
Total Thickness (Metric)0.13
Overall Thickness (Imperial) UOMmil
Frequency Range300 MHz - 2 GHz
Overall Width (Imperial) UOMin
Overall Thickness (Metric)0.13
Number of Adhesive Sides1
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards
Overall Thickness (Imperial)5.118
Overall Length (Metric) UOMmm
Overall Length (Imperial)11.693
Adhesive Thickness (Metric)0.03
Total Thickness0.13 mm
Overall Width (Imperial)8.268
Overall Length (Metric)297.0
Overall Thickness (Metric) UOMmm
AdhesivePressure-sensitive Acrylic
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Magnetic Permeability110
