3M Products & Supplies

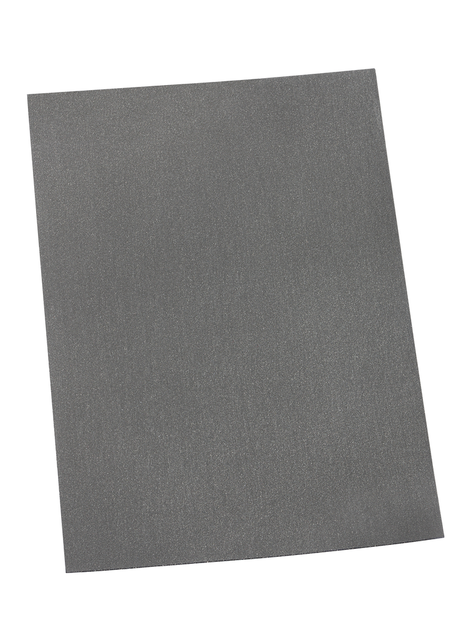

3M™ EMI Absorber AB5020HF 210 mm x 297 mm, 0.2 mm - 7010297940

Sold As: 50-Pack
SKU: 7010297940
MPN: 7010297940
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08806080063902
3M ID: WX300946315
5 Digit UPC: 6390
$1,929.58 ($38.59 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB5000HF Series is magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • AB5100HF thickness offered with and without adhesive
  • Near-field absorber is excellent for frequencies from 800 MHz to 2 GHz
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Operating frequency range is 300 MHz - 2 GHz
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Polymer resin sheets are flexible for consistent coverage
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Length (Metric) UOMmm
Overall Width (Metric) UOMmm
Overall Thickness (Imperial)7.874
Overall Thickness (Imperial) UOMmil
Adhesive Thickness (Imperial)0.0
Overall Width (Metric)210.0
Total Tape Thickness without Liner (Imperial)0.0
Total Thickness0.2 mm
Total Thickness (Metric)0.2
Adhesive Thickness (Metric)0.0
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMin
Number of Adhesive Sides1
Frequency Range300 MHz - 2 GHz
AdhesivePressure-sensitive Acrylic
Overall Thickness (Metric) UOMmm
Overall Thickness (Metric)0.2
Overall Length (Imperial)11.693
Magnetic Permeability55
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Length (Metric)297.0
Overall Width (Imperial)8.268
