3M Products & Supplies

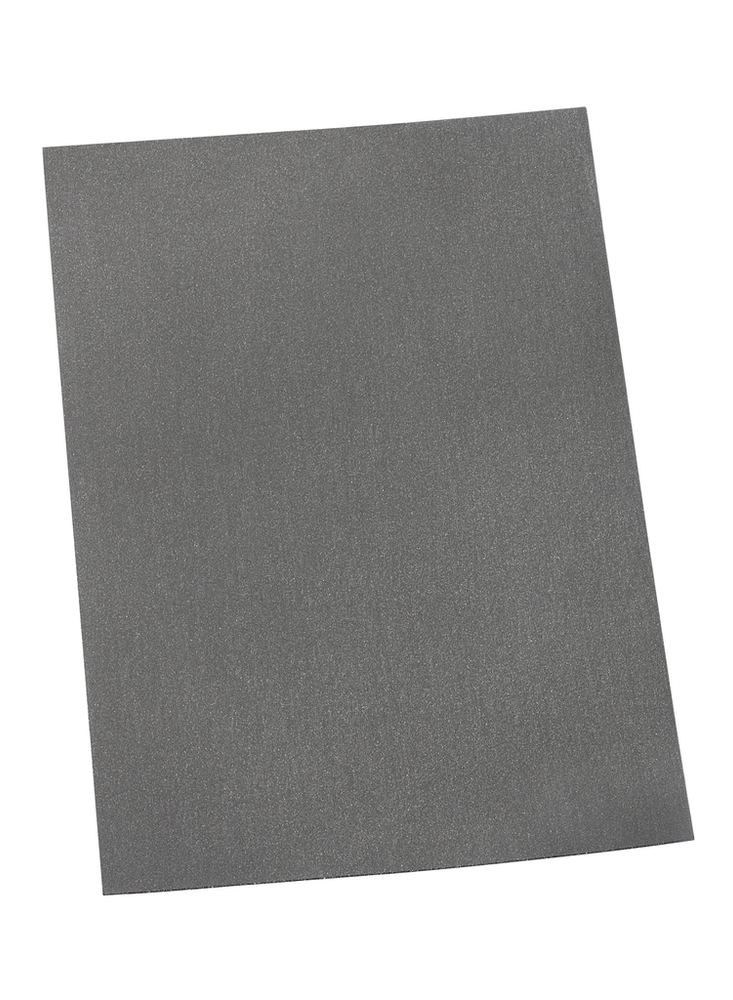

3M™ EMI Absorber AB5010SHF, 0.1 mm, 210 mm x 297 mm - 7100079804

Sold As: 500-Pack
SKU: 7100079804
MPN: 7100079804
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051131288515
3M ID: WX300944278
5 Digit UPC: 28851
$24,043.31 ($48.09 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB5000SHF Series is a magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz - 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Advanced EMI absorber vs AB5000HF series
  • Near-field absorber is excellent for frequencies from 800 MHz - 2 GHz
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Polymer resin sheets are flexible for consistent coverage
  • Operating frequency of 300 MHz - 2 GHz
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Width (Metric) UOMmm
Overall Length (Imperial)11.693
Overall Thickness (Metric)0.1
Overall Thickness (Imperial)3.937
Overall Thickness (Metric) UOMmm
Overall Length (Imperial) UOMin
Number of Adhesive Sides1
AdhesivePressure-sensitive Acrylic
Adhesive Thickness (Metric)0.0
Frequency Range800 MHz - 2 GHz
Total Tape Thickness without Liner (Imperial)0.0
Overall Length (Metric) UOMmm
Overall Width (Metric)210.0
Overall Thickness (Imperial) UOMmil
Overall Length (Metric)297.0
Overall Width (Imperial)8.268
Overall Width (Imperial) UOMin
Total Thickness0.1 mm
Adhesive Thickness (Imperial)0.0
Product UsageCables; Camera Modules; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Magnetic Permeability30
Total Thickness (Metric)0.1
