3M Products & Supplies

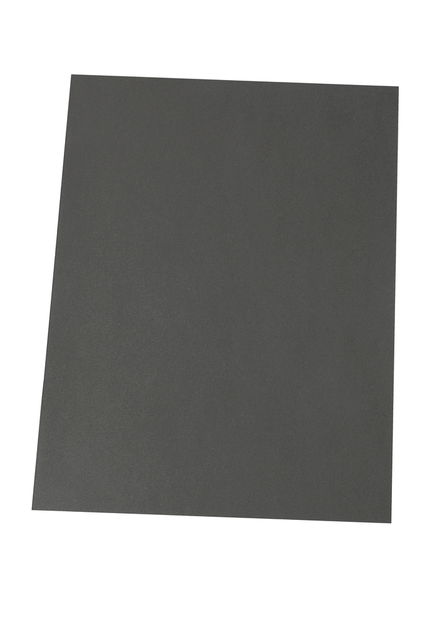

3M™ EMI Absorber AB5030SHF, 0.3 mm, 210 mm x 297 mm Sheet - 7100113412

Sold As: 50-Pack
SKU: 7100113412
MPN: 7100113412
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 08806080063865
3M ID: WX300944252
5 Digit UPC: 6386
$2,574.78 ($51.50 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB5000SHF Series is a magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz - 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Operating frequency of 300 MHz - 2 GHz
  • Advanced EMI absorber vs AB5000HF series
  • Near-field absorber is excellent for frequencies from 800 MHz - 2 GHz
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Polymer resin sheets are flexible for consistent coverage
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Thickness (Imperial) UOMmil
Adhesive Thickness (Metric)0.0
Overall Width (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)0.0
Overall Width (Metric) UOMmm
Overall Thickness (Metric)0.3
AdhesivePressure-sensitive Acrylic
Number of Adhesive Sides1
Overall Length (Imperial)11.693
Overall Thickness (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Width (Imperial)8.268
Total Thickness0.3 mm
Product UsageCables; Camera Modules; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Metric)210.0
Frequency Range800 MHz - 2 GHz
Total Thickness (Metric)0.3
Overall Length (Metric)297.0
Adhesive Thickness (Imperial)0.0
Overall Thickness (Imperial)11.811
Overall Length (Metric) UOMmm
Magnetic Permeability30
