3M Products & Supplies

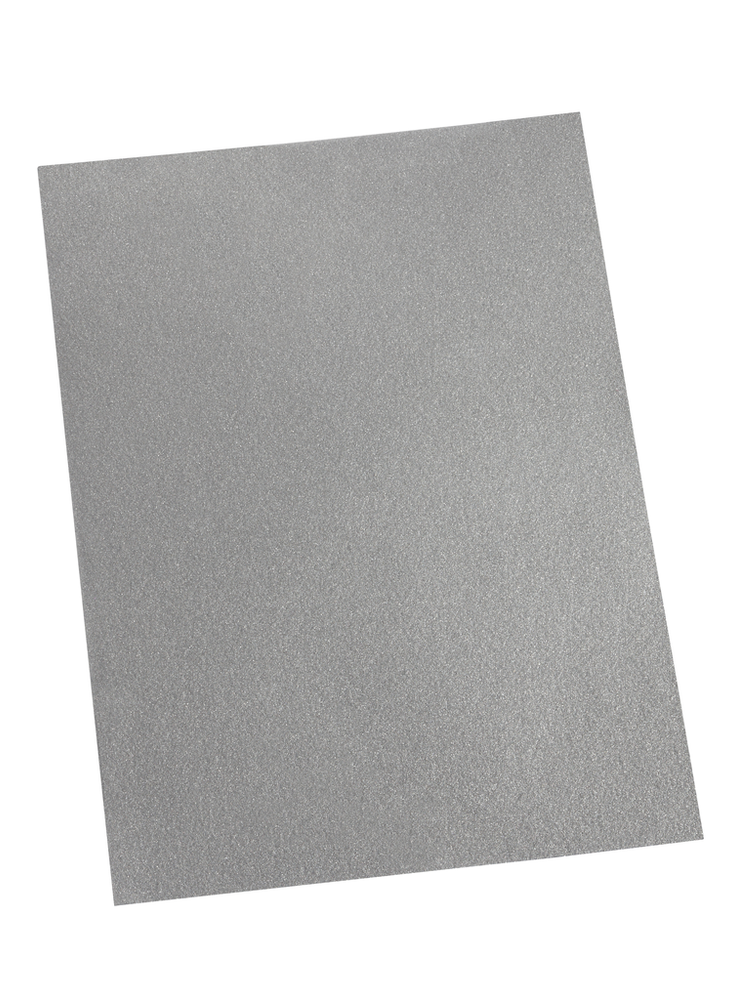

3M™ EMI Absorber AB7050HF without Adhesive, 210 mm x 297 mm - 7100416093

Sold As: 1000-Pack
SKU: 7100416093
MPN: 7100416093
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060486004
3M ID: UU014942831
$106,596.79 ($106.60 / Count)
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB7000HF Series is a high-permeability magnetic EMI absorber for near-field applications. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 300 MHz to 4 GHz. Target frequency range– the “sweet spot” for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. These sheet type EMI absorbers are excellent for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Removable liner makes material easy to handle
  • Broad operating frequency of 300 MHz to 4 GHz
  • Target absorbing performance from 800 MHz - 2.5 GHz
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Polymer resin sheets are flexible for consistent coverage
Spec Sheet



Downloads

Specifications

Overall Length (Metric)297.0
AdhesivePressure-sensitive Acrylic
Country of OriginSouth Korea
Frequency Range300 MHz - 2 GHz
Overall Width (Imperial)8.268
Overall Length (Imperial)11.693
Overall Length (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Width (Metric) UOMmm
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards
Overall Width (Imperial) UOMin
Overall Width (Metric)210.0
Number of Adhesive Sides1
Magnetic Permeability110
Adhesive Thickness (Metric) UOMmm
Overall Thickness (Metric)0.55
Total Tape Thickness without Liner (Imperial)0.0
Total Thickness0.55 mm
Overall Thickness (Imperial) UOMmil
Adhesive Thickness (Imperial)1.969
Total Thickness (Metric)0.55
Overall Thickness (Imperial)21.654
Adhesive Thickness (Metric)0.05
Overall Thickness (Metric) UOMmm
