3M Products & Supplies

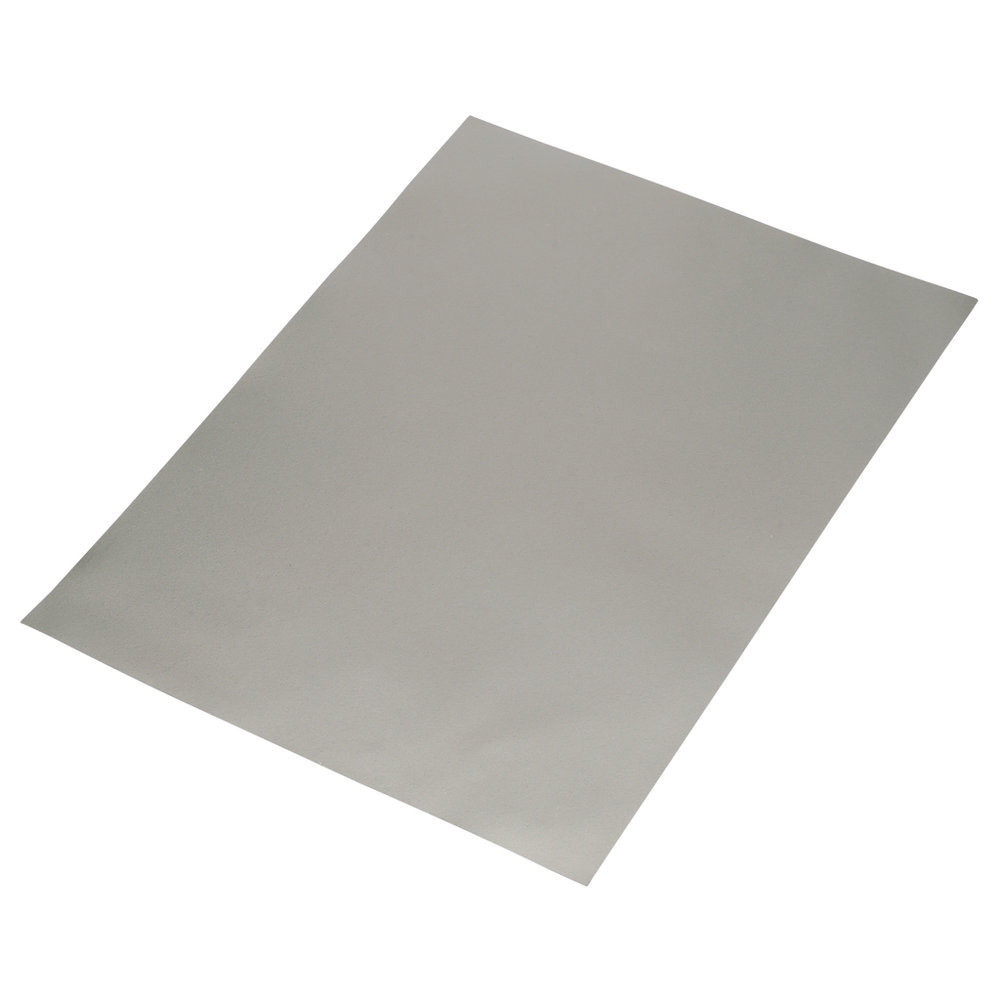

3M™ EMI Absorber AB7030E-WO 210 mm X 297 mm, Without Adhesive, 50 Sheets/Case - 7100336067

Sold As: 50-Pack
SKU: 7100336067
MPN: 7100336067
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060606310
3M ID: XN400522704
$3,071.61 ($61.43 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber AB7000E Series is an EMI suppression absorber for near-field applications. Consisting of a flexible polymer resin loaded with a filler of soft metal flakes, this sheet is excellent for EMI absorption at frequencies from 300 MHz to 4 GHz. Target frequency range – or the optimal range for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive, pressure-sensitive adhesive on one side makes application fast and easy, though this EMI absorber sheet is also available without adhesive. These sheet-type 3M EMI absorbers are great for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • High permeability
  • Long shelf life of 18 months
  • Broad operating frequency range from 300 MHz to 4 GHz
  • Multiple thicknesses available
  • Acrylic pressure-sensitive adhesive allows for easy application
  • Removable liner makes material easy to handle
Spec Sheet



Downloads

Specifications

Overall Thickness (Metric) UOMmm
Magnetic Permeability100 (3 MHz)
AdhesivePressure-sensitive Acrylic
Adhesive Thickness (Imperial)0.0
Overall Width (Imperial)8.268
Overall Thickness (Metric)0.35
Overall Length (Imperial)11.693
Number of Adhesive Sides0
Total Tape Thickness without Liner (Imperial)0.0
Overall Length (Metric)297.0
Country of OriginSouth Korea
Overall Length (Imperial) UOMin
Frequency Range300 MHz - 4 GHz
Overall Length (Metric) UOMmm
Total Thickness (Metric)0.35
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Smartphones; Tablets
Overall Thickness (Imperial)13.78
Magnetic LayerThickness = 0.30 ± 0.03 mm
Total Thickness0.35 mm
Overall Width (Metric) UOMmm
Adhesive Thickness (Metric)0.0
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Overall Width (Metric)210.0
