3M Products & Supplies

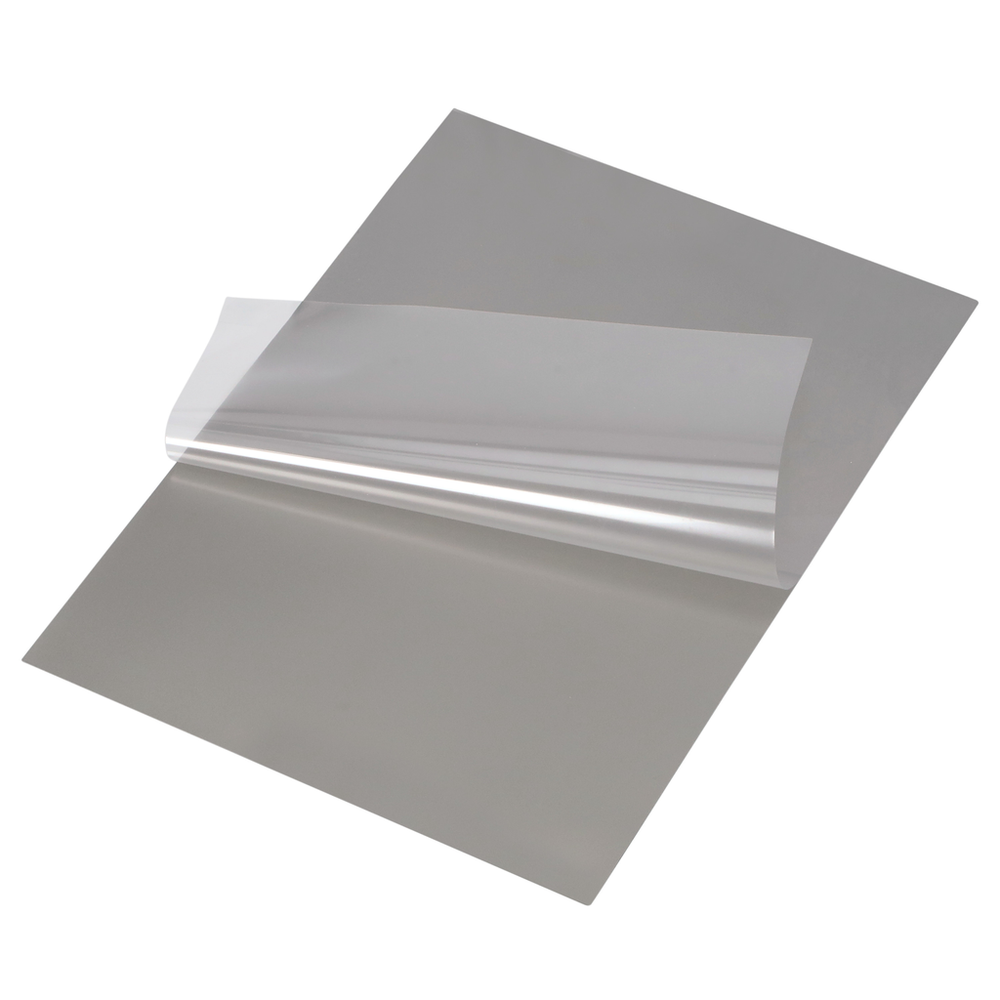

3M™ EMI Absorber AB8030-WO, 210 mm x 297 mm, Without Adhesive, 50 Sheets/Case - 7100340674

Sold As: 50-Pack
SKU: 7100340674
MPN: 7100340674
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060607812
3M ID: XN400526960
$2,757.82 ($55.16 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber AB8000 Series is a high-temperature magnetic near-field EMI absorber material for electronic applications from 300 MHz to 4 GHz. The composite material features a silicone carrier resin for stable solder reflow and strong attachment to FPCs along with magnetic fillers to suppress near-field EMI noise inside and around electronic devices and assemblies. The 3M™ EMI Absorber AB8000 series also functions as a magnetic shielding material for reducing EMI transmissions or reflections in the EM field.

Features

  • Higher temperature resistance (150°C) vs other 3M absorbers
  • 2-year shelf life
  • Available without adhesive
  • High-performance resin system for solder reflow stability
  • Absorbing performance from 300 MHz to 4 GHz
  • Multiple thicknesses
Spec Sheet



Downloads

Specifications

Number of Adhesive Sides0
Adhesive Thickness (Metric)0.0
Overall Thickness (Imperial)0.0
Country of OriginSouth Korea
Frequency Range300 MHz - 4 GHz
Product UsageAntennas; Cables; Camera Modules; Computers; Flexible Printed Circuits; Printed Circuit Boards; Sensors; Smartphones; Tablets
Overall Length (Metric)297.0
Magnetic LayerThickness = 300 μm (0.3 mm)
Overall Width (Metric)210.0
Total Thickness (Metric)0.0
Overall Length (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)0.0
Adhesive Thickness (Imperial)0.0
Overall Width (Imperial)8.268
Overall Thickness (Metric)0.0
Total Thickness0.0 NP
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
AdhesivePressure-sensitive Acrylic
Overall Length (Imperial)11.693
Overall Length (Metric) UOMmm
