3M Products & Supplies

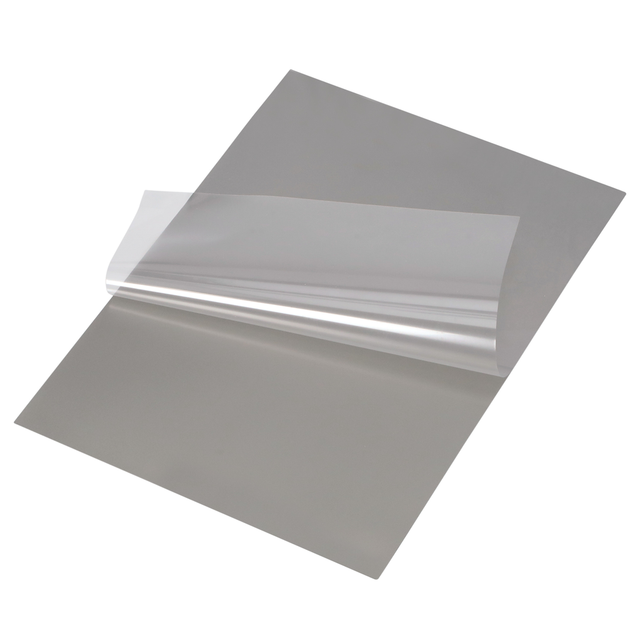

3M™ EMI Absorber AB7010E-WO 210 mm X 297 mm, Without Adhesive, 50 Sheets/Case - 7100336277

Sold As: 50-Pack
SKU: 7100336277
MPN: 7100336277
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060606334
3M ID: XN400522688
$1,517.70 ($30.35 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber AB7000E Series is an EMI suppression absorber for near-field applications. Consisting of a flexible polymer resin loaded with a filler of soft metal flakes, this sheet is excellent for EMI absorption at frequencies from 300 MHz to 4 GHz. Target frequency range – or the optimal range for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive, pressure-sensitive adhesive on one side makes application fast and easy, though this EMI absorber sheet is also available without adhesive. These sheet-type 3M EMI absorbers are great for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Broad operating frequency range from 300 MHz to 4 GHz
  • Removable liner makes material easy to handle
  • Acrylic pressure-sensitive adhesive allows for easy application
  • Long shelf life of 18 months
  • Multiple thicknesses available
  • High permeability
Spec Sheet



Downloads

Specifications

Frequency Range300 MHz - 4 GHz
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Smartphones; Tablets
Adhesive Thickness (Metric)0.0
Overall Thickness (Metric) UOMmm
Magnetic LayerThickness = 0.10 ± 0.02 mm
Overall Length (Imperial)11.693
Country of OriginSouth Korea
Overall Length (Metric) UOMmm
Overall Width (Metric)210.0
AdhesivePressure-sensitive Acrylic
Overall Width (Imperial) UOMin
Overall Thickness (Imperial)5.118
Magnetic Permeability100 (3 MHz)
Overall Length (Metric)297.0
Overall Thickness (Metric)0.13
Overall Length (Imperial) UOMin
Adhesive Thickness (Imperial)0.0
Overall Width (Imperial)8.268
Overall Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)0.0
Overall Width (Metric) UOMmm
Total Thickness (Metric)0.13
Number of Adhesive Sides0
Total Thickness0.13 mm
