3M Products & Supplies

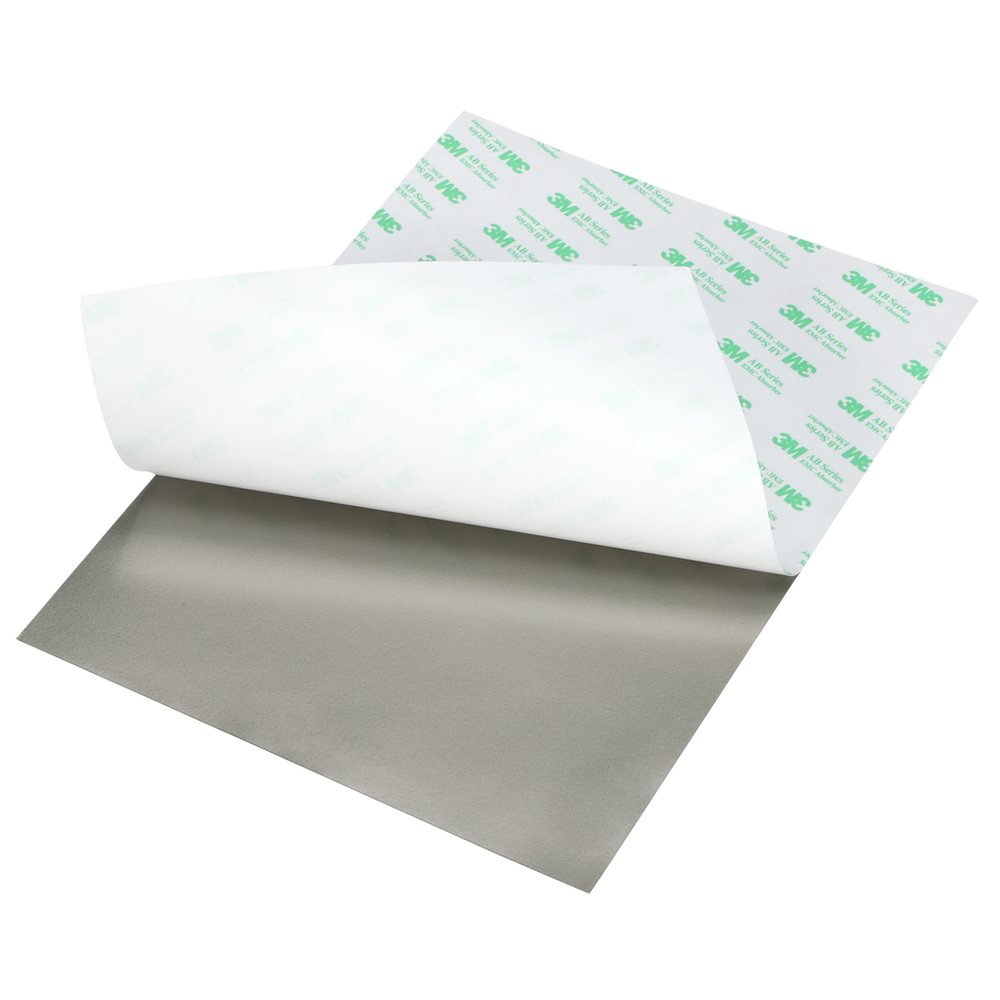

3M™ EMI Absorber AB7010E 210 mm x 297 mm, 50 Sheets/Case - 7100336256

Sold As: 50-Pack
SKU: 7100336256
MPN: 7100336256
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060606242
3M ID: XN400523371
$1,650.04 ($33.00 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber AB7000E Series is an EMI suppression absorber for near-field applications. Consisting of a flexible polymer resin loaded with a filler of soft metal flakes, this sheet is excellent for EMI absorption at frequencies from 300 MHz to 4 GHz. Target frequency range – or the optimal range for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive, pressure-sensitive adhesive on one side makes application fast and easy, though this EMI absorber sheet is also available without adhesive. These sheet-type 3M EMI absorbers are great for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Acrylic pressure-sensitive adhesive allows for easy application
  • Broad operating frequency range from 300 MHz to 4 GHz
  • High permeability
  • Removable liner makes material easy to handle
  • Long shelf life of 18 months
  • Multiple thicknesses available
Spec Sheet



Downloads

Specifications

Overall Length (Imperial)11.693
AdhesivePressure-sensitive Acrylic
Adhesive Thickness (Metric)0.03
Overall Thickness (Imperial)5.118
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Smartphones; Tablets
Magnetic Permeability100 (3 MHz)
Overall Width (Imperial)8.268
Total Thickness (Metric)0.13
Overall Length (Metric)297.0
Overall Thickness (Metric)0.13
Overall Width (Metric) UOMmm
Overall Thickness (Imperial) UOMmil
Country of OriginSouth Korea
Total Thickness0.13 mm
Number of Adhesive Sides1
Overall Width (Imperial) UOMin
Overall Thickness (Metric) UOMmm
Frequency Range300 MHz - 4 GHz
Adhesive Thickness (Metric) UOMmm
Overall Length (Imperial) UOMin
Overall Width (Metric)210.0
Overall Length (Metric) UOMmm
Adhesive Thickness (Imperial)1.181
Magnetic LayerThickness = 0.10 ± 0.02 mm
Total Tape Thickness without Liner (Imperial)0.0
