3M Products & Supplies

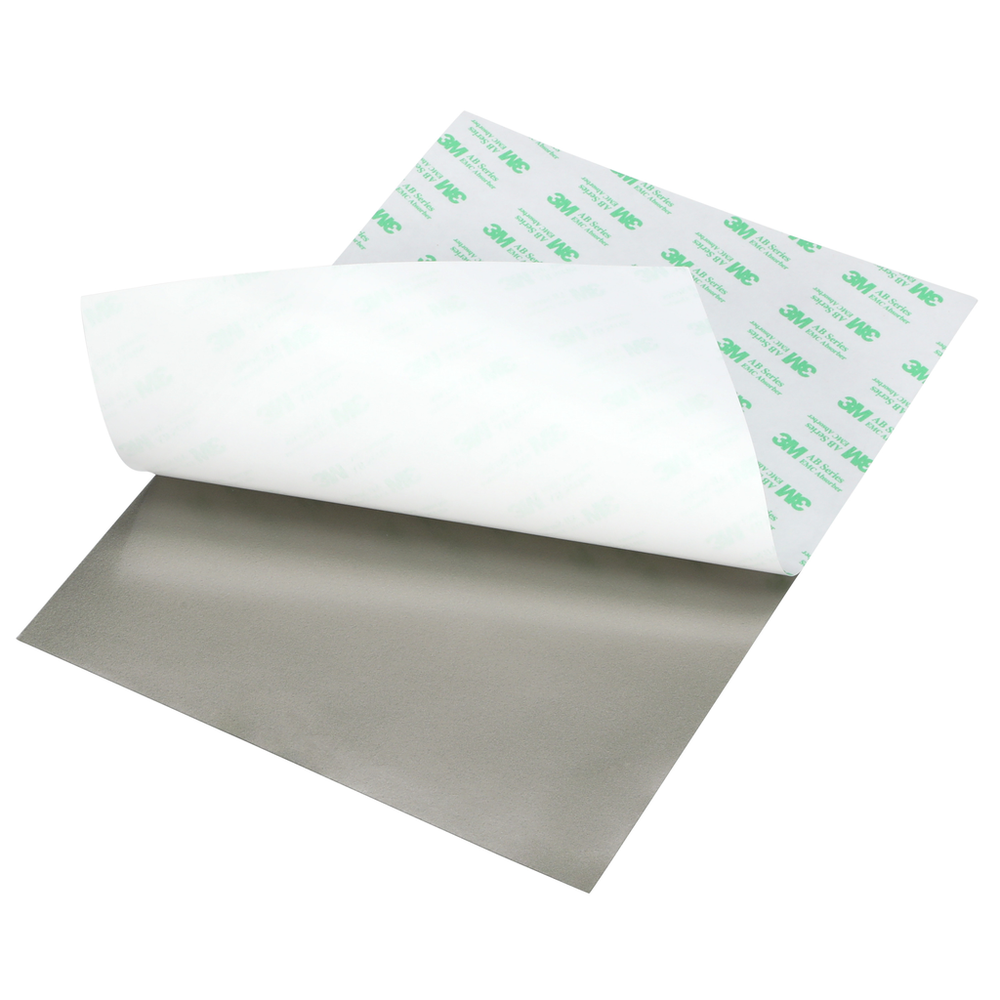

3M™ EMI Absorber AB7020E 210 mm x 297 mm, 50 Sheets/Case - 7100336152

Sold As: 50-Pack
SKU: 7100336152
MPN: 7100336152
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060606235
3M ID: XN400523389
$2,612.98 ($52.26 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber AB7000E Series is an EMI suppression absorber for near-field applications. Consisting of a flexible polymer resin loaded with a filler of soft metal flakes, this sheet is excellent for EMI absorption at frequencies from 300 MHz to 4 GHz. Target frequency range – or the optimal range for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive, pressure-sensitive adhesive on one side makes application fast and easy, though this EMI absorber sheet is also available without adhesive. These sheet-type 3M EMI absorbers are great for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Removable liner makes material easy to handle
  • Long shelf life of 18 months
  • Acrylic pressure-sensitive adhesive allows for easy application
  • Broad operating frequency range from 300 MHz to 4 GHz
  • High permeability
  • Multiple thicknesses available
Spec Sheet



Downloads

Specifications

Total Tape Thickness without Liner (Imperial)0.0
Overall Thickness (Imperial) UOMmil
Overall Length (Imperial)11.693
Overall Width (Imperial)8.268
Adhesive Thickness (Imperial)1.969
Adhesive Thickness (Metric)0.05
Overall Length (Metric) UOMmm
Overall Thickness (Metric) UOMmm
Overall Width (Metric)210.0
Adhesive Thickness (Metric) UOMmm
Overall Width (Imperial) UOMin
Number of Adhesive Sides1
Total Thickness0.25 mm
Overall Length (Metric)297.0
Overall Length (Imperial) UOMin
Frequency Range300 MHz - 4 GHz
Magnetic LayerThickness = 0.20 ± 0.03 mm
Country of OriginSouth Korea
Overall Width (Metric) UOMmm
Overall Thickness (Imperial)9.843
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Smartphones; Tablets
Magnetic Permeability100 (3 MHz)
Total Thickness (Metric)0.25
Overall Thickness (Metric)0.25
AdhesivePressure-sensitive Acrylic
