3M Products & Supplies

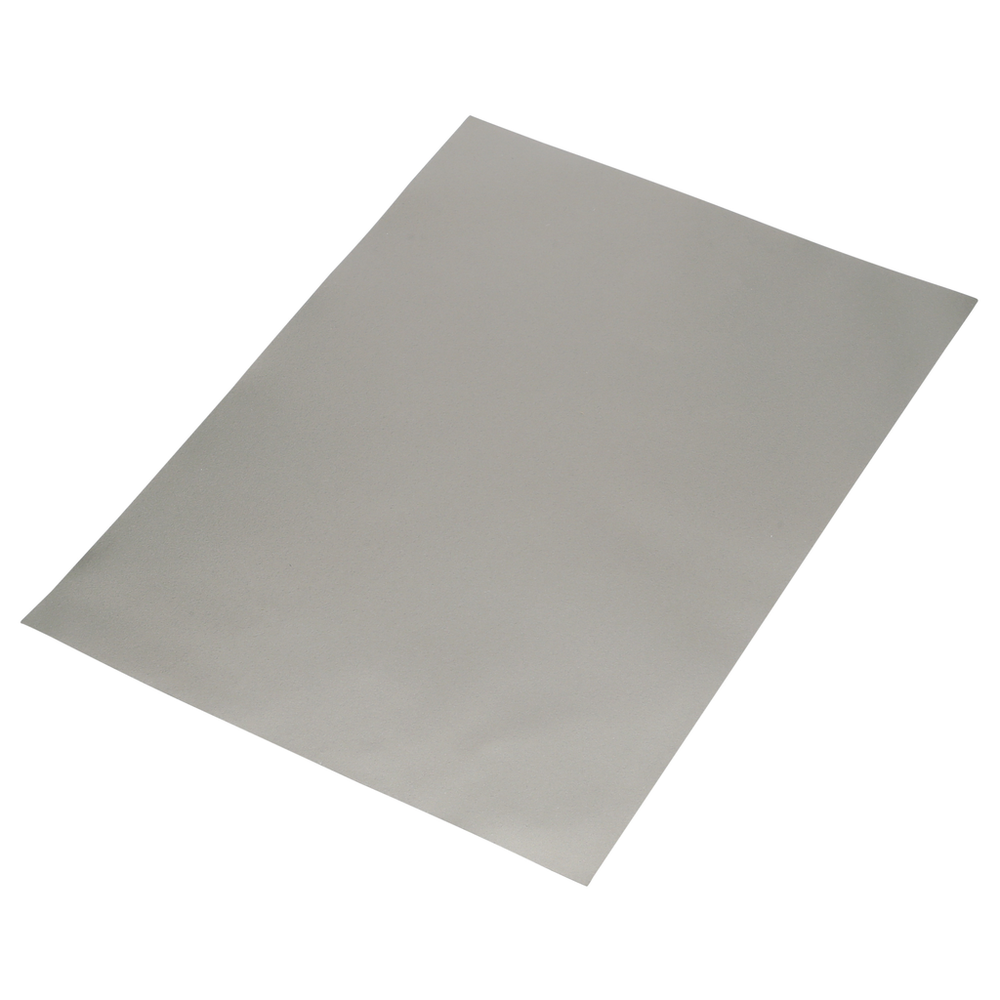

3M™ EMI Absorber AB7020E-WO 210 mm X 297 mm, Without Adhesive, 50 Sheets/Case - 7100336293

Sold As: 50-Pack
SKU: 7100336293
MPN: 7100336293
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00068060606327
3M ID: XN400522696
$2,403.93 ($48.08 / Count)
Hurry up! Current stock:

Product Description

3M™ EMI Absorber AB7000E Series is an EMI suppression absorber for near-field applications. Consisting of a flexible polymer resin loaded with a filler of soft metal flakes, this sheet is excellent for EMI absorption at frequencies from 300 MHz to 4 GHz. Target frequency range – or the optimal range for peak performance – is 800 MHz - 2.5 GHz. An acrylic non-conductive, pressure-sensitive adhesive on one side makes application fast and easy, though this EMI absorber sheet is also available without adhesive. These sheet-type 3M EMI absorbers are great for absorbing near-field EMI inside and around electronic devices and assemblies.

Features

  • Broad operating frequency range from 300 MHz to 4 GHz
  • Long shelf life of 18 months
  • Multiple thicknesses available
  • Removable liner makes material easy to handle
  • High permeability
  • Acrylic pressure-sensitive adhesive allows for easy application
Spec Sheet



Downloads

Specifications

Overall Length (Metric) UOMmm
Frequency Range300 MHz - 4 GHz
Product UsageAntennas; Camera Modules; Computers; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Smartphones; Tablets
Overall Length (Imperial) UOMin
Total Tape Thickness without Liner (Imperial)0.0
Overall Width (Imperial)8.268
Overall Thickness (Imperial) UOMmil
Total Thickness0.25 mm
Number of Adhesive Sides0
Magnetic Permeability100 (3 MHz)
AdhesivePressure-sensitive Acrylic
Overall Thickness (Metric)0.25
Adhesive Thickness (Imperial)0.0
Overall Length (Imperial)11.693
Overall Width (Metric) UOMmm
Country of OriginSouth Korea
Adhesive Thickness (Metric)0.0
Overall Width (Imperial) UOMin
Overall Width (Metric)210.0
Overall Thickness (Imperial)9.843
Magnetic LayerThickness = 0.20 ± 0.03 mm
Total Thickness (Metric)0.25
Overall Thickness (Metric) UOMmm
Overall Length (Metric)297.0
