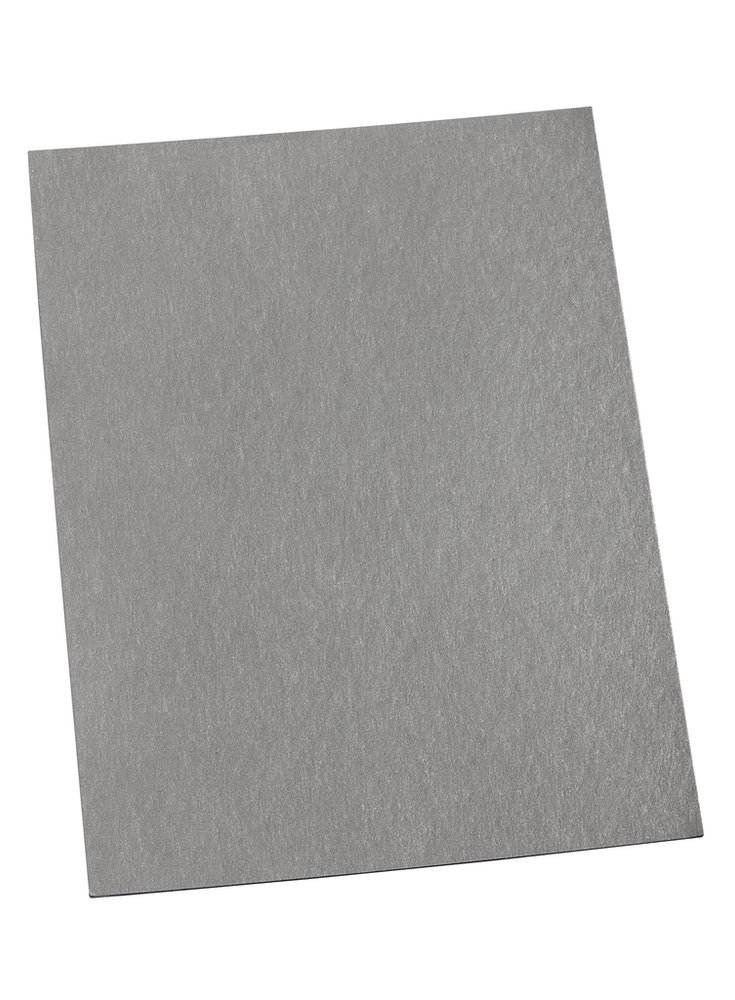

3M™ EMI Absorber AB5100HF, 1.0 mm, 210 mm x 10 m, 1 Roll/Case - 7100025757

SKU: 7100025757
MPN: 7100025757
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00051141415673
3M ID: WX300944195
5 Digit UPC: 41567
$1,728.66 each
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB5000HF Series is magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • Operating frequency range is 300 MHz - 2 GHz
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • AB5100HF thickness offered with and without adhesive
  • Near-field absorber is excellent for frequencies from 800 MHz to 2 GHz
  • Polymer resin sheets are flexible for consistent coverage
  • Acrylic pressure sensitive adhesive makes for fast, simple application
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Total Thickness (Metric)1.0
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Overall Thickness (Imperial) UOMmil
Overall Length (Metric)10.0
Overall Length (Imperial)10.936
Number of Adhesive Sides1
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Magnetic Permeability55
Overall Thickness (Imperial)39.37
Overall Thickness (Metric)1.0
Total Tape Thickness without Liner (Imperial)0.0
Overall Width (Metric)210.0
AdhesivePressure-sensitive Acrylic
Frequency Range300 MHz - 2 GHz
Total Thickness1.0 mm
Overall Width (Imperial)8.268
Adhesive Thickness (Metric)0.0
Overall Length (Metric) UOMm
Adhesive Thickness (Imperial)0.0
