3M Products & Supplies

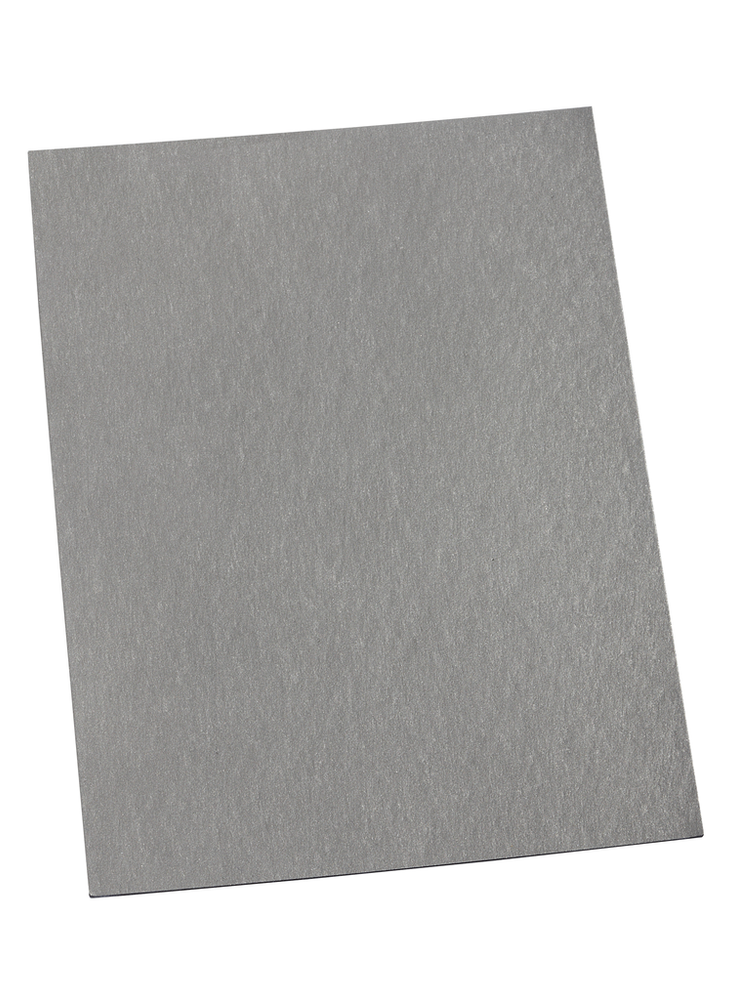

3M™ EMI Absorber AB5100HF, 1.0 mm, 210 mm x 10 m No-Adhesive Roll - 7010321494

SKU: 7010321494
MPN: 7010321494
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 58887862957317
3M ID: WX300948188
5 Digit UPC: 95731
$1,728.66 each
Hurry up! Current stock:

Product Description

The 3M™ EMI Absorber AB5000HF Series is magnetic EMI absorber with good attenuation at target frequencies. It consists of flexible polymer resin loaded with a filler of soft metal flakes for excellent absorption at frequencies from 800 MHz to 2 GHz. An acrylic non-conductive pressure-sensitive adhesive on one side makes applying the material easy and efficient. This sheet type EMI absorbers are excellent for near-field and cavity resonance applications inside electronic devices and enclosures.

Features

  • Operating frequency range is 300 MHz - 2 GHz
  • Acrylic pressure sensitive adhesive makes for fast, simple application
  • Filler consisting of soft metal flakes absorb noise into the polymer
  • Near-field absorber is excellent for frequencies from 800 MHz to 2 GHz
  • Polymer resin sheets are flexible for consistent coverage
  • AB5100HF thickness offered with and without adhesive
Spec Sheet



Downloads

Specifications

Country of OriginSouth Korea
Overall Width (Imperial) UOMin
Number of Adhesive Sides1
Overall Thickness (Metric)1.0
AdhesivePressure-sensitive Acrylic
Overall Width (Metric)210.0
Adhesive Thickness (Imperial)0.0
Adhesive Thickness (Metric)0.0
Overall Thickness (Imperial)39.37
Total Tape Thickness without Liner (Imperial)0.0
Magnetic Permeability55
Product UsageAntennas; Cables; Display Chip on Flex; Flexible Printed Circuits; Printed Circuit Boards; Sensors
Overall Width (Metric) UOMmm
Frequency Range300 MHz - 2 GHz
Overall Width (Imperial)8.268
Total Thickness1.0 mm
Overall Length (Metric)10.0
Overall Thickness (Imperial) UOMmil
Overall Length (Imperial) UOMyd
Total Thickness (Metric)1.0
Overall Length (Imperial)10.936
Overall Thickness (Metric) UOMmm
Overall Length (Metric) UOMm
