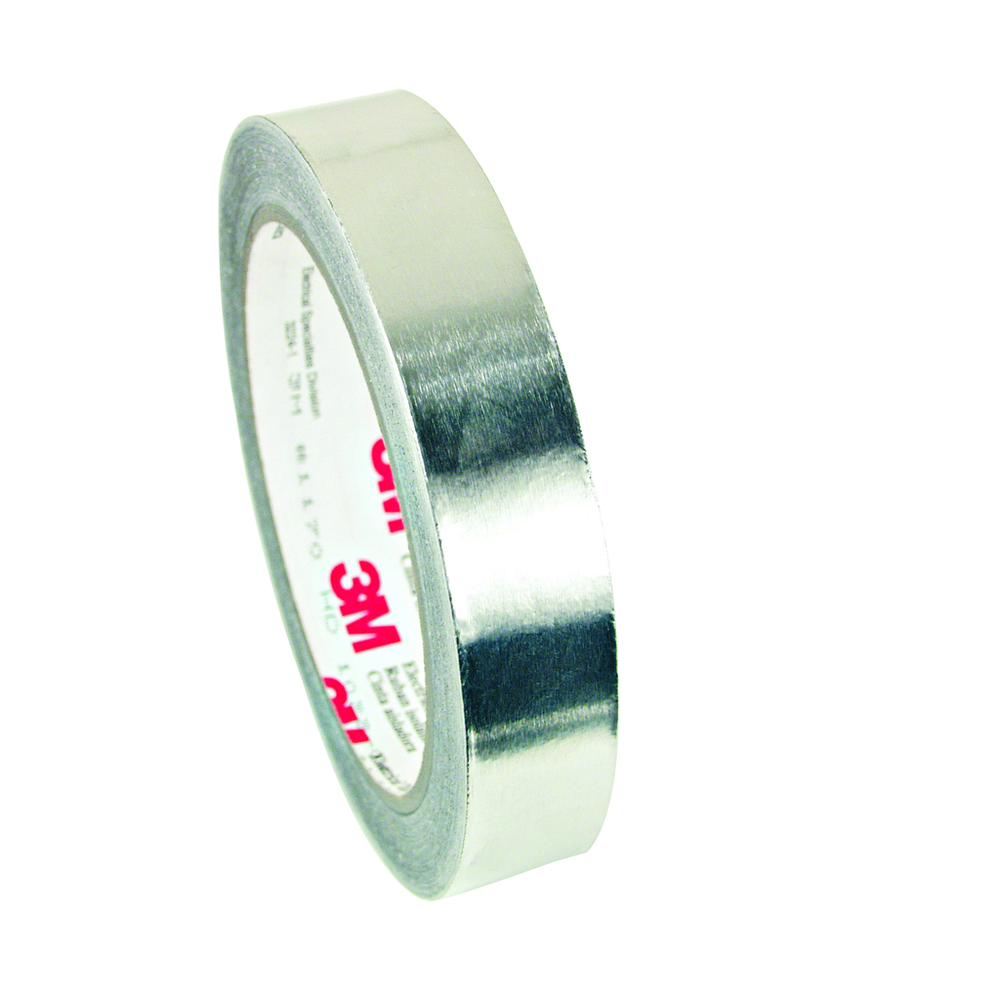

3M™ EMI Aluminum Foil Shielding Tape 1170, 1/4 in x 18 yd, 36 Rolls/Case - 7010398769

Sold As: 36-Pack
SKU: 7010398769
MPN: 7010398769
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138496296
3M ID: 80610882088
5 Digit UPC: 49629
$798.60 ($22.18 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.

Features

  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Typical shielding effectiveness is above 85 dB, 1MHz to GHz
  • Rated for 600V applications
  • Unique adhesive creates secure contact with the application surface
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Maximum Operating Temperature (Celsius) UOMDegree
ApplicationShielding
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric)16.5
Product ColorSilver
Overall Length (Imperial)18.0
Overall Width (Imperial)0.25
Overall Width (Imperial) UOMin
Specifications MetRoHS 2011/65/EU, UL Recognized
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) MaterialAluminum
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)-40.0
Rolls per Case36.0
Shelf Life UOMYear
Tensile Strength (Imperial)20.0
Tensile Strength (Imperial) UOMlb/in
Adhesive TypeConductive Acrylic
Backing (Carrier) Thickness (Imperial)2.0
Overall Width (Metric) UOMmm
Overall Width (Metric)6.35
Shielding Effectiveness75.0
IndustriesElectronics
Maximum Operating Temperature (Fahrenheit)266.0
Maximum Operating Temperature (Celsius)130.0
Overall Length (Metric) UOMm
Backing MaterialAluminum; Aluminum Foil
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.051
Product MarketsElectrical Equipment Manufacturing
