3M Products & Supplies

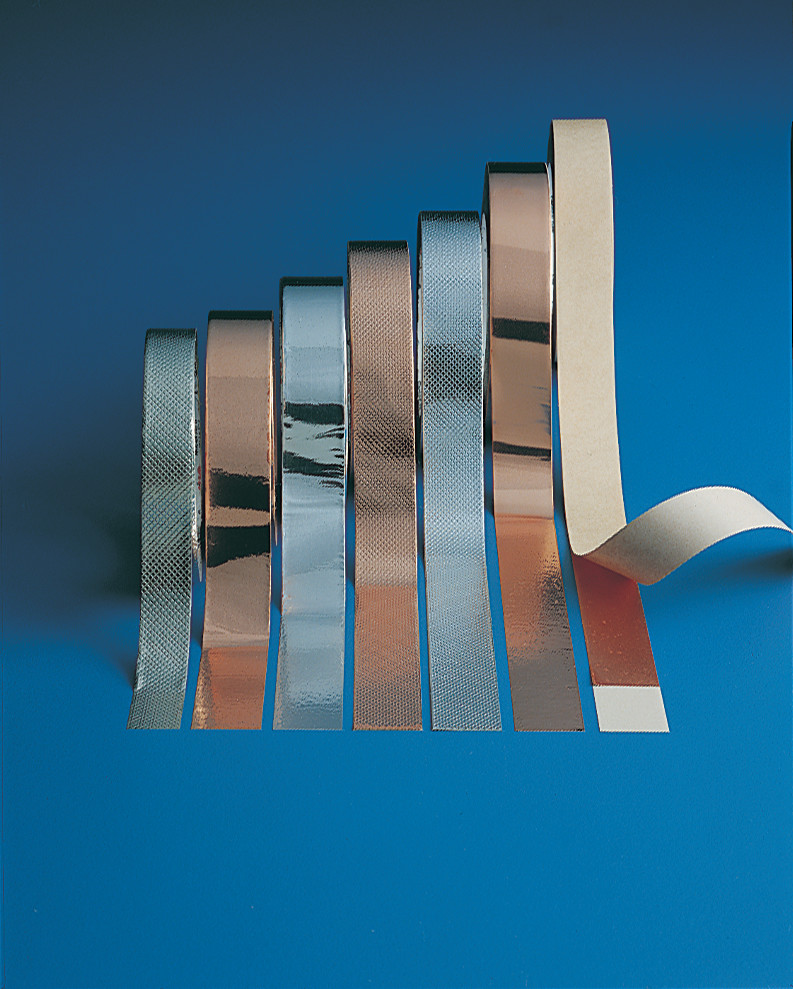

3M™ EMI Aluminum Foil Shielding Tape 1170, 1/2 in x 18 yd, 18 Rolls/Case - 7000132695

Sold As: 18-Pack
SKU: 7000132695
MPN: 7000132695
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138490652
3M ID: 80610875546
5 Digit UPC: 49065
$788.08 ($43.78 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.

Features

  • Flame-retardant
  • Rated for 600V applications
  • Suitable for EMI shielding, grounding and static charge draining
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Unique adhesive creates secure contact with the application surface
  • Typical shielding effectiveness is above 85 dB, 1MHz to GHz
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Maximum Operating Temperature (Fahrenheit)266.0
Backing (Carrier) Thickness (Metric)0.051
Maximum Operating Temperature (Celsius) UOMDegree
Shielding Effectiveness75.0
Minimum Operating Temperature (Fahrenheit) UOMDegree
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Length (Imperial)18.0
Overall Length (Metric)16.5
Maximum Operating Temperature (Fahrenheit) UOMDegree
Overall Length (Imperial) UOMyd
Backing (Carrier) Thickness (Imperial)2.0
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) MaterialAluminum
Tensile Strength (Imperial) UOMlb/in
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Adhesive TypeConductive Acrylic
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Width (Metric)12.7
Product ColorSilver
Overall Width (Imperial)0.5
Overall Width (Imperial) UOMin
ApplicationShielding
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric) UOMmm
Backing MaterialAluminum; Aluminum Foil
Maximum Operating Temperature (Celsius)130.0
IndustriesElectronics
Tensile Strength (Imperial)20.0
Overall Length (Metric) UOMm
Shelf Life UOMYear
