3M Products & Supplies

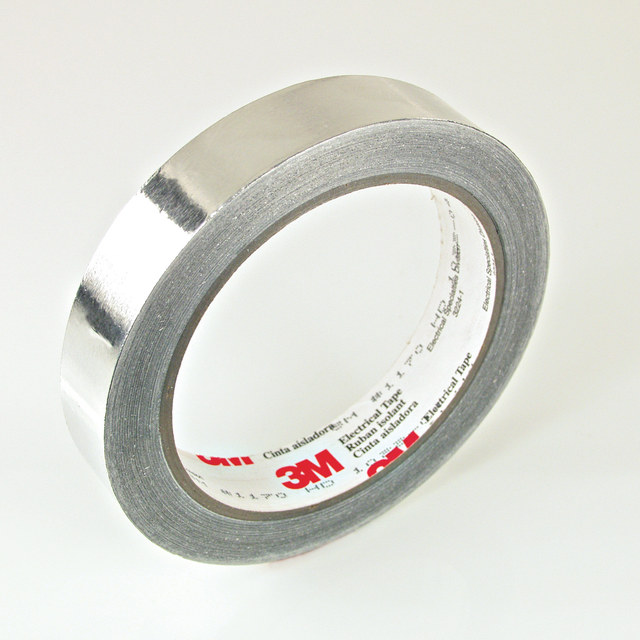

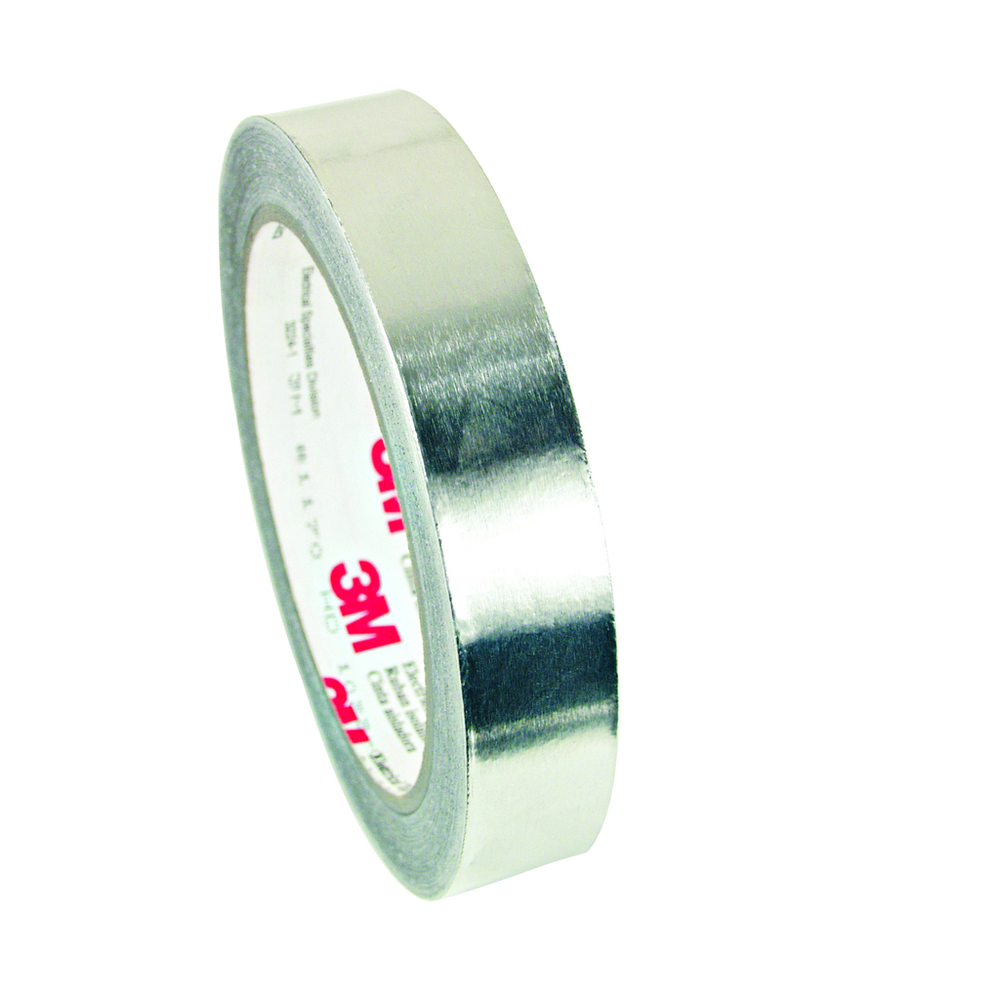

3M™ EMI Aluminum Foil Shielding Tape 1170, 1 in x 18 yd, 9 Rolls/Case - 7000132167

Sold As: 9-Pack
SKU: 7000132167
MPN: 7000132167
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007274643
3M ID: 80011170026
5 Digit UPC: 27464
$789.63 ($87.74 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.

Features

  • Unique adhesive creates secure contact with the application surface
  • Rated for 600V applications
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Typical shielding effectiveness is above 85 dB, 1MHz to GHz
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Length (Metric)16.5
Overall Width (Imperial) UOMin
Overall Length (Imperial) UOMyd
Overall Width (Metric)25.4
IndustriesElectronics
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Length (Imperial)18.0
Maximum Operating Temperature (Celsius)130.0
ApplicationShielding
Rolls per Case9.0
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.051
Maximum Operating Temperature (Fahrenheit)266.0
Backing (Carrier) MaterialAluminum
Backing (Carrier) Thickness (Imperial)2.0
Maximum Operating Temperature (Celsius) UOMDegree
Product MarketsElectrical Equipment Manufacturing
Shielding Effectiveness75.0
Overall Length (Metric) UOMm
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Product ColorSilver
Minimum Operating Temperature (Fahrenheit)-40.0
Tensile Strength (Imperial)20.0
Overall Width (Imperial)1.0
Overall Width (Metric) UOMmm
Backing MaterialAluminum; Aluminum Foil
Tensile Strength (Imperial) UOMlb/in
Adhesive TypeConductive Acrylic
Minimum Operating Temperature (Celsius)-40.0
Shelf Life UOMYear
