3M Products & Supplies

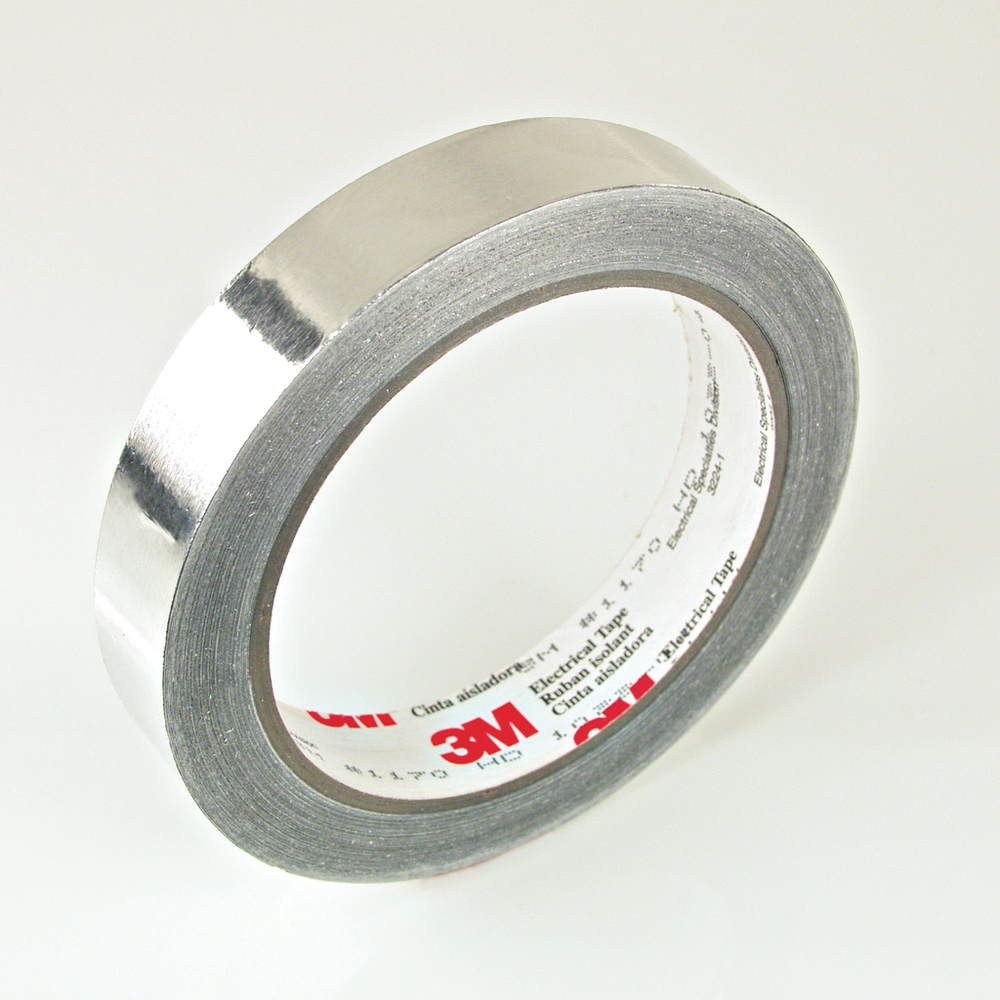

3M™ EMI Aluminum Foil Shielding Tape 1170, 7.7 in x 18 yd Bulk, 1 Roll/Case - 7010319936

SKU: 7010319936
MPN: 7010319936
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128609941
3M ID: 80611613193
5 Digit UPC: 60994
$704.93 each
Hurry up! Current stock:

Product Description

3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.

Features

  • Unique adhesive creates secure contact with the application surface
  • Flame-retardant
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Suitable for EMI shielding, grounding and static charge draining
  • Rated for 600V applications
  • Typical shielding effectiveness is above 85 dB, 1MHz to GHz
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Overall Width (Imperial) UOMin
Minimum Operating Temperature (Fahrenheit) UOMDegree
IndustriesElectronics
Product MarketsElectrical Equipment Manufacturing
Tensile Strength (Imperial) UOMlb/in
Adhesive TypeConductive Acrylic
Maximum Operating Temperature (Fahrenheit)266.0
Backing (Carrier) Thickness (Imperial)2.0
Minimum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)195.58
Maximum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Shelf Life UOMYear
Overall Width (Imperial)7.7
Shielding Effectiveness75.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Backing (Carrier) Thickness (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.051
Overall Width (Metric) UOMmm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Imperial) UOMmil
Tensile Strength (Imperial)20.0
Backing (Carrier) MaterialAluminum
Maximum Operating Temperature (Celsius)130.0
Minimum Operating Temperature (Fahrenheit)-40.0
Backing MaterialAluminum; Aluminum Foil
ApplicationShielding
