3M Products & Supplies

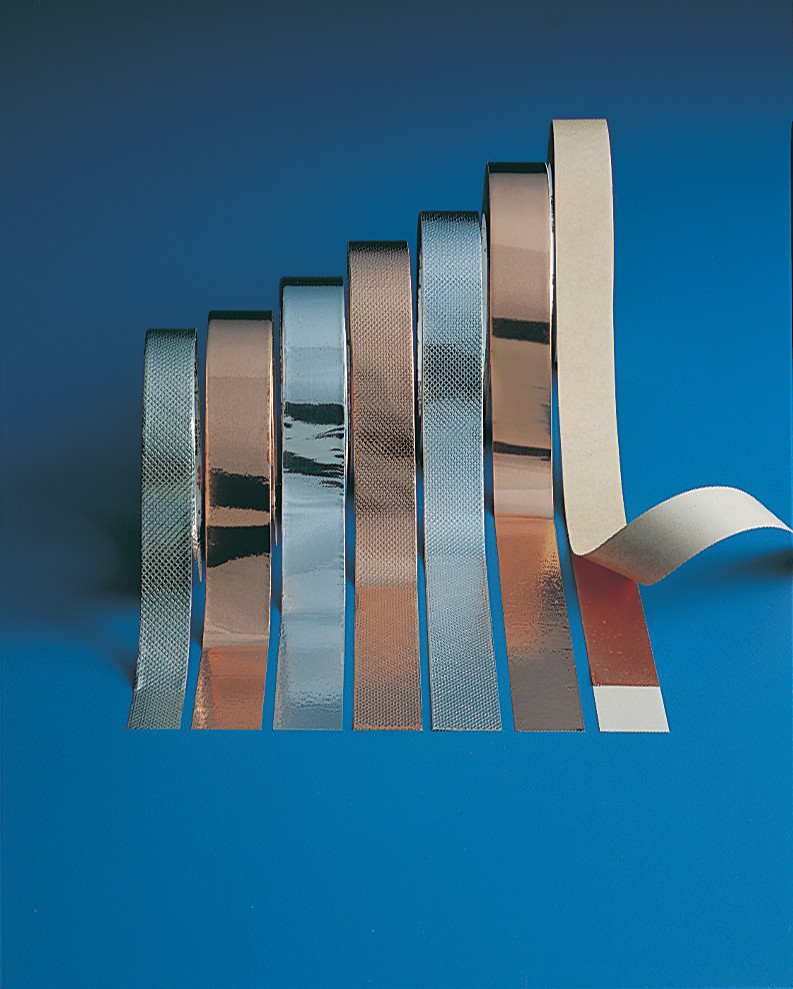

3M™ EMI Aluminum Foil Shielding Tape 1170, 3 in x 18 yd, 3 in Paper Core, 4 Rolls/Case - 7010398749

Sold As: 4-Pack
SKU: 7010398749
MPN: 7010398749
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138490751
3M ID: 80610875645
5 Digit UPC: 49075
$1,208.40 ($302.10 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.

Features

  • Typical shielding effectiveness is above 85 dB, 1MHz to GHz
  • Suitable for EMI shielding, grounding and static charge draining
  • Unique adhesive creates secure contact with the application surface
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
  • Flame-retardant
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Backing (Carrier) Thickness (Imperial) UOMmil
Product MarketsElectrical Equipment Manufacturing
Overall Length (Imperial)18.0
Maximum Operating Temperature (Fahrenheit)266.0
Tensile Strength (Imperial) UOMlb/in
ApplicationShielding
Backing (Carrier) Thickness (Imperial)2.0
Overall Width (Imperial)3.0
Minimum Operating Temperature (Fahrenheit)-40.0
Overall Length (Metric) UOMmm
Maximum Operating Temperature (Celsius)130.0
Overall Width (Imperial) UOMin
Overall Width (Metric) UOMmm
Backing (Carrier) Thickness (Metric)0.051
Shielding Effectiveness75.0
Adhesive TypeConductive Acrylic
Overall Width (Metric)76.2
Minimum Operating Temperature (Celsius)-40.0
Overall Length (Imperial) UOMyd
Overall Length (Metric)16.459
Backing MaterialAluminum; Aluminum Foil
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)20.0
Shelf Life UOMYear
Maximum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Fahrenheit) UOMDegree
Minimum Operating Temperature (Celsius) UOMDegree
Backing (Carrier) MaterialAluminum
IndustriesElectronics
Specifications MetRoHS 2011/65/EU, UL Recognized
Backing (Carrier) Thickness (Metric) UOMmm
