3M Products & Supplies

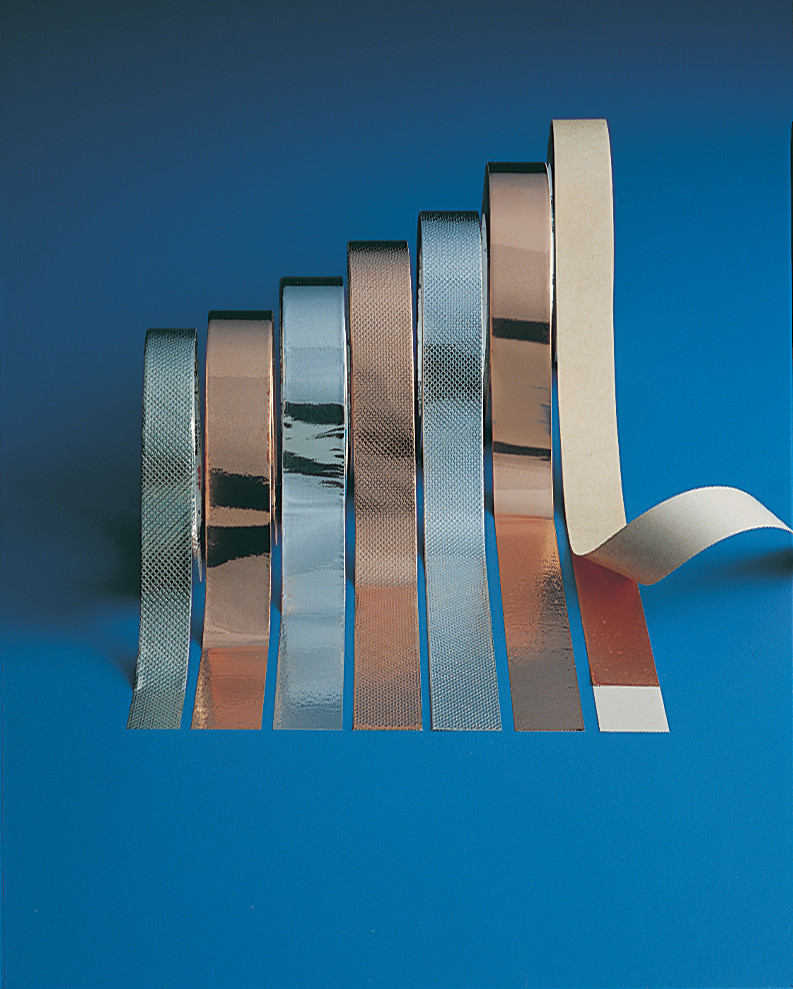

3M™ EMI Aluminum Foil Shielding Tape 1170, 4 in x 18 yd, 3 in Paper Core, 3 Rolls/Case - 7010398883

Sold As: 3-Pack
SKU: 7010398883
MPN: 7010398883
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138501181
3M ID: 80610886931
5 Digit UPC: 50118
$1,077.14 ($359.05 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.

Features

  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Typical shielding effectiveness is above 85 dB, 1MHz to GHz
  • Rated for 600V applications
  • Unique adhesive creates secure contact with the application surface
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Tensile Strength (Imperial)20.0
Overall Width (Metric) UOMmm
Specifications MetRoHS 2011/65/EU, UL Recognized
Product MarketsElectrical Equipment Manufacturing
Overall Width (Metric)101.6
ApplicationShielding
Overall Width (Imperial)4.0
Minimum Operating Temperature (Celsius) UOMDegree
Backing MaterialAluminum; Aluminum Foil
Maximum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.051
Overall Width (Imperial) UOMin
Adhesive TypeConductive Acrylic
IndustriesElectronics
Maximum Operating Temperature (Fahrenheit)266.0
Minimum Operating Temperature (Fahrenheit)-40.0
Backing (Carrier) MaterialAluminum
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric) UOMmm
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Celsius) UOMDegree
Maximum Operating Temperature (Celsius)130.0
Shelf Life UOMYear
Backing (Carrier) Thickness (Imperial)2.0
Minimum Operating Temperature (Celsius)-40.0
Shielding Effectiveness75.0
Backing (Carrier) Thickness (Imperial) UOMmil
