3M Products & Supplies

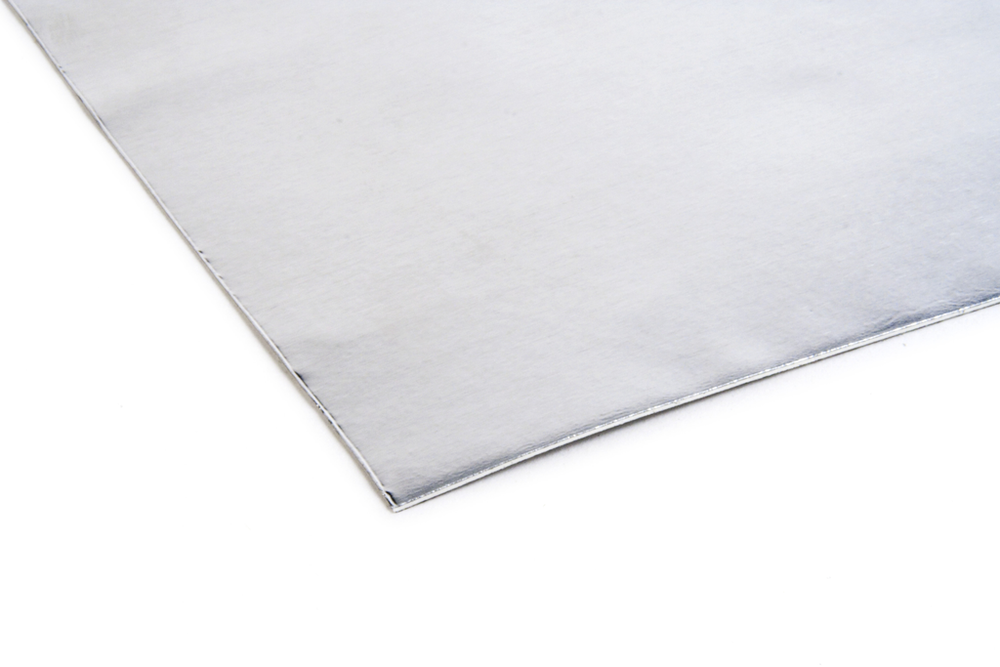

3M™ EMI Aluminum Foil Shielding Tape 1170, 7.7 in x 10 in sheet, 10 Sheets/Bag - 7100050369

Sold As: 10-Pack
SKU: 7100050369
MPN: 7100050369
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128558072
3M ID: 80611420300
5 Digit UPC: 55807
$68.63 ($6.86 / Count)
Hurry up! Current stock:

Product Description

3M™ Aluminium Foil EMI Shielding Tape 1170 is an acrylic adhesive, EMI shielding foil tape. This flame retardant tape is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. It withstands a wide temperature range of -40°C to 130°C (-40°F to 266°F). The tape is rated for 600V dry applications.

Features

  • Unique adhesive creates secure contact with the application surface
  • Suitable for EMI shielding, grounding and static charge draining
  • Typical shielding effectiveness is above 85 dB, 1MHz to GHz
  • Flame-retardant
  • Rated for 600V applications
  • Withstands a wide temperature range of -40 to 266 °F (-40 to 130 °C)
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Product MarketsElectrical Equipment Manufacturing
Backing MaterialAluminum; Aluminum Foil
Backing (Carrier) MaterialAluminum
IndustriesElectronics
Backing (Carrier) Thickness (Imperial) UOMmil
Shielding Effectiveness75.0
Minimum Operating Temperature (Celsius) UOMDegree
Minimum Operating Temperature (Celsius)-40.0
Tensile Strength (Imperial) UOMlb/in
Overall Width (Imperial) UOMin
Maximum Operating Temperature (Fahrenheit)266.0
Overall Width (Metric)195.58
ApplicationShielding
Specifications MetRoHS 2011/65/EU, UL Recognized
Adhesive TypeConductive Acrylic
Backing (Carrier) Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit) UOMDegree
Backing (Carrier) Thickness (Metric)0.051
Shelf Life UOMYear
Backing (Carrier) Thickness (Imperial)2.0
Overall Width (Imperial)7.7
Maximum Operating Temperature (Celsius)130.0
Minimum Operating Temperature (Fahrenheit)-40.0
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Imperial)20.0
Overall Width (Metric) UOMmm
