3M Products & Supplies

3M™ EMI Copper Foil (Double Coated) Shielding Tape 1182, 7.7 in x 10 in sheet, 3 in paper core, 10 Sheets/Bag - 7100058011

Sold As: 10-Pack
SKU: 7100058011
MPN: 7100058011
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128558096
3M ID: 80611420326
5 Digit UPC: 55809
$115.07 ($11.51 / Count)
Hurry up! Current stock:

Product Description

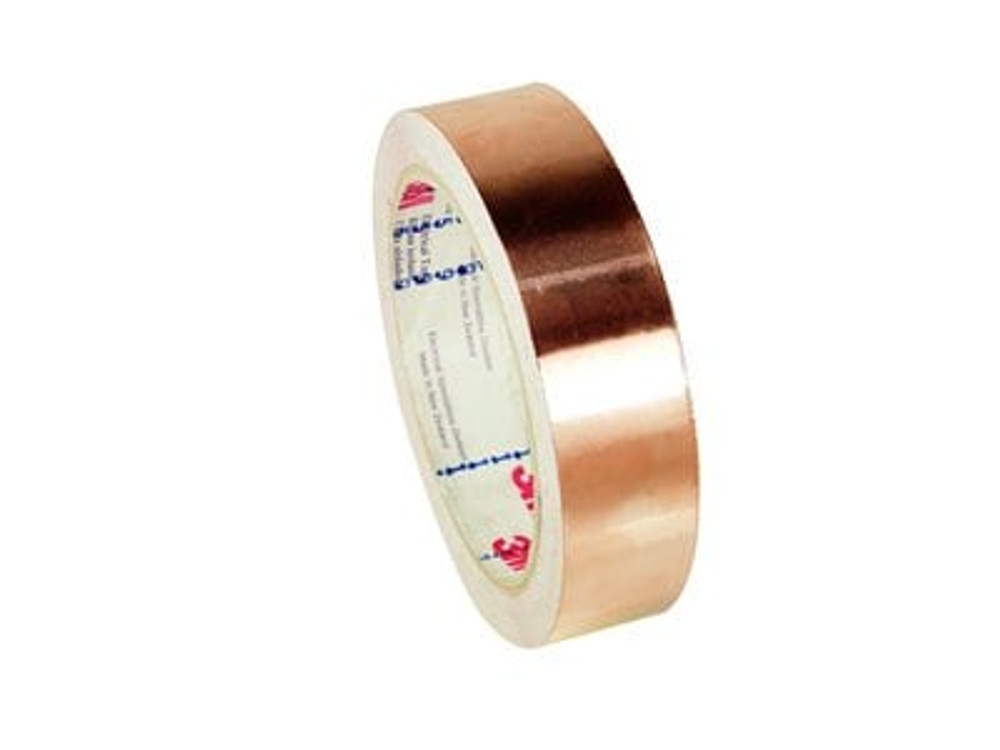

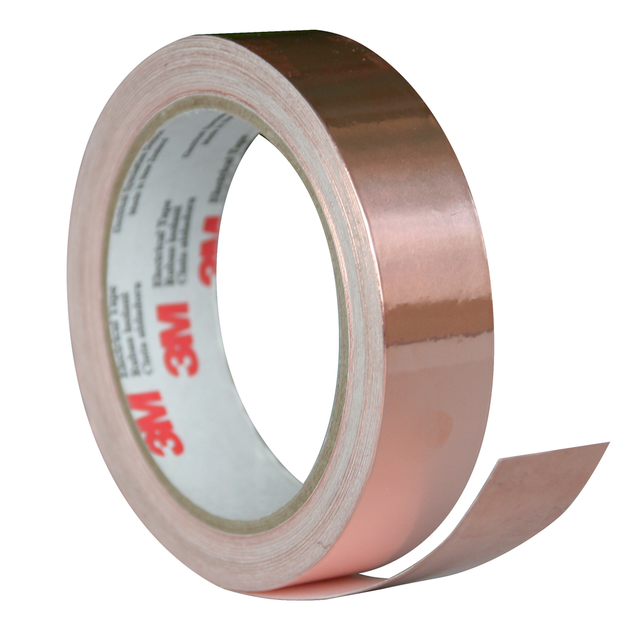

3M™ Copper Foil EMI Shielding Tape 1182 is a 3.5 mil thick acrylic adhesive shielding tape. This flame retardant tape is designed to bond 2 surfaces together physically and electrically. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Unique adhesive creates secure contact with the application surface
  • Rated for 600V applications
  • Suitable for bonding 2 surfaces together physically and electrically
  • Flame-retardant
  • UL Listed and RoHS 2011/65/EU Compliant

Specifications

Shelf Life1825
Country of OriginTaiwan
Maximum Operating Temperature (Celsius) UOMDegree
Overall Width (Metric)195.6
Specifications MetRoHS 2011/65/EU, UL 510, UL Listed, UL Recognized
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric) UOMmm
Shelf Life UOMYear
Backing (Carrier) Thickness (Imperial) UOMmil
Maximum Operating Temperature (Celsius)130.0
Adhesive TypeAcrylic
Overall Width (Imperial)7.7
Backing (Carrier) MaterialCopper Foil, Flat
Overall Width (Imperial) UOMin
MaterialCopper Foil
Product MarketsElectrical Equipment Manufacturing
Tensile Strength (Metric) UOMN/cm
Backing (Carrier) Thickness (Imperial)3.5
Backing (Carrier) Thickness (Metric)0.089
Tape GradeProfessional
Total Tape Thickness without Liner (Metric)0.0889
Tensile Strength (Metric)44.0
Elongation at Break5
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorCopper
