3M Products & Supplies

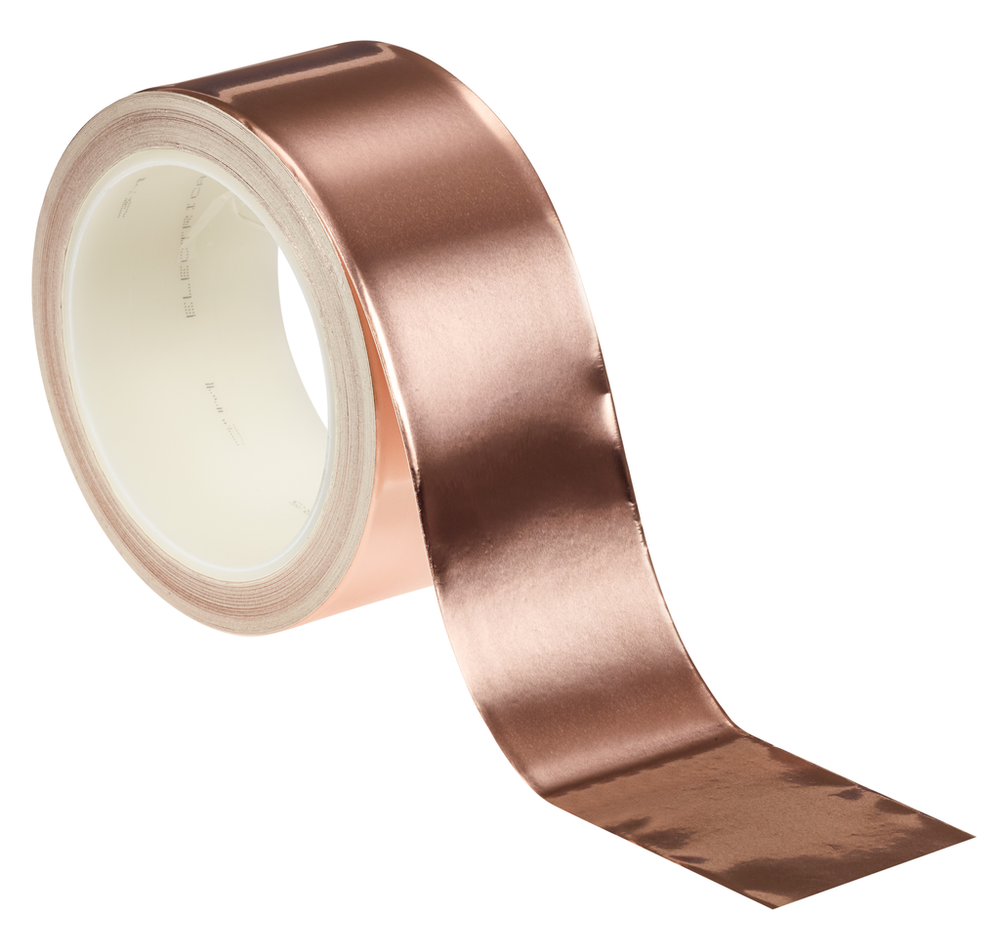

3M™ EMI Copper Foil Shielding Tape 1181, 2 in x 18 yd (50,80 mm x 16.5 m), 5 per case - 7000132170

Sold As: 5-Pack
SKU: 7000132170
MPN: 7000132170
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007274704
3M ID: 80011181064
5 Digit UPC: 27470
$957.72 ($191.54 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • UL Listed and RoHS 2011/65/EU Compliant
  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Unique adhesive creates secure contact with the application surface
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric)50.8
Tape GradeProfessional
Shelf Life UOMYear
Overall Width (Imperial)2.0
Overall Length (Imperial)18.0
Overall Length (Metric)16.5
Maximum Operating Temperature (Celsius) UOMDegree
ApplicationShielding
Overall Width (Metric) UOMmm
Overall Length (Metric) UOMm
Tensile Strength (Metric) UOMN/cm
Maximum Operating Temperature (Celsius)130.0
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Width (Imperial) UOMin
Tensile Strength (Metric)44.0
Product ColorCopper
Product MarketsElectrical Equipment Manufacturing
Elongation at Break20
Total Tape Thickness without Liner (Metric)0.066
Adhesive TypeConductive Acrylic
Backing (Carrier) MaterialCopper Foil
Overall Length (Imperial) UOMyd
