3M Products & Supplies

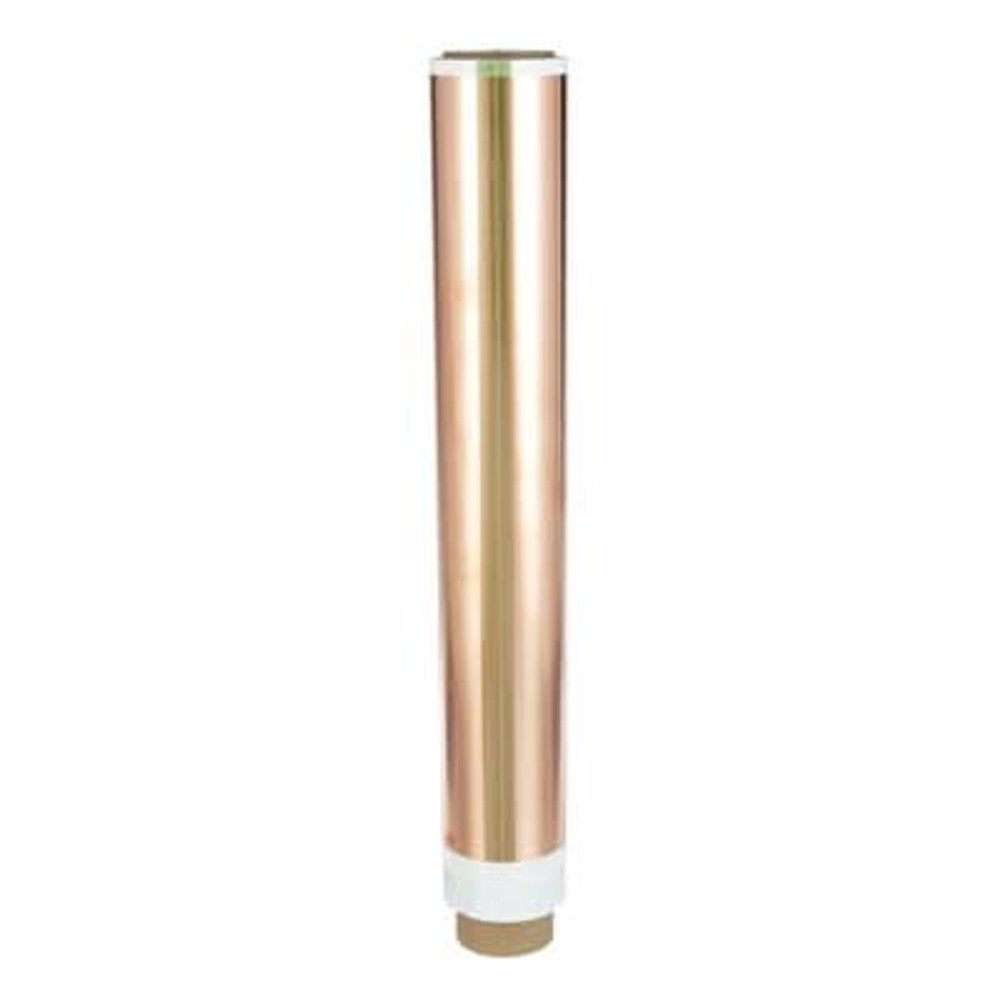

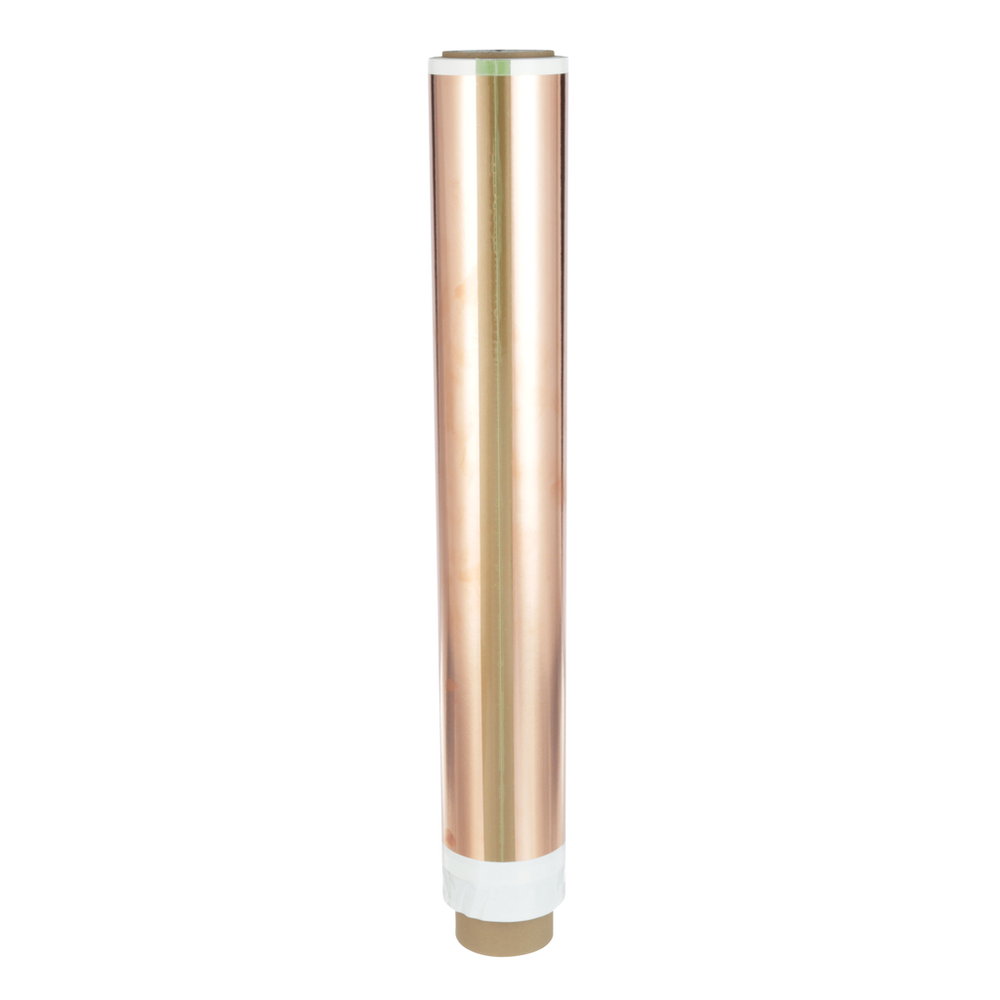

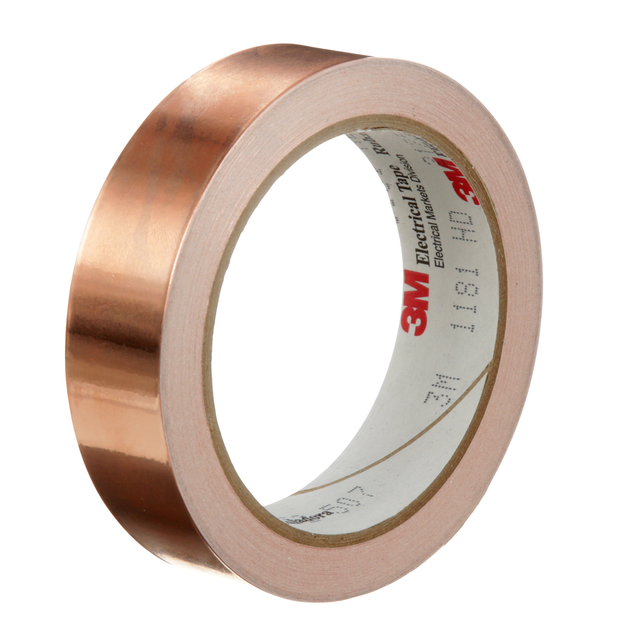

3M™ EMI Copper Foil Shielding Tape 1181, 23 in x 18 yd (58.42cm x 16.5 m), 1 per case - 7000058121

SKU: 7000058121
MPN: 7000058121
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00054007478386
3M ID: 80610567085
5 Digit UPC: 47838
$1,566.92 each
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Unique adhesive creates secure contact with the application surface
  • UL Listed and RoHS 2011/65/EU Compliant
  • Suitable for EMI shielding, grounding and static charge draining
  • Flame-retardant
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Total Tape Thickness without Liner (Metric)0.066
Overall Width (Imperial)23.0
Tensile Strength (Metric) UOMN/cm
Overall Width (Metric) UOMmm
Adhesive TypeConductive Acrylic
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)44.0
Overall Width (Imperial) UOMin
Backing (Carrier) MaterialCopper Foil
Overall Length (Imperial) UOMyd
Product MarketsElectrical Equipment Manufacturing
Tape GradeProfessional
Overall Length (Imperial)18.0
Maximum Operating Temperature (Celsius)130.0
Product ColorCopper
Overall Length (Metric)16.5
Elongation at Break20
Overall Width (Metric)584.2
ApplicationShielding
Shelf Life UOMYear
Specifications MetRoHS 2011/65/EU, UL Recognized
Maximum Operating Temperature (Celsius) UOMDegree
