3M Products & Supplies

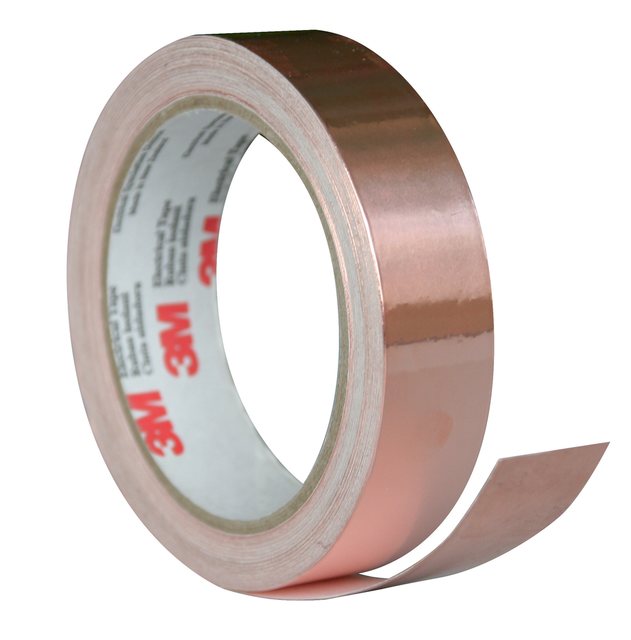

3M™ EMI Copper Foil Shielding Tape 1181, 3/4 in x 18 yd (19,05 mm x 16,5 m), 12 per case - 7100084399

Sold As: 12-Pack
SKU: 7100084399
MPN: 7100084399
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00054007274698
3M ID: 80011181049
5 Digit UPC: 27469
$783.58 ($65.30 / Count)
Hurry up! Current stock:

Product Description

3M™ Copper Foil EMI Shielding Tape 1181 is a conductive adhesive shielding tape that is designed for applications that require reliable, point to point electrical contact. It comes on a removable liner for easy die cutting and handling. The tape is rated for 600V dry applications.

Features

  • Suitable for EMI shielding, grounding and static charge draining
  • UL Listed and RoHS 2011/65/EU Compliant
  • Flame-retardant
  • Unique adhesive creates secure contact with the application surface
  • Rated for 600V applications
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginTaiwan
Elongation at Break20
Tape GradeProfessional
Overall Width (Metric) UOMmm
Tensile Strength (Metric)44.0
Adhesive TypeConductive Acrylic
Maximum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric)16.5
Backing (Carrier) MaterialCopper Foil
Shelf Life UOMYear
Total Tape Thickness without Liner (Metric)0.066
Tensile Strength (Metric) UOMN/cm
Product ColorCopper
Total Tape Thickness without Liner (Metric) UOMmm
Maximum Operating Temperature (Celsius)130.0
Overall Width (Imperial) UOMin
Overall Length (Imperial)18.0
ApplicationShielding
Product MarketsElectrical Equipment Manufacturing
Specifications MetRoHS 2011/65/EU, UL Recognized
Overall Width (Imperial)0.75
Overall Width (Metric)19.0
Overall Length (Metric) UOMm
Overall Length (Imperial) UOMyd
