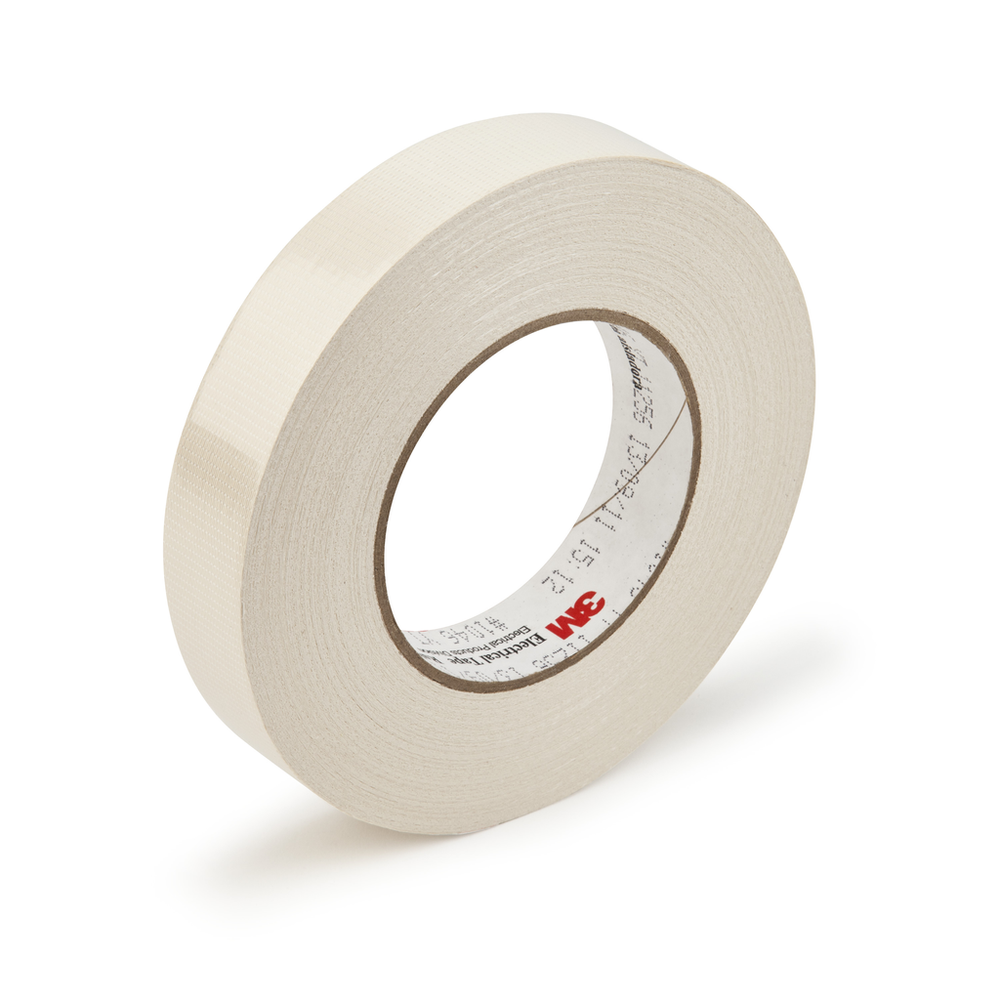

Electrical Filament Tape 1046. Left angle photo.
Electrical Filament Tape 1046. Left angle photo.
Electrical Filament Tape 1046. Left angle photo.
Previous Next

3M Products & Supplies

3M Filament-Reinforced Electrical Tape 1046, 1/2in X 60 yds, Bulk, 3-in plastic core, 72 Rolls/Case

Sold As: 72-Pack
SKU: 7010399044
MPN: 7010399044
Made to Order: Lead time from 3M is approximately 22 working days.
UPC: 00051128604502
3M ID: 80611607500
5 Digit UPC: 60450
Shelf Life: 1825 Days
Country of Origin: USA
Manufacturer: 3M
Size: 0 NP
Color: Translucent
$1,033.53 ($14.35 / Count)
Hurry up! Current stock:
Product Description
3M Filament Reinforced Electrical Tape 1046 is a 7 mil thick, high tensile, electrical tape. It is suitable for insulating dry type transformers, as well as motor winding, end turn and wire hold applications. It withstands a temperature range of 32 to 266 F (0 to 130 C).3M Electrical Tape 1046 has a polyester film, filament reinforced backing and a thermosetting, rubber adhesive that offers optimized adherence. The backing has excellent electrical and physical characteristics. It is designed for applications that require excellent dielectric strength and mechanical strength. This tape is suitable for lead anchoring and the banding of coils where high edge tear resistance and low stretch are required. RoHS 2011/65/EU Compliant.

Extra Details

  • Designed for applications that require excellent dielectric strength and mechanical strength
  • Designed for excellent dielectric strength and mechanical strength applications
  • Polyester film, filament-reinforced backing and highly conformable, pressure-sensitive, thermosetting, rubber adhesive
  • RoHS 2011/65/EU Compliant
  • Suitable for insulating dry-type transformers, motor-winding and end-turn, wire-hold applications
  • Withstands a temperature range of 32 to 266 °F (0 to 130 °C)
