3M Products & Supplies

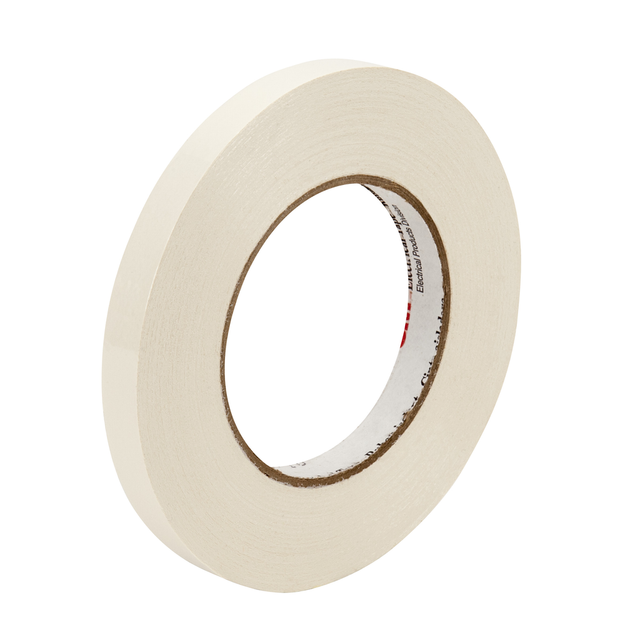

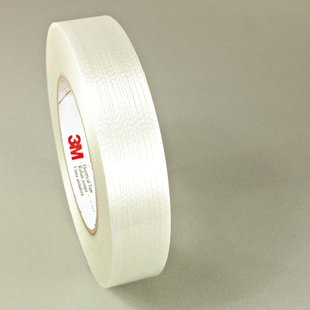

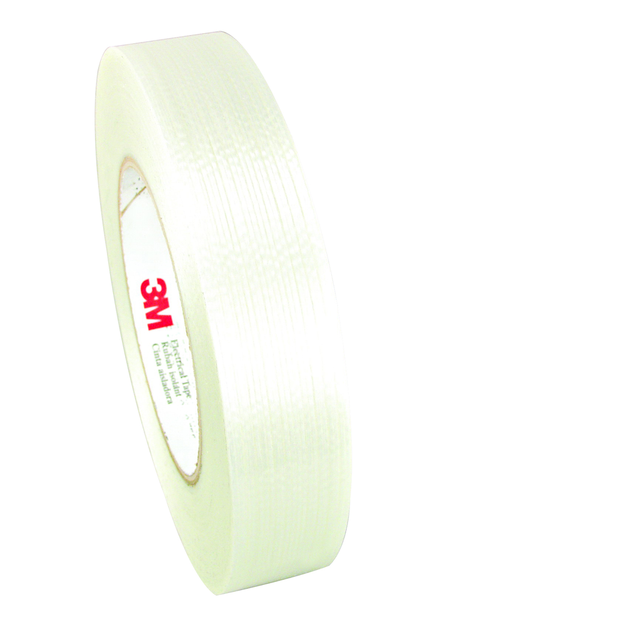

3M™ Filament-Reinforced Electrical Tape 46, 1 in x 60 yd, 36 Rolls/Case - 7010320272

Sold As: 36-Pack
SKU: 7010320272
MPN: 7010320272
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138528072
3M ID: 80610870141
5 Digit UPC: 52807
$1,474.21 ($40.95 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Excellent for anchoring lead wires to banding coils and end-turn taping
  • Low stretch, high tensile and edge-tear resistance
  • UL Listed and RoHS 2011/65/EU Compliant
  • For applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Tough, durable filament tape with thermosetting rubber resin adhesive
  • 7 mil thickness
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Insulation Resistance> 10^6 megohms
ApplicationInsulation
Overall Length (Imperial)60.0
Electrolytic Corrosion Factor1.0
Adhesive TypeThermosetting Rubber
Tensile Strength (Imperial)275.0
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Tensile Strength (Metric)481.0
Tensile Strength (Imperial) UOMlb/in
Overall Length (Imperial) UOMyd
Overall Length (Metric) UOMm
Specifications MetCSA Certified, UL Recognized
Product ColorTransparent
Overall Width (Imperial) UOMin
Overall Width (Imperial)1.0
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Metric)0.178
Overall Length (Metric)54.8
Tensile Strength (Metric) UOMN/10mm
Elongation at Break5
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial)7.0
Overall Width (Metric) UOMmm
