3M Products & Supplies

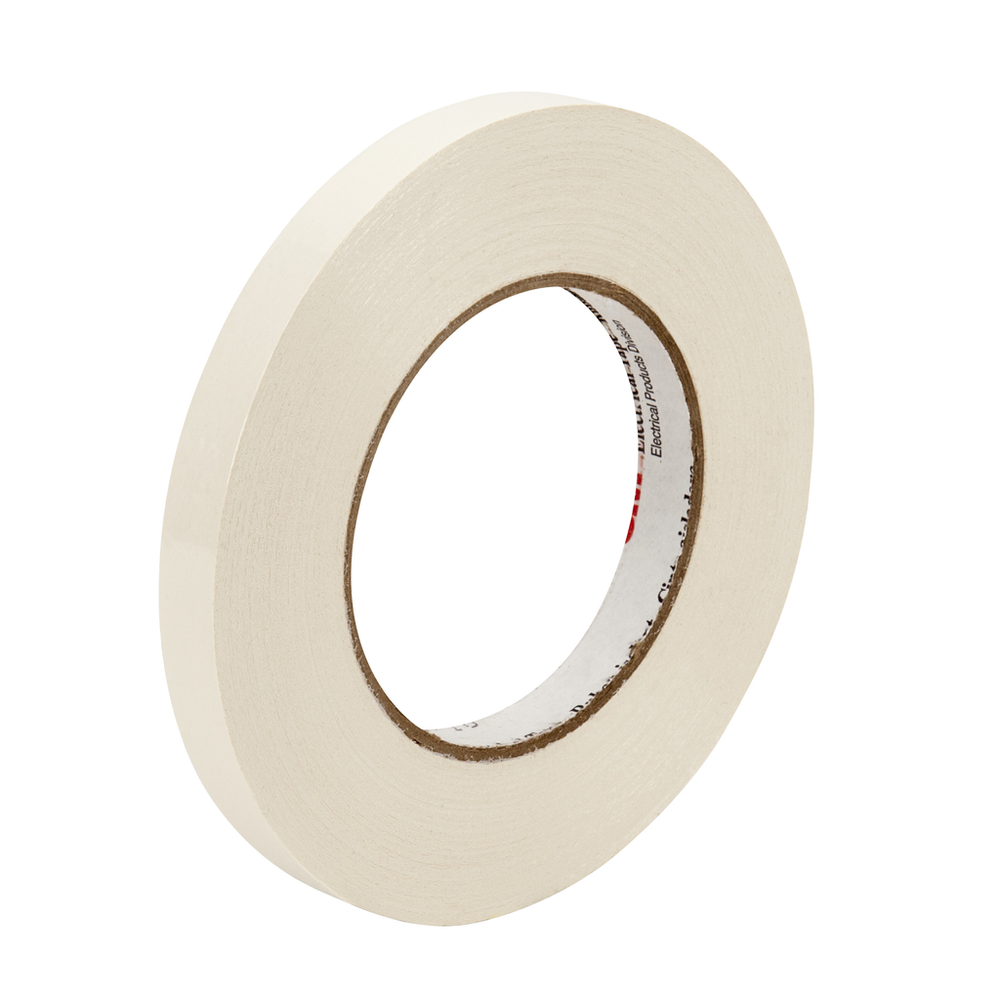

3M™ Filament-Reinforced Electrical Tape 46, 3/4 in X 180 yds, Bulk, 3-in paper, 12 Rolls/Case - 7010297646

Sold As: 24-Pack
SKU: 7010297646
MPN: 7010297646
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138504427
3M ID: 80610890172
5 Digit UPC: 50442
$2,166.45 ($90.27 / Count)
Hurry up! Current stock:

Product Description

3M™ Tape 46 is an electrical tape with rubber adhesive. This tape is ideal for anchoring lead wires to banding coils and for end turn taping. This tape is 600V rated and withstands a temperature range of 32 to 266 °F (0 to 130 °C).

Features

  • Tough, durable filament tape with thermosetting rubber resin adhesive
  • UL Listed and RoHS 2011/65/EU Compliant
  • Low stretch, high tensile and edge-tear resistance
  • 7 mil thickness
  • For applications needing both the dielectric strength of polyester film and the high mechanical strength of glass fibers
  • Excellent for anchoring lead wires to banding coils and end-turn taping

Specifications

Shelf Life1825
Country of OriginUnited States
Shelf Life UOMYear
Electrolytic Corrosion Factor1.0
Tensile Strength (Metric) UOMN/10mm
Total Tape Thickness without Liner (Imperial)7.0
Insulation Resistance> 10^6 megohms
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Metric)0.178
Overall Length (Imperial)180.0
ApplicationInsulation
Overall Width (Imperial) UOMin
Specifications MetCSA Certified, UL Recognized
Adhesive TypeThermosetting Rubber
Overall Width (Metric) UOMmm
Tensile Strength (Metric)481.0
Overall Width (Metric)19.05
Tensile Strength (Imperial) UOMlb/in
Tensile Strength (Imperial)275.0
Overall Width (Imperial)0.75
Elongation at Break5
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorTransparent
