3M Products & Supplies

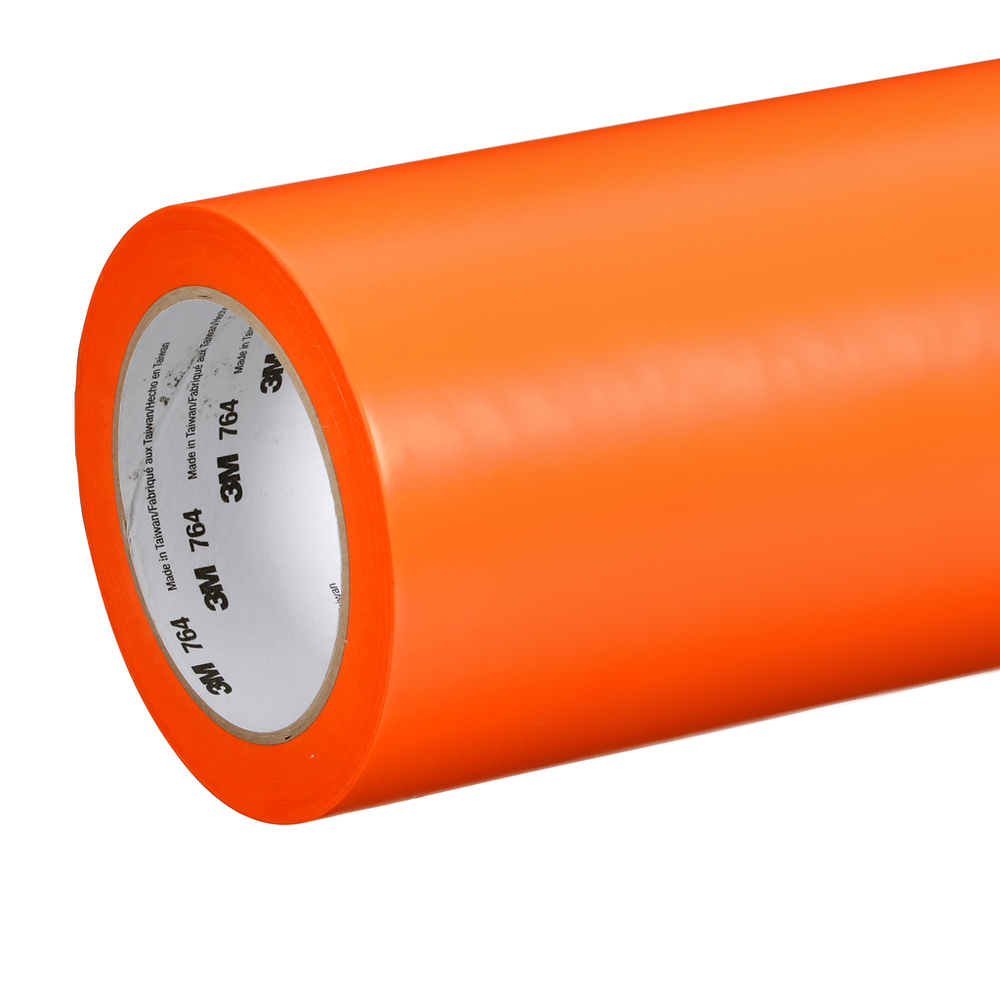

3M™ General Purpose Vinyl Tape 764, Orange, 49 in X 36 yd, 5 mil, 3 Roll/Case - 7000124212

Sold As: 3-Pack
SKU: 7000124212
MPN: 7000124212
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00048011580456
3M ID: 70006403110
5 Digit UPC: 58045
$619.12 ($206.37 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Overall Height (Imperial)5.2
Total Tape Thickness without Liner (Imperial)5.0
Total Tape Thickness without Liner (Metric)0.127
Overall Width (Imperial)49.0
Back Side Adhesive Thickness (Metric) UOMmm
Elongation at Break1.8%
Maximum Operating Temperature (Fahrenheit)85.0
Back Side Adhesive Thickness (Metric)0.1
Product FormRoll
Maximum Operating Temperature (Celsius) UOMDegree
Adhesion Strength (Metric)21.0
Tensile Strength (Metric)228.0
Backing (Carrier) MaterialVinyl
Shelf Life in Months (From Date of Manufacture)18.0
Overall Thickness (Imperial)5.0
Overall Length (Metric) UOMm
Overall Height (Metric) UOMmm
Overall Height (Metric)0.1
Product ColorOrange
Minimum Operating Temperature (Fahrenheit) UOMDegree
Adhesive TypeRubber
Overall Width (Metric)124.5
Minimum Operating Temperature (Celsius) UOMDegree
Tensile Strength (Metric) UOMN/100mm
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing Thickness (Imperial)4.0
ApplicationGeneral Use Vinyl
Maximum Operating Temperature (Celsius)29.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Overall Height (Imperial) UOMmil
Units per Case UOMRoll
Overall Length (Imperial) UOMyd
Minimum Operating Temperature (Celsius)16.0
Overall Length (Metric)32.9
Backing Thickness (Metric)0.1
Backing Thickness (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive MaterialRubber
Overall Length (Imperial)36.0
Backing Thickness (Metric) UOMmm
Minimum Operating Temperature (Fahrenheit)60.0
Overall Thickness (Imperial) UOMmil
Overall Width (Imperial) UOMin
Adhesion Strength18.0
Units per Case3.0
Tensile Strength (Imperial) UOMlb/in
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Metric) UOMcm
Maximum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)13.0
Adhesion Strength (Metric) UOMN/100mm
