3M Products & Supplies

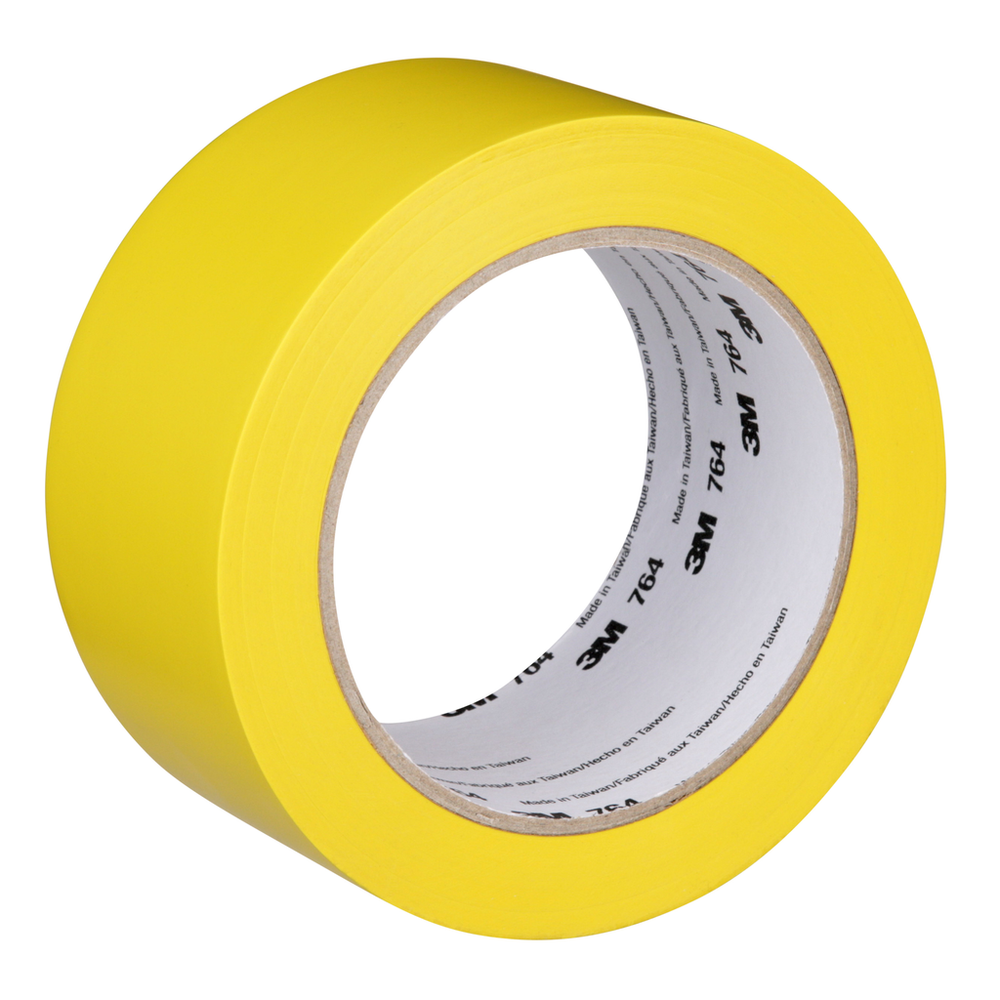

3M™ General Purpose Vinyl Tape 764, Yellow, 2 in x 36 yd, 5 mil, 24 Roll/Case, Individually Wrapped Conveniently Packaged - 7000028954

Sold As: 24-Pack
SKU: 7000028954
MPN: 7000028954
Stock Item: Stock items typically ship within 2-3 business days
UPC: 00021200431784
3M ID: 70006279338
5 Digit UPC: 43178
$202.22 ($8.43 / Count)
Hurry up! Current stock:

Product Description

3M™ General Purpose Vinyl and Hazard Marking Tapes 764 are the cost-effective choice for a variety of safety marking and color coding applications where you don’t see tough conditions or the need for long term clean removal. Conformability, instant adhesion and easy unwind make these tapes ideal for marking equipment, walls and pipes. Designed with unique stretch properties, this vinyl tape conforms to rough, irregular, curved and convex surfaces while remaining stretched and without lifting after application. The rubber adhesive offers quick stick and excellent holding strength on many substrates. It also maintains its color when exposed to abrasion, wear and many solvents. Using 3M™ Vinyl 764 Tape is a faster, more versatile and less costly option than painting, which often requires ventilation and time-consuming prep and clean-up processes. Recommended applications include floor marking; general purpose holding and bundling; color coding; marking of parts or machines; temporary protection of parts, equipment or products from abrasion; and decorating.

Features

  • ECONOMICAL FLOOR MARKING: Cost-effective option for color coding and safety marking applications
  • INSTANT ADHESION: Rubber adhesive bonds immediately to a variety of surfaces
  • TAPE YOUR WAY: This tape establishes a powerful bond whether you apply it by hand or with the 3M™ Lane Marking Applicator M1
  • HIGH CONFORMABILITY: Strong, flexible backing is ideal for use on curved and irregular surfaces
  • VIVID COLOR: A wide variety of colors helps markup floors and protect surfaces with color-coded efficiency
Spec Sheet



Downloads

Specifications

Shelf Life547
Country of OriginTaiwan
Overall Length (Metric)32.9
Adhesion Strength (Metric)21.0
Product ColorYellow
Overall Length (Imperial)36.0
Units per Case24.0
Total Tape Thickness without Liner (Metric)0.125
Shelf Life in Months (From Date of Manufacture) UOMMonths
Backing Thickness (Metric) UOMmm
Minimum Operating Temperature (Celsius)16.0
Shelf Life in Months (From Date of Manufacture)18.0
Adhesion Strength (Metric) UOMN/100mm
Product FormRoll
Total Tape Thickness without Liner (Imperial) UOMmil
Adhesion Strength18.0
IndustriesAutomotive, General Industrial, MRO, Military and Government, Specialty Vehicles, Transportation
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)85.0
Adhesive MaterialRubber
Overall Height (Imperial)5.0
Overall Thickness (Imperial)5.0
Minimum Operating Temperature (Celsius) UOMDegree
Adhesive TypeRubber
Back Side Adhesive Thickness (Metric) UOMmm
Backing Thickness (Metric)0.1
Overall Length (Metric) UOMm
Tensile Strength (Imperial) UOMlb/in
Maximum Operating Temperature (Celsius) UOMDegree
Overall Thickness (Imperial) UOMmil
Tensile Strength (Metric)228.0
Total Tape Thickness without Liner (Imperial)5.0
Backing (Carrier) MaterialPVC
Minimum Operating Temperature (Fahrenheit)60.0
Backing Thickness (Imperial)4.0
Overall Length (Imperial) UOMyd
Overall Width (Imperial)2.0
Tensile Strength (Metric) UOMN/100mm
Overall Width (Metric) UOMmm
Backing MaterialVinyl
Maximum Operating Temperature (Celsius)29.0
Overall Width (Imperial) UOMin
ApplicationGeneral Use Vinyl
Overall Height (Metric) UOMmm
Overall Width (Metric)50.8
Total Tape Thickness without Liner (Metric) UOMmm
Back Side Adhesive Thickness (Metric)0.1
Elongation at Break1.8%
Units per Case UOMRoll
Minimum Operating Temperature (Fahrenheit) UOMDegree
Tensile Strength (Imperial)13.0
Overall Height (Imperial) UOMmil
Backing Thickness (Imperial) UOMmil
Overall Height (Metric)0.1
