3M™ Glass Cloth Electrical Tape 69, 1/2 in x 66 ft, White, 50 Rolls/Case - 7000145501

Name: 3M™ Glass Cloth Electrical Tape 69, 1/2 in x 66 ft, White, 50 Rolls/Case - 7000145501
Brand: 3M Products & Supplies
SKU: 7000145501
Price: 200.78 USD
Availability: InStock

Sold As: 10-Pack

SKU: 7000145501

MPN: 7000145501

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00054007100836

3M ID: 80018003592

5 Digit UPC: 10083

$200.78 ($20.08 / Count)

Hurry up! Current stock:

Quantity:

Product Description

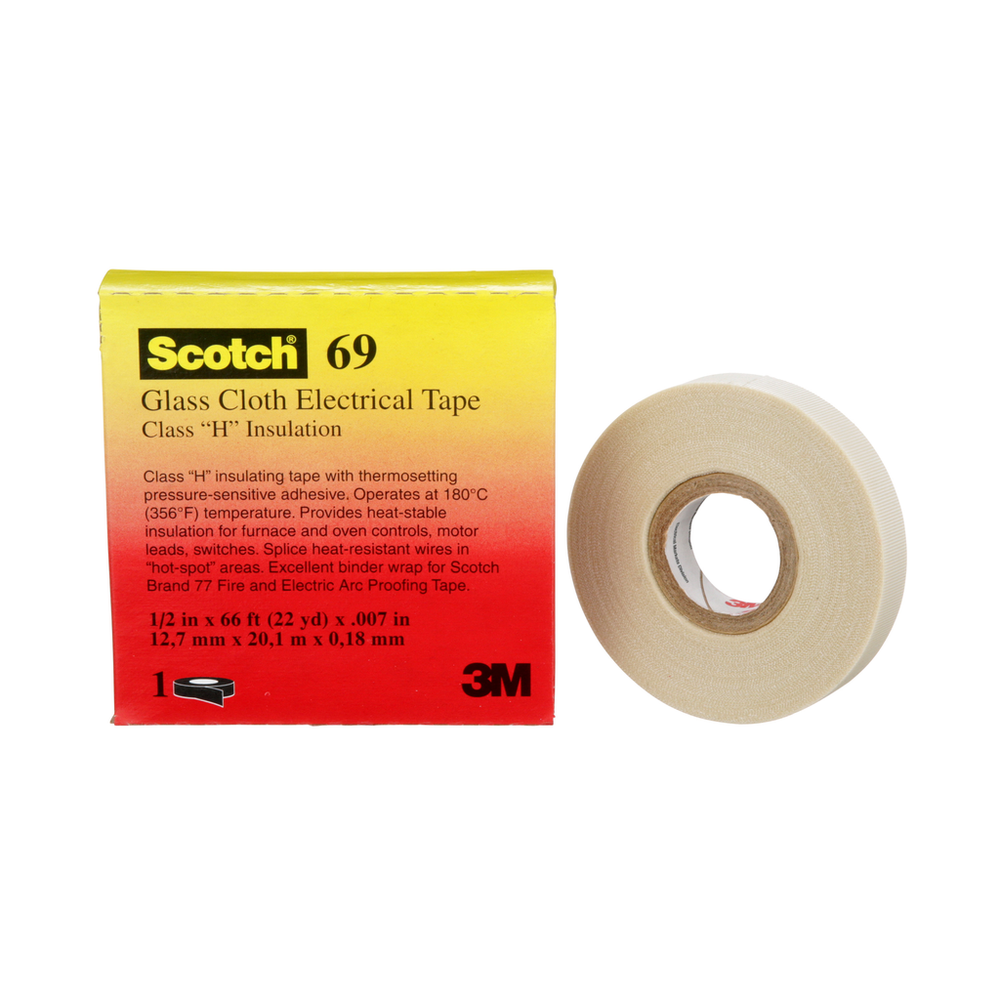

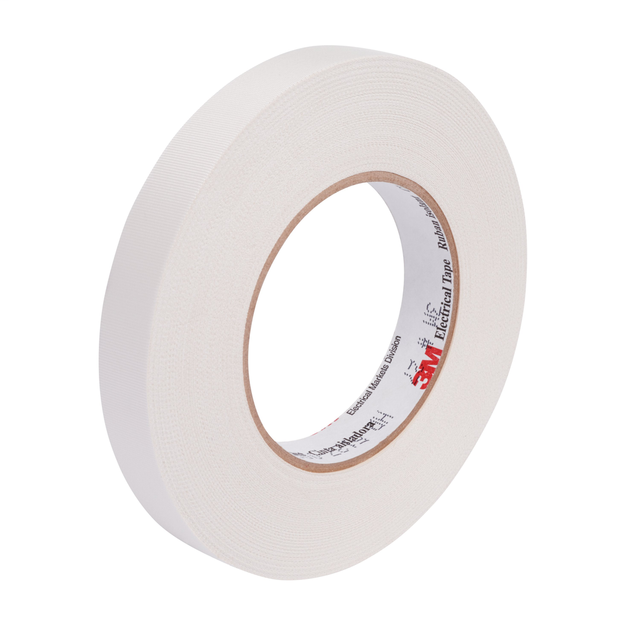

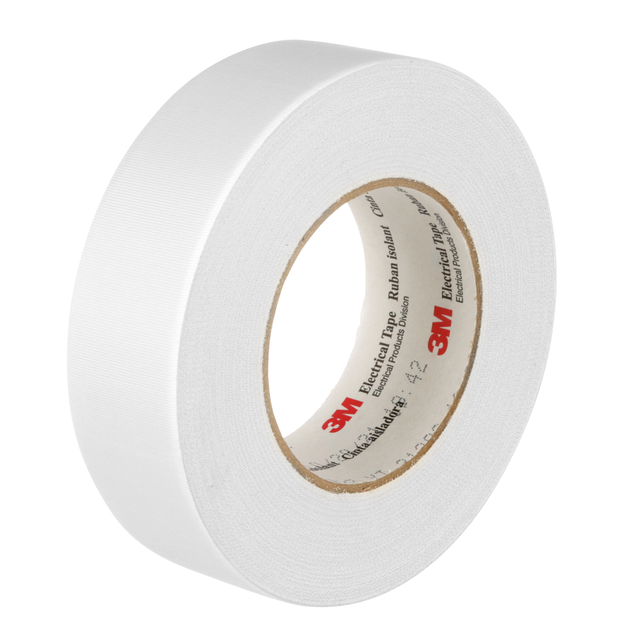

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

UL Recognized flame retardant
UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
Pressure-sensitive silicone adhesive with glass cloth backing
5 year shelf-life when stored per 3M recommended conditions
Nominal thickness: 0.178 mm (7.0 mil)
Printable

Spec Sheet

Downloads

Product Selection Guides

Specifications

Shelf Life	1825
Country of Origin	United States
Overall Length (Imperial) UOM	ft
Total Tape Thickness without Liner (Metric) UOM	mm
Specifications Met	CSA, RoHS 2011/65/EU, UL Recognized
Overall Width (Imperial)	0.5
Total Tape Thickness without Liner (Metric)	0.178
Dielectric Strength	3000.0
Shelf Life UOM	Year
Total Tape Thickness without Liner (Imperial)	7.0
Dielectric Strength UOM	V
Backing (Carrier) Material	Glass Cloth
Tape Grade	Professional
Application	Insulation
Total Tape Thickness without Liner (Imperial) UOM	mil
Overall Width (Metric)	12.7
Overall Width (Imperial) UOM	in
Overall Length (Metric) UOM	m
Overall Width (Metric) UOM	mm
Electrolytic Corrosion Factor	1.0
Insulation Resistance	4.8 x 10^4 megohms
Adhesive Type	Silicone
Product Color	White
Product Markets	Electrical Equipment Manufacturing
Overall Length (Imperial)	66.0
Overall Length (Metric)	20.1
