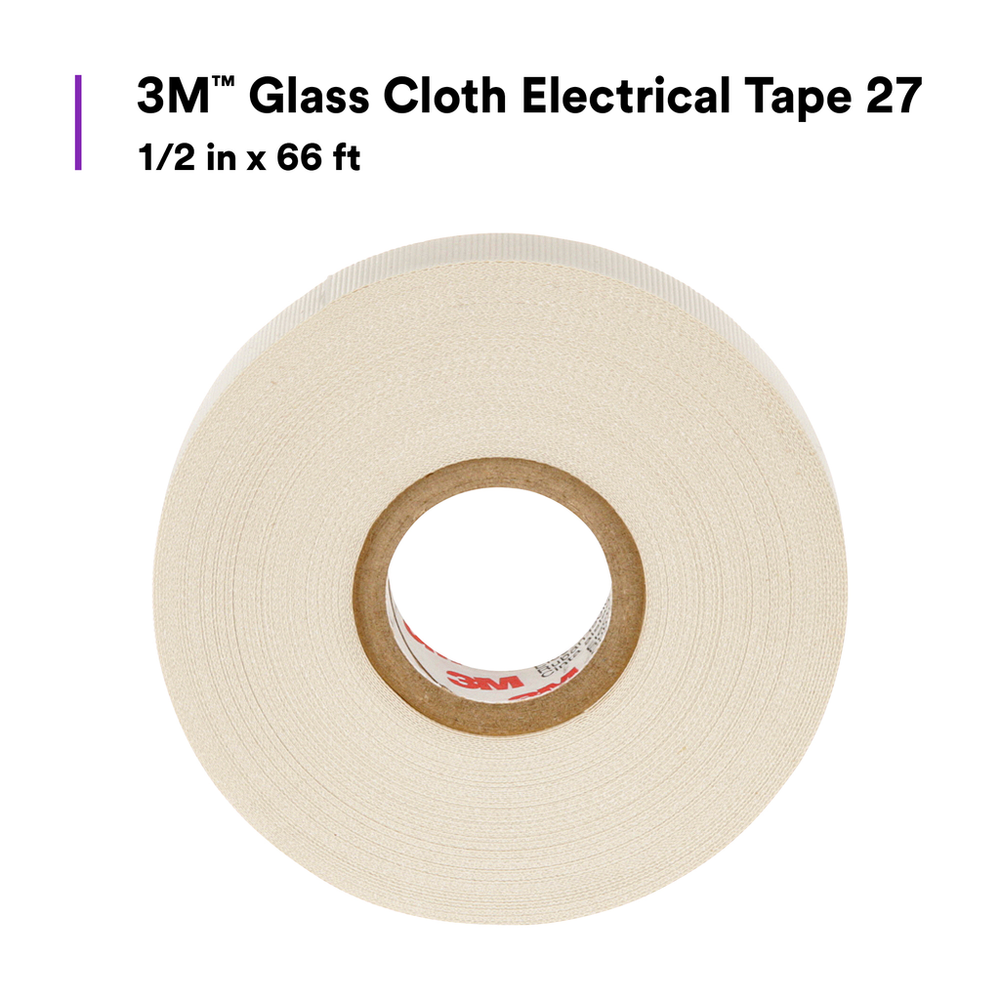

3M™ Glass Cloth Electrical Tape 27, 1/2 in x 66 ft, 50 Rolls/Case - 7000005814

Name: 3M™ Glass Cloth Electrical Tape 27, 1/2 in x 66 ft, 50 Rolls/Case - 7000005814
Brand: 3M Products & Supplies
SKU: 7000005814
Price: 796.01 USD
Availability: InStock

Sold As: 50-Pack

SKU: 7000005814

MPN: 7000005814

Stock Item: Stock items typically ship within 2-3 business days

UPC: 00054007150664

3M ID: 80012020352

5 Digit UPC: 15066

$796.01 ($15.92 / Count)

Hurry up! Current stock:

Quantity:

Product Description

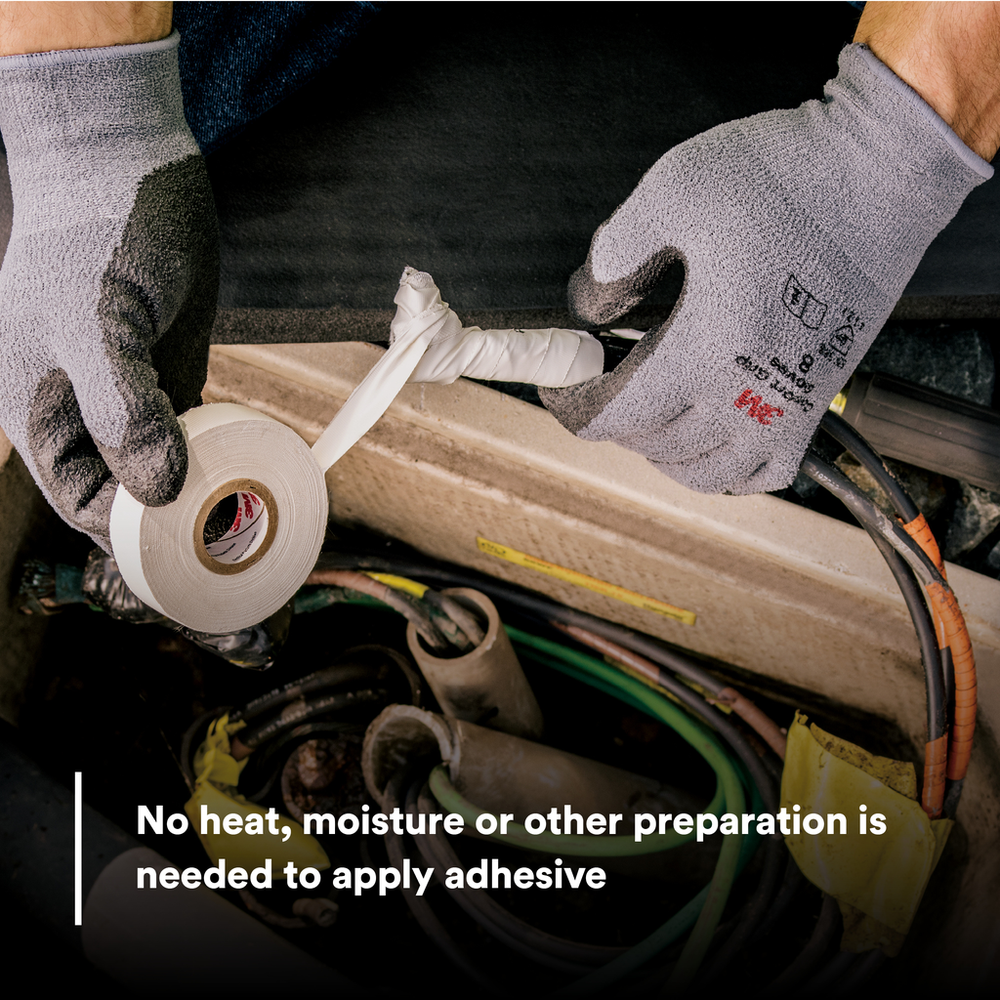

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

Adhesive is specially designed and prepared to provide corrosion protection
0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive

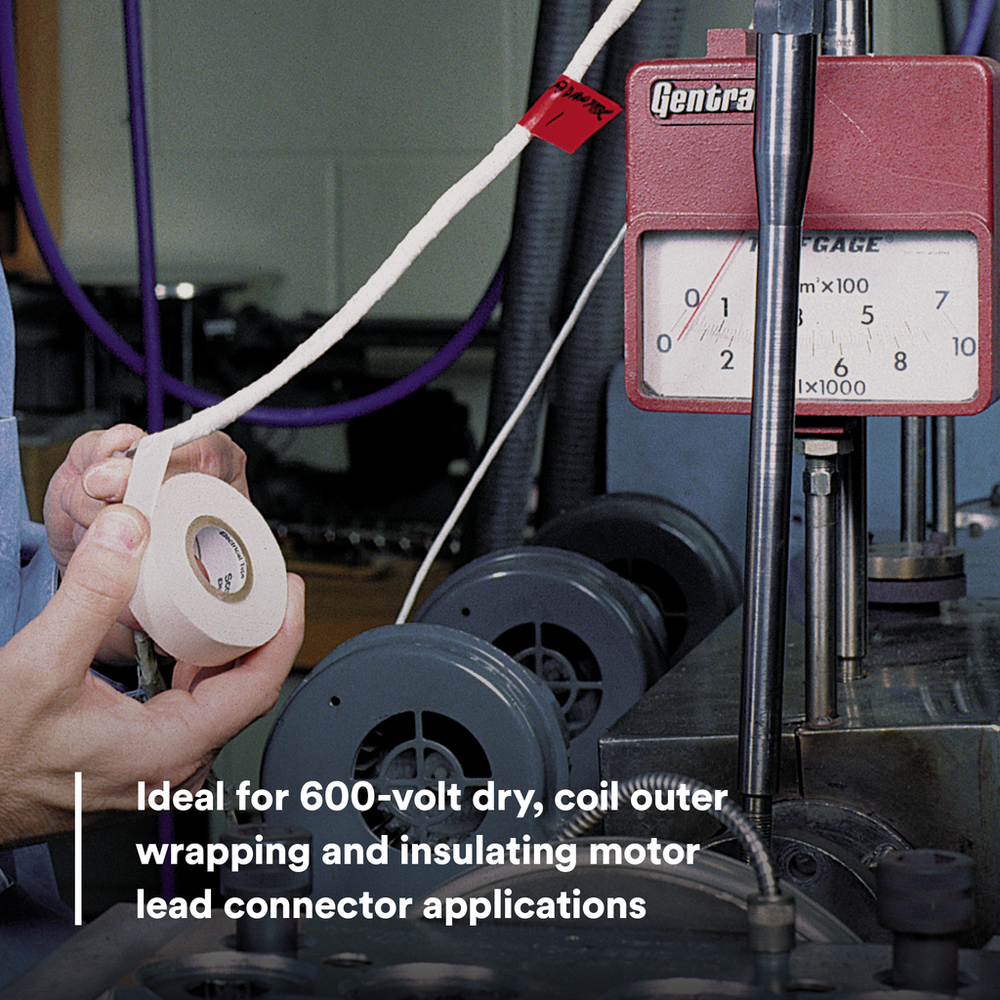

For use as a coil cover, anchor, banding and core, layer and crossover insulation
Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
Printable
Edge-tear resistant, conformable, and abrasion resistant

Spec Sheet

Downloads

Product Selection Guides

Document Catalogs

Spec Sheet

Document Brochure 3

Specifications

Country of Origin	United States
Application	Electrical Maintenance; Insulation
Backing (Carrier) Thickness (Metric)	0.127
Dielectric Strength	2725.0
Minimum Operating Temperature (Fahrenheit)	32.0
Overall Width (Metric) UOM	mm
Backing (Carrier) Thickness (Metric) UOM	mm
Maximum Operating Temperature (Celsius)	150.0
Minimum Operating Temperature (Celsius) UOM	Degree
Total Tape Thickness without Liner (Metric)	0.178
Overall Width (Imperial) UOM	in
Maximum Operating Temperature (Celsius) UOM	Degree
Tape Grade	Professional
Total Tape Thickness without Liner (Metric) UOM	mm
Total Tape Thickness without Liner (Imperial)	7.0
Shelf Life UOM	Year
Insulation Resistance	5 x 10^1 megohms
Specifications Met	CSA Certified, RoHS 2011/65/EU, UL Recognized

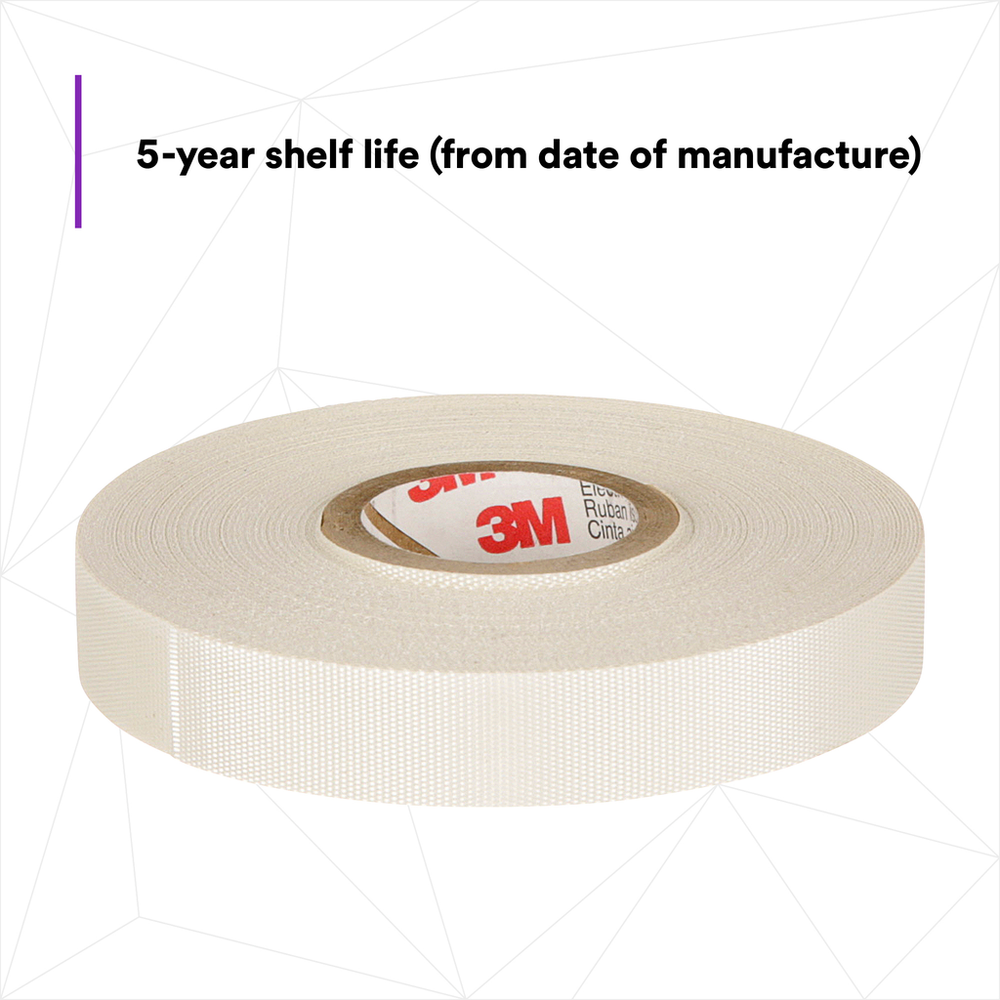

Shelf Life	1825
Dielectric Strength UOM	V
Electrolytic Corrosion Factor	0.9
Overall Length (Imperial) UOM	ft
Overall Length (Imperial)	66.0
Maximum Operating Temperature (Fahrenheit)	302.0
Minimum Operating Temperature (Celsius)	0.0
Backing (Carrier) Material	Glass Cloth
Units per Case	50.0
Backing (Carrier) Thickness (Imperial) UOM	mil
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Adhesive Type	Rubber
Overall Length (Metric) UOM	m
Overall Length (Metric)	20.1
Backing (Carrier) Thickness (Imperial)	5.0
Product Markets	Electrical Construction
Overall Width (Metric)	12.7
Total Tape Thickness without Liner (Imperial) UOM	mil
Elongation at Break	5
Overall Width (Imperial)	0.5
Product Color	White
Minimum Operating Temperature (Fahrenheit) UOM	Degree
