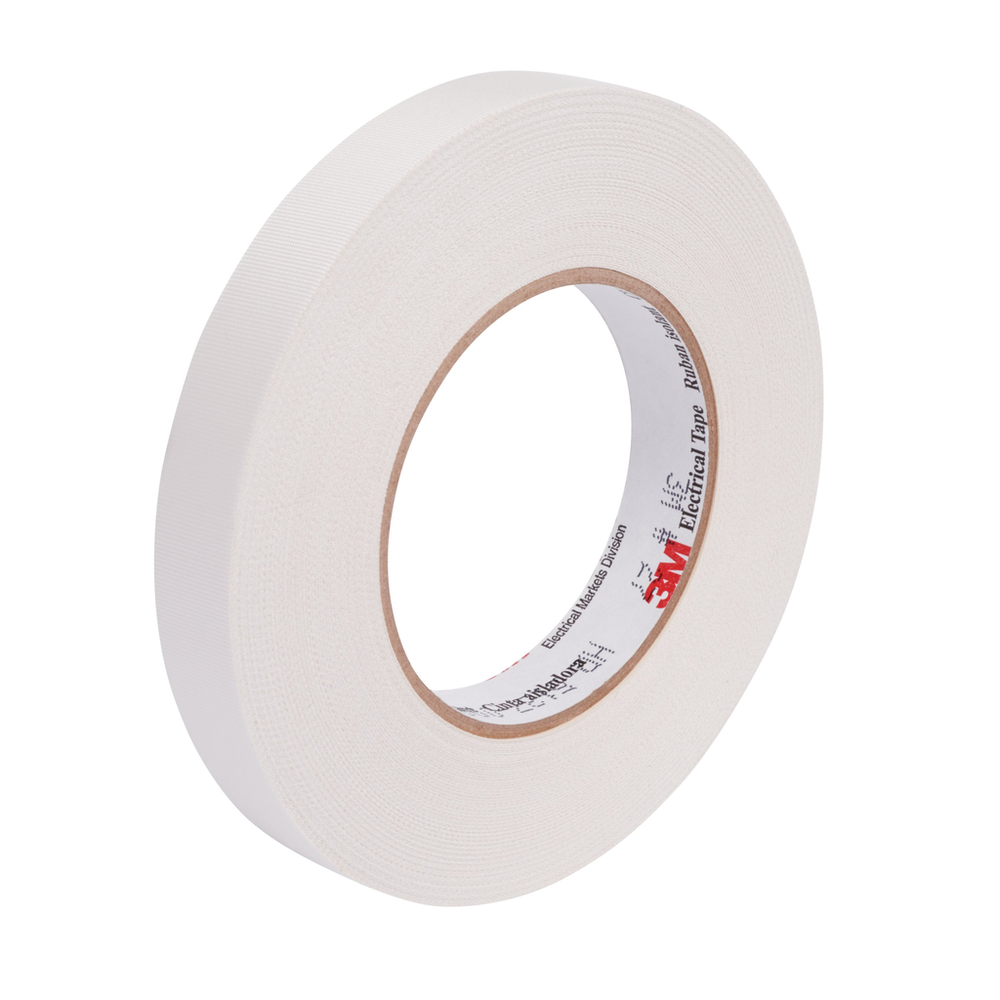

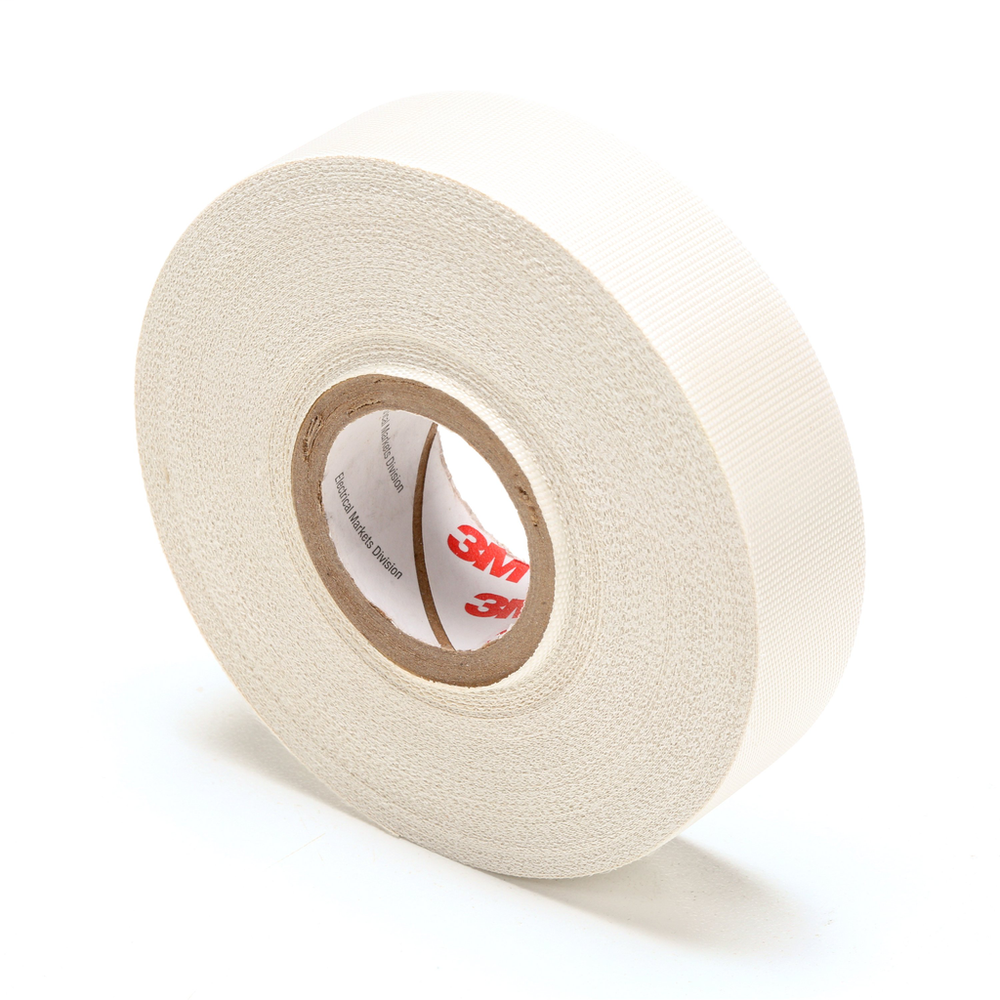

3M™ Glass Cloth Electrical Tape 27, 3/4 in x 66 ft, 50 Rolls/Case - 7000005815

Name: 3M™ Glass Cloth Electrical Tape 27, 3/4 in x 66 ft, 50 Rolls/Case - 7000005815
Brand: 3M Products & Supplies
SKU: 7000005815
Price: 1193.45 USD
Availability: InStock

Sold As: 50-Pack

SKU: 7000005815

MPN: 7000005815

Stock Item: Stock items typically ship within 2-3 business days

UPC: 30054007150740

3M ID: 80012020360

5 Digit UPC: 15074

$1,193.45 ($23.87 / Count)

Hurry up! Current stock:

Quantity:

Product Description

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

Adhesive is specially designed and prepared to provide corrosion protection
0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
For use as a coil cover, anchor, banding and core, layer and crossover insulation
Printable
Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
Edge-tear resistant, conformable, and abrasion resistant

Spec Sheet

Downloads

Product Selection Guides

Specifications

Shelf Life	1825
Country of Origin	United States
Overall Width (Imperial)	0.75
Maximum Operating Temperature (Celsius)	150.0
Maximum Operating Temperature (Fahrenheit)	302.0
Overall Length (Metric) UOM	m
Total Tape Thickness without Liner (Imperial)	7.0
Dielectric Strength UOM	V
Overall Width (Imperial) UOM	in
Application	Electrical Maintenance; Insulation
Minimum Operating Temperature (Celsius)	0.0
Units per Case	50.0

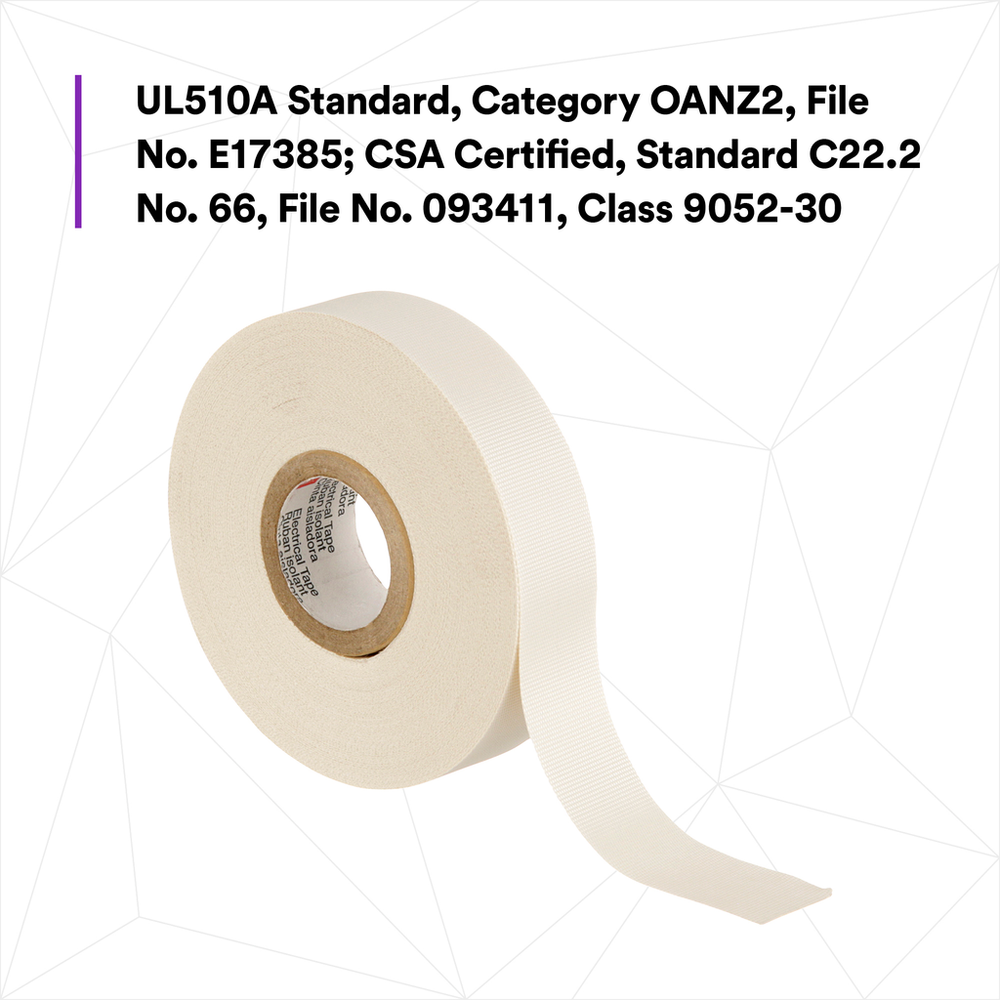

Specifications Met	CSA Certified, RoHS 2011/65/EU, UL Recognized
Overall Length (Metric)	20.1
Insulation Resistance	5 x 10^1 megohms
Electrolytic Corrosion Factor	0.9
Dielectric Strength	2725.0
Backing (Carrier) Material	Glass Cloth
Overall Width (Metric) UOM	mm
Minimum Operating Temperature (Fahrenheit) UOM	Degree
Product Markets	Electrical Construction
Backing (Carrier) Thickness (Imperial)	5.0
Backing (Carrier) Thickness (Metric)	0.127
Maximum Operating Temperature (Fahrenheit) UOM	Degree
Total Tape Thickness without Liner (Metric) UOM	mm
Overall Width (Metric)	19.05
Minimum Operating Temperature (Fahrenheit)	32.0
Backing (Carrier) Thickness (Metric) UOM	mm
Product Color	White
Adhesive Type	Rubber
Tape Grade	Professional
Overall Length (Imperial)	66.0
Minimum Operating Temperature (Celsius) UOM	Degree
Backing (Carrier) Thickness (Imperial) UOM	mil
Overall Length (Imperial) UOM	ft
Shelf Life UOM	Year
Total Tape Thickness without Liner (Metric)	0.178
Elongation at Break	5
Total Tape Thickness without Liner (Imperial) UOM	mil
Maximum Operating Temperature (Celsius) UOM	Degree
