3M Products & Supplies

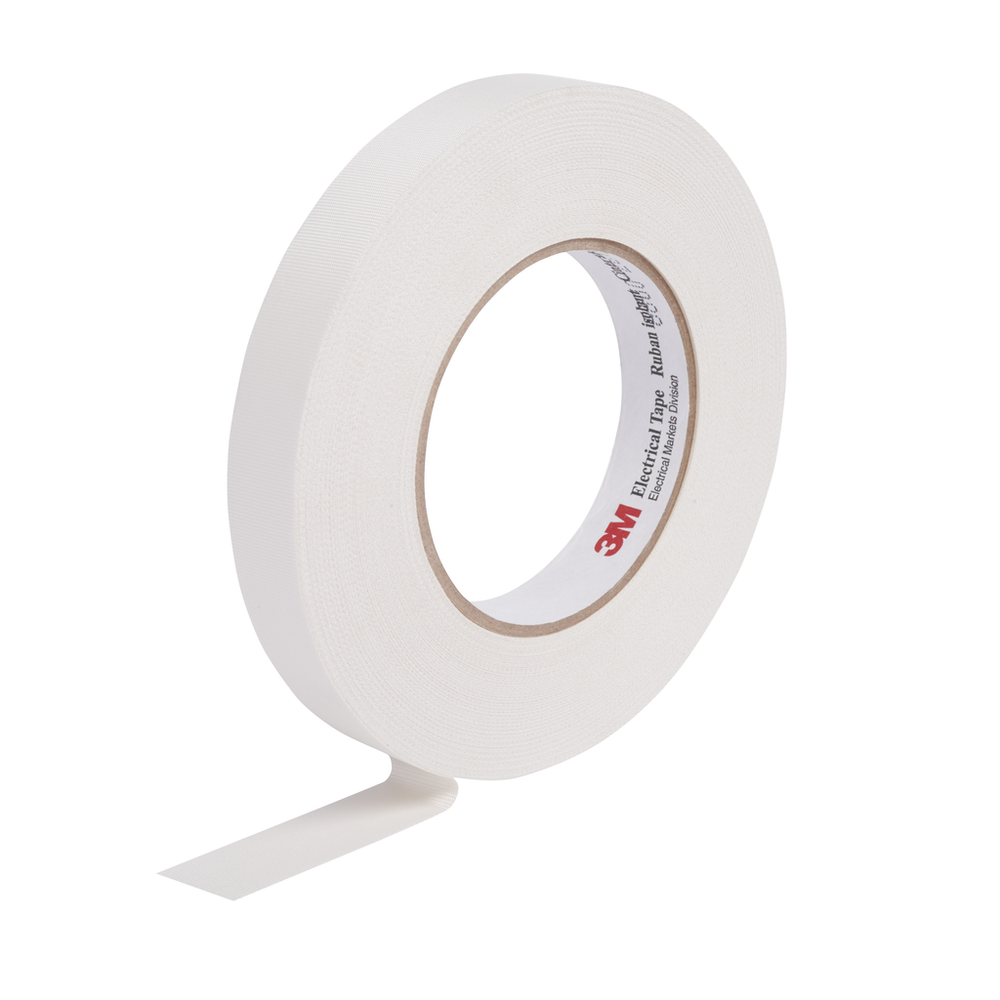

3M™ Glass Cloth Electrical Tape 27, 1 in X 66 ft, Bulk, 3-in paper core, 36 Rolls/Case - 7010398748

Sold As: 36-Pack
SKU: 7010398748
MPN: 7010398748
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138480028
3M ID: 80610874861
5 Digit UPC: 48002
$1,186.98 ($32.97 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 27 is a 0.18 mm (7 mil) woven insulating tape with pressure sensitive rubber thermosetting adhesive. This tape is designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures. The adhesive is specially designed and prepared to provide corrosion protection.

Features

  • Edge-tear resistant, conformable, and abrasion resistant
  • Adhesive is specially designed and prepared to provide corrosion protection
  • Designed to operate in 600 volt dry applications requiring high mechanical strength and resistance to high temperatures
  • 0.18 mm (7-mil) woven insulating glass cloth tape with pressure-sensitive rubber thermosetting adhesive
  • For use as a coil cover, anchor, banding and core, layer and crossover insulation
  • Printable
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Imperial)66.0
Maximum Operating Temperature (Celsius) UOMDegree
Shelf Life UOMYear
Dielectric Strength UOMV
Backing (Carrier) Thickness (Imperial)5.0
Overall Length (Imperial) UOMft
Total Tape Thickness without Liner (Metric)0.178
Dielectric Strength2725.0
Minimum Operating Temperature (Fahrenheit)32.0
Total Tape Thickness without Liner (Imperial)7.0
Adhesive TypeRubber
Maximum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Celsius)150.0
Tape GradeProfessional
Specifications MetCSA Certified, RoHS 2011/65/EU, UL Recognized
Overall Width (Imperial) UOMin
Backing (Carrier) Thickness (Metric) UOMmm
Overall Width (Metric)25.4
Product MarketsElectrical Construction
Backing (Carrier) MaterialGlass Cloth
Backing (Carrier) Thickness (Imperial) UOMmil
Backing (Carrier) Thickness (Metric)0.127
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Imperial)1.0
Product ColorWhite
Electrolytic Corrosion Factor0.9
ApplicationElectrical Maintenance; Insulation
Total Tape Thickness without Liner (Imperial) UOMmil
Minimum Operating Temperature (Fahrenheit) UOMDegree
Maximum Operating Temperature (Fahrenheit)302.0
Minimum Operating Temperature (Celsius)0.0
Insulation Resistance5 x 10^1 megohms
Overall Length (Metric)20.1
Minimum Operating Temperature (Celsius) UOMDegree
Overall Length (Metric) UOMm
Elongation at Break5
