3M™ Glass Cloth Electrical Tape 69, 1 1/2 in X 66 ft, Bulk, 3-in paper core, 24 Rolls/Case - 7010320381

Sold As: 24-Pack
SKU: 7010320381
MPN: 7010320381
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138496203
3M ID: 80610881999
5 Digit UPC: 49620
$1,522.76 ($63.45 / Count)
Hurry up! Current stock:

Product Description

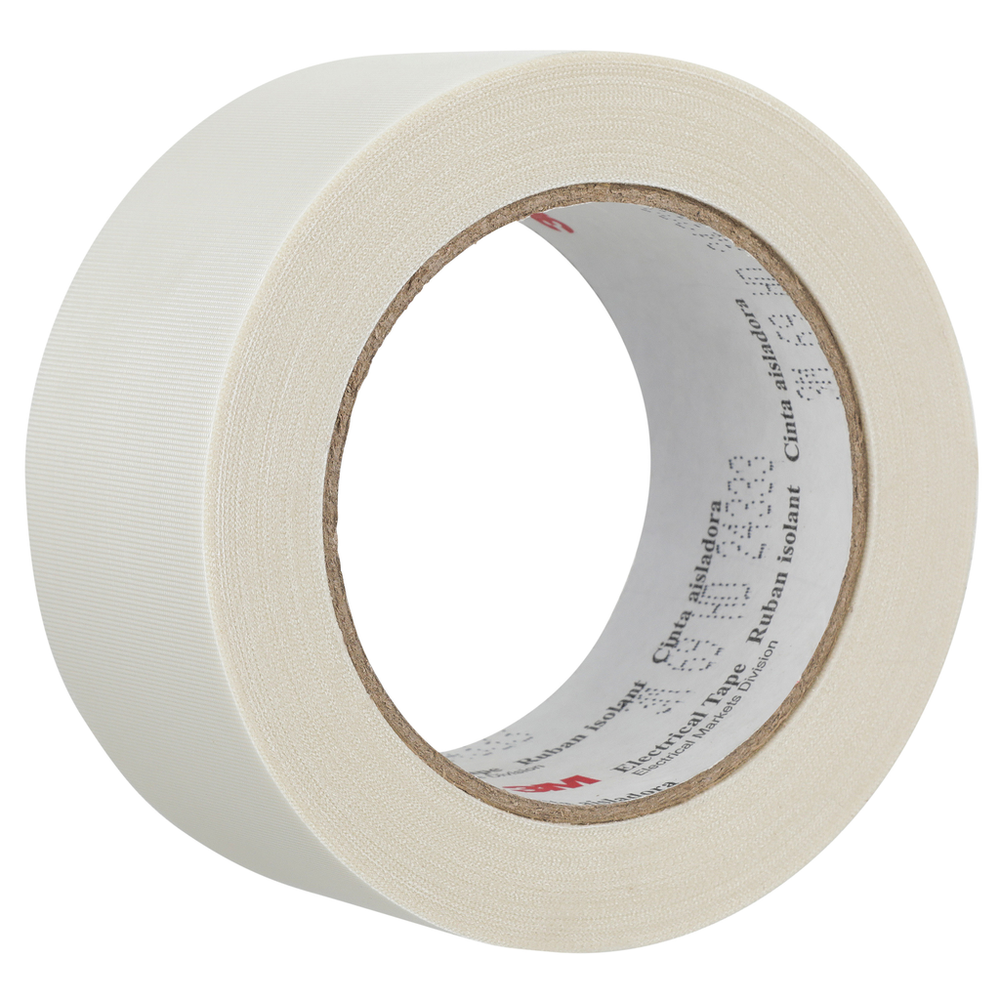

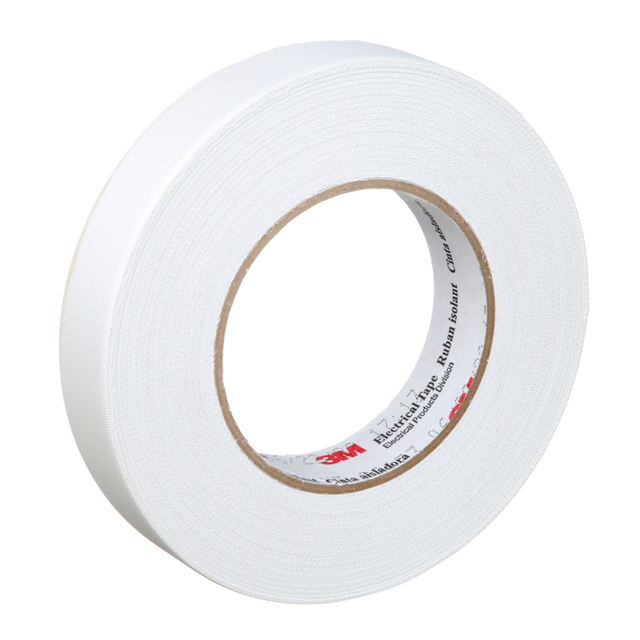

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • UL Recognized flame retardant
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
  • Printable
  • Pressure-sensitive silicone adhesive with glass cloth backing
  • Nominal thickness: 0.178 mm (7.0 mil)
  • 5 year shelf-life when stored per 3M recommended conditions

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Metric)20.0
ApplicationInsulation
Dielectric Strength3000.0
Overall Length (Imperial)66.0
Overall Length (Imperial) UOMft
Overall Length (Metric) UOMm
Overall Width (Imperial)1.5
Overall Width (Imperial) UOMin
Dielectric Strength UOMV
Shelf Life UOMYear
Overall Width (Metric)38.1
Tape GradeProfessional
Product ColorWhite
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Imperial)7.0
Overall Width (Metric) UOMmm
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Backing (Carrier) MaterialGlass Cloth
Product MarketsElectrical Equipment Manufacturing
Adhesive TypeSilicone
Total Tape Thickness without Liner (Metric) UOMmm
Insulation Resistance4.8 x 10^4 megohms
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Metric)0.178
