3M Products & Supplies

3M™ Glass Cloth Electrical Tape 69, 1 in x 66 ft, bulk, 3-in paper core,, 32 Rolls/Case - 7010397206

Sold As: 32-Pack
SKU: 7010397206
MPN: 7010397206
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051122426599
3M ID: 80611087588
5 Digit UPC: 42659
$1,326.23 ($41.44 / Count)
Hurry up! Current stock:

Product Description

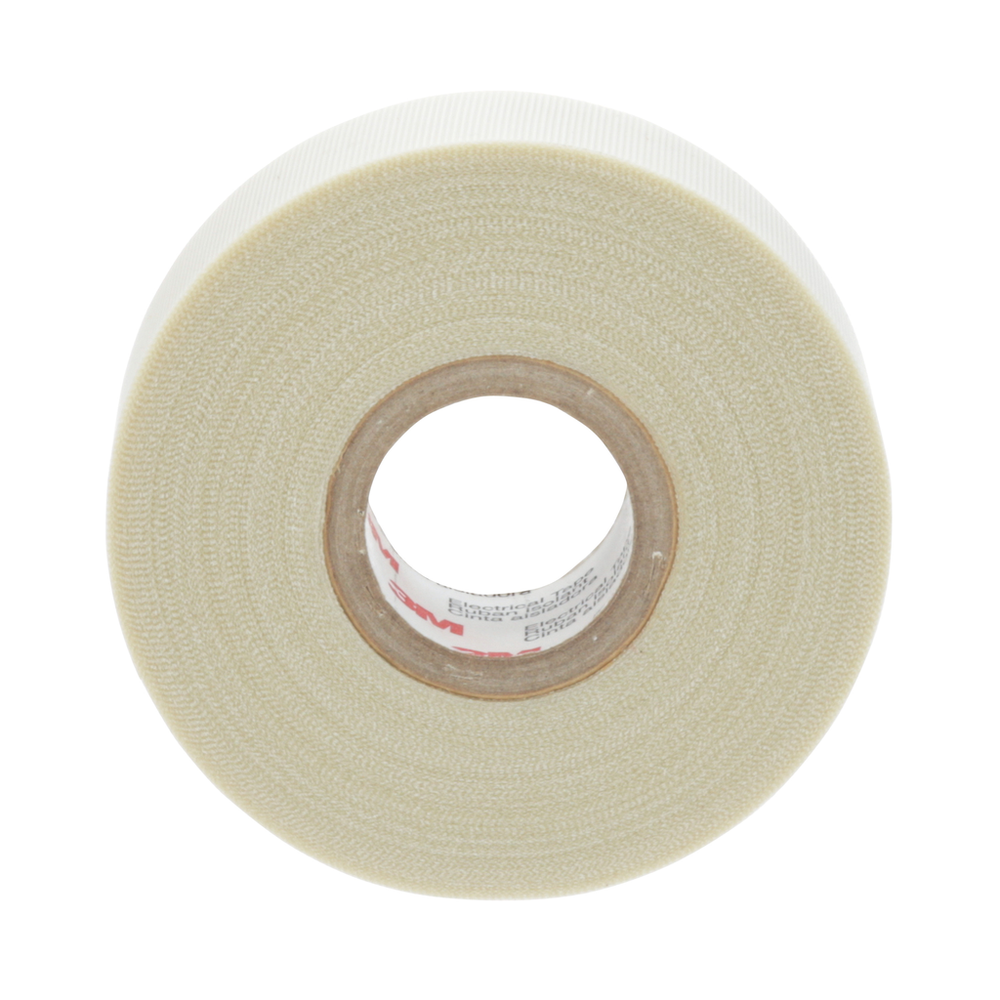

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • Nominal thickness: 0.178 mm (7.0 mil)
  • UL Recognized flame retardant
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings
  • Printable
  • 5 year shelf-life when stored per 3M recommended conditions
  • Pressure-sensitive silicone adhesive with glass cloth backing

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Length (Metric) UOMm
Backing (Carrier) MaterialGlass Cloth
Product MarketsElectrical Equipment Manufacturing
Total Tape Thickness without Liner (Metric)0.178
Overall Length (Metric)20.0
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Total Tape Thickness without Liner (Imperial) UOMmil
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Product ColorWhite
Tape GradeProfessional
Dielectric Strength UOMV
Electrolytic Corrosion Factor1.0
Dielectric Strength3000.0
Overall Width (Metric)25.4
Total Tape Thickness without Liner (Imperial)7.0
Insulation Resistance4.8 x 10^4 megohms
Overall Length (Imperial)66.0
Overall Length (Imperial) UOMft
Overall Width (Imperial)1.0
Overall Width (Imperial) UOMin
Adhesive TypeSilicone
ApplicationInsulation
Shelf Life UOMYear
