3M Products & Supplies

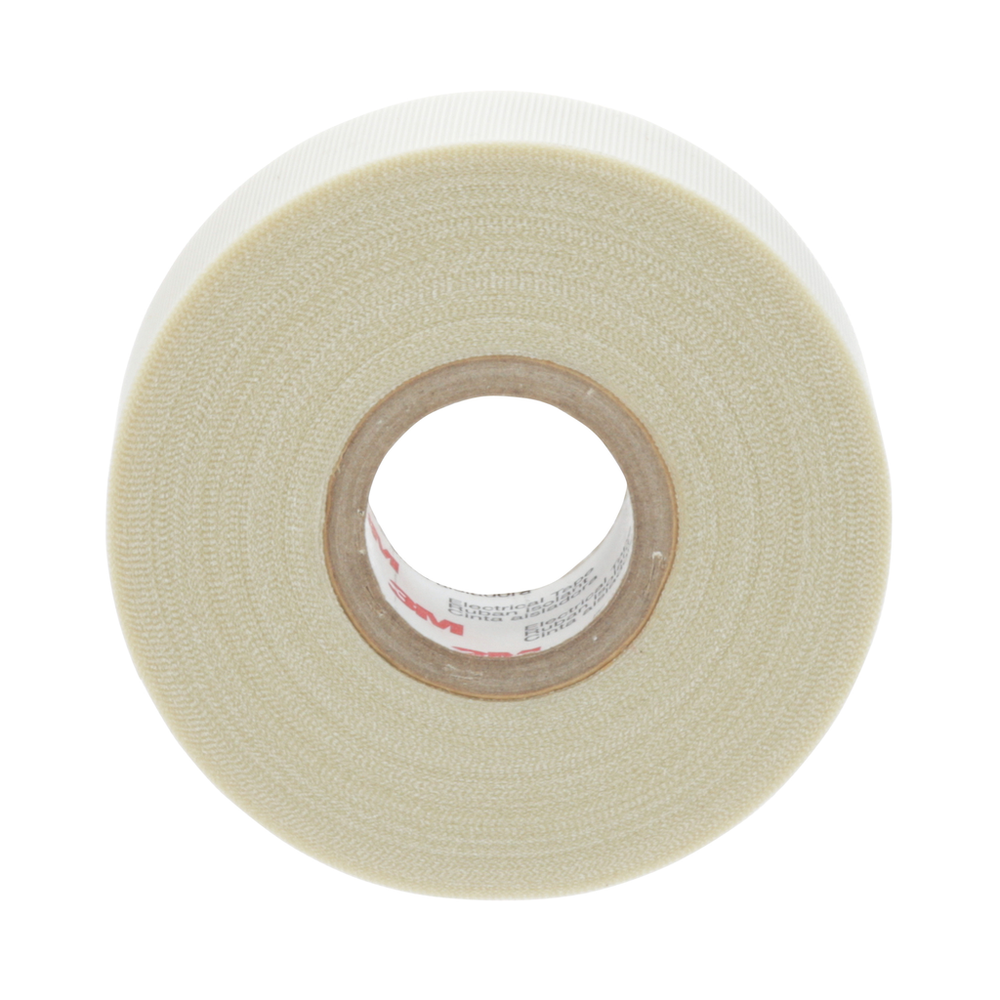

3M™ Glass Cloth Electrical Tape 69, 1 X 66 ft, Bulk, 1-in paper core, 36 Rolls/Case - 7000132834

Sold As: 36-Pack
SKU: 7000132834
MPN: 7000132834
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051122426018
3M ID: 80611087059
5 Digit UPC: 42601
$1,521.14 ($42.25 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 69 is a white, 0.178 mm (7-mil) thick tape composed of a 0.140 mm (5.5-mil) glass cloth backing coated on one side with a non-corrosive, high-temperature, flame retardant, thermosetting silicone pressure-sensitive adhesive.

Features

  • Nominal thickness: 0.178 mm (7.0 mil)
  • Pressure-sensitive silicone adhesive with glass cloth backing
  • Printable
  • 5 year shelf-life when stored per 3M recommended conditions
  • UL Recognized flame retardant
  • UL 200°C (392°F) and CSA 180°C (356°F) temperature ratings

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Imperial)1.0
Overall Width (Imperial) UOMin
Electrolytic Corrosion Factor1.0
Total Tape Thickness without Liner (Metric)0.178
Overall Width (Metric)25.4
Overall Width (Metric) UOMmm
Tape GradeProfessional
Overall Length (Imperial) UOMft
Adhesive TypeSilicone
Total Tape Thickness without Liner (Imperial) UOMmil
Backing (Carrier) MaterialGlass Cloth
Specifications MetCSA, RoHS 2011/65/EU, UL Recognized
Overall Length (Metric)20.15
Dielectric Strength3000.0
ApplicationInsulation
Insulation Resistance4.8 x 10^4 megohms
Overall Length (Imperial)66.0
Total Tape Thickness without Liner (Imperial)7.0
Dielectric Strength UOMV
Overall Length (Metric) UOMm
Product MarketsElectrical Equipment Manufacturing
Product ColorWhite
Total Tape Thickness without Liner (Metric) UOMmm
Shelf Life UOMYear
