3M Products & Supplies

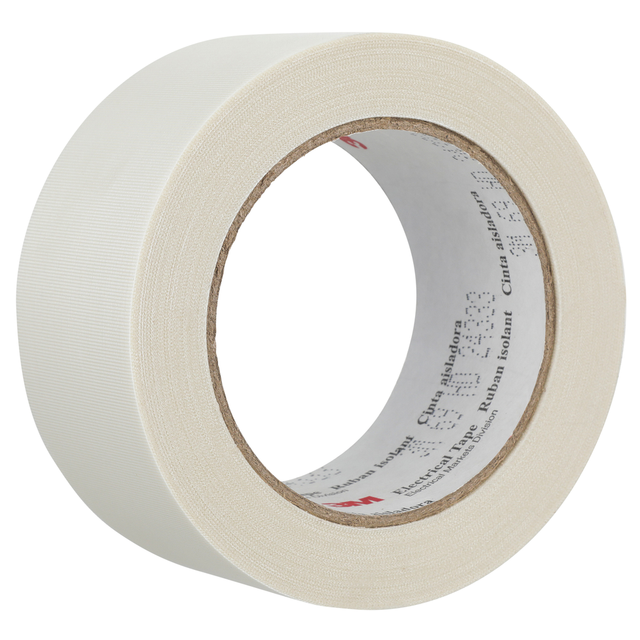

3M™ Glass Cloth Electrical Tape 79, 2 in X 60 yds, Bulk, 3-in paper, Bulk, 20 Rolls/Case - 7010350303

Sold As: 20-Pack
SKU: 7010350303
MPN: 7010350303
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138504175
3M ID: 80610889927
5 Digit UPC: 50417
$2,044.37 ($102.22 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).

Features

  • Printable and has the ability to absorb resin and varnishes
  • Glass cloth backing ensures maximum stability
  • Withstands a temperature range of 32 to 302 °F (0 to 150 °C)
  • Designed for coils/transformers and motor applications
  • Highly conformable and resists solvents
  • Pressure-sensitive, acrylic adhesive offers optimized adherence

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Overall Width (Metric) UOMmm
Overall Length (Imperial) UOMyd
Total Tape Thickness without Liner (Imperial)7.0
Overall Length (Imperial)60.0
Dielectric Strength3000.0
Shelf Life UOMYear
Dielectric Strength UOMV
Total Tape Thickness without Liner (Imperial) UOMmil
Tape GradeProfessional
Overall Width (Imperial)2.0
Overall Width (Imperial) UOMin
ApplicationInsulation
Overall Width (Metric)50.8
Electrolytic Corrosion Factor0.9
Product MarketsElectrical Equipment Manufacturing
Product ColorWhite
Total Tape Thickness without Liner (Metric)0.178
Insulation Resistance2.7 x 10^2 megohms
Total Tape Thickness without Liner (Metric) UOMmm
Adhesive TypeAcrylic
Backing (Carrier) MaterialGlass Cloth
