3M Products & Supplies

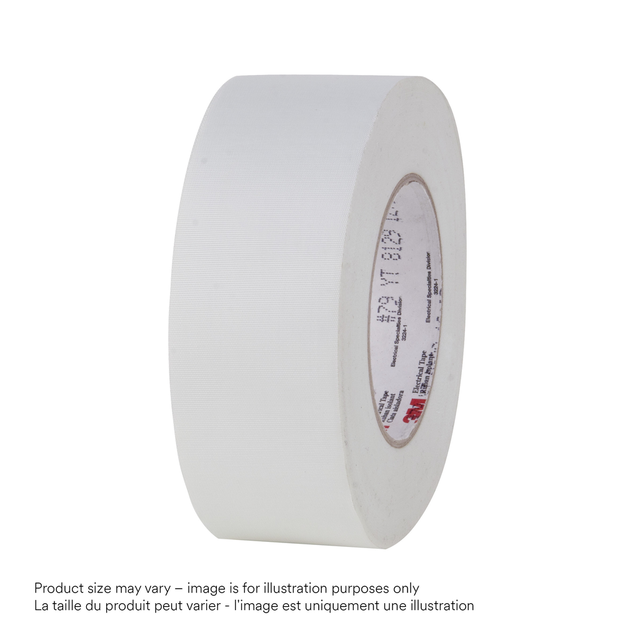

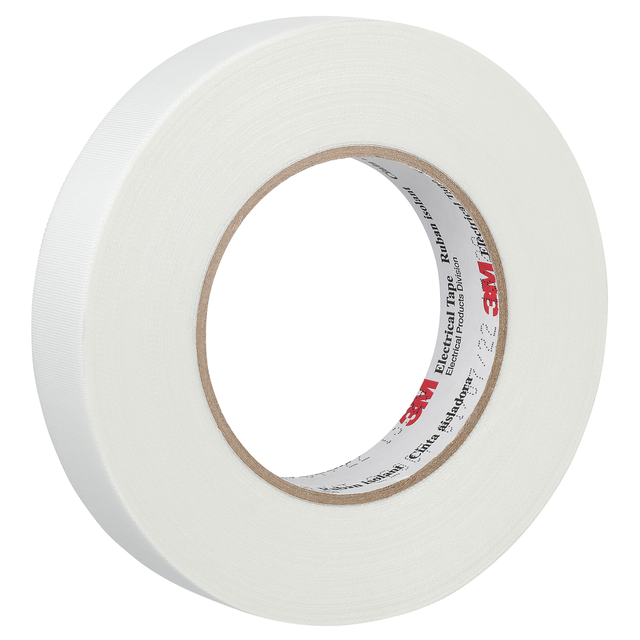

3M™ Glass Cloth Electrical Tape 79, .657 in x 60 yd, 3 in Paper Core, 52 Rolls/Case - 7010320388

Sold As: 52-Pack
SKU: 7010320388
MPN: 7010320388
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138510435
3M ID: 80610896161
5 Digit UPC: 51043
$1,747.63 ($33.61 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).

Features

  • Highly conformable and resists solvents
  • Withstands a temperature range of 32 to 302 °F (0 to 150 °C)
  • Printable and has the ability to absorb resin and varnishes
  • Glass cloth backing ensures maximum stability
  • Designed for coils/transformers and motor applications
  • Pressure-sensitive, acrylic adhesive offers optimized adherence

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Total Tape Thickness without Liner (Imperial)7.0
Overall Length (Imperial) UOMyd
Dielectric Strength3000.0
Insulation Resistance2.7 x 10^2 megohms
Dielectric Strength UOMV
Total Tape Thickness without Liner (Imperial) UOMmil
Electrolytic Corrosion Factor0.9
Overall Length (Imperial)60.0
Total Tape Thickness without Liner (Metric) UOMmm
Product ColorWhite
Overall Width (Imperial)0.657
Overall Width (Metric) UOMmm
Backing (Carrier) MaterialGlass Cloth
Total Tape Thickness without Liner (Metric)0.178
ApplicationInsulation
Shelf Life UOMYear
Product MarketsElectrical Equipment Manufacturing
Tape GradeProfessional
Overall Width (Imperial) UOMin
Adhesive TypeAcrylic
Overall Width (Metric)16.69
