3M Products & Supplies

3M™ Glass Cloth Electrical Tape 79, 1 in x 60 yd, White, 36 Rolls/Case - 7010398741

Sold As: 36-Pack
SKU: 7010398741
MPN: 7010398741
For an accurate lead time please contact us
UPC: 00051138528898
3M ID: 80610870950
5 Digit UPC: 52889
$1,672.98 ($46.47 / Count)
Hurry up! Current stock:

Product Description

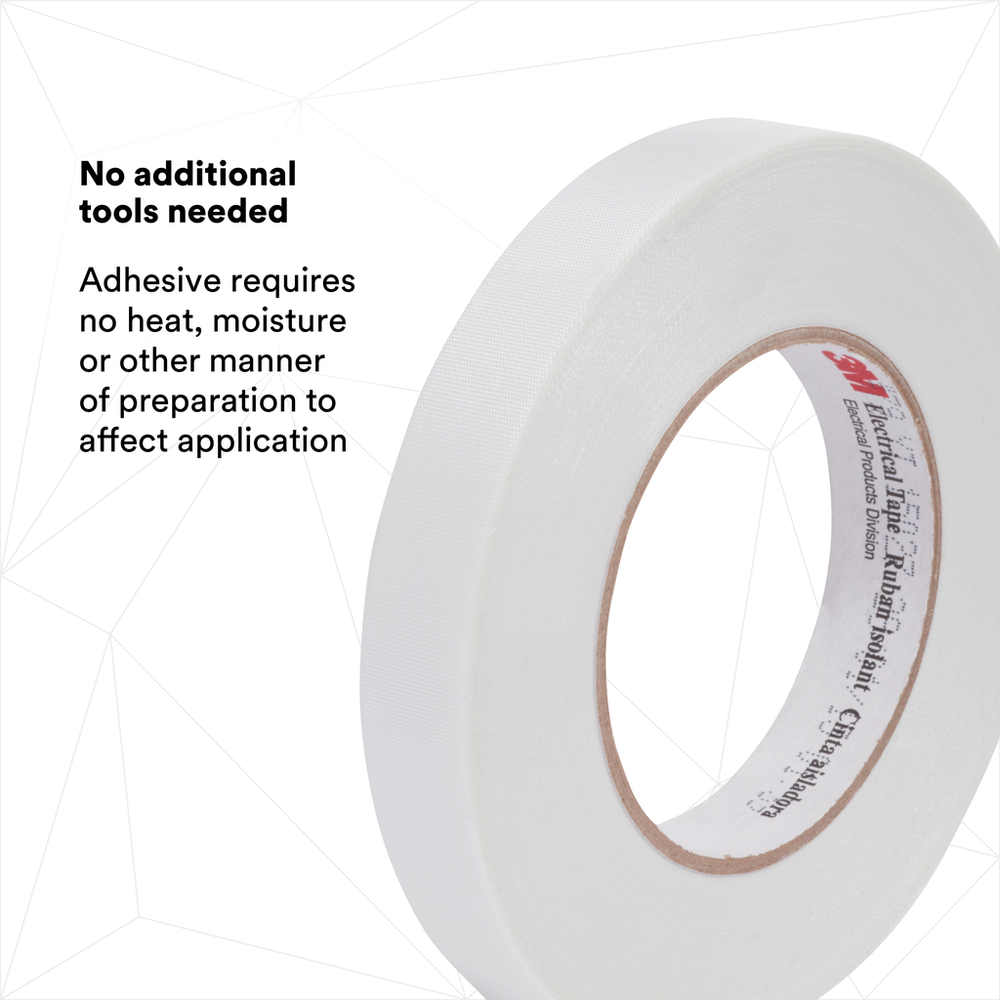

3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).

Features

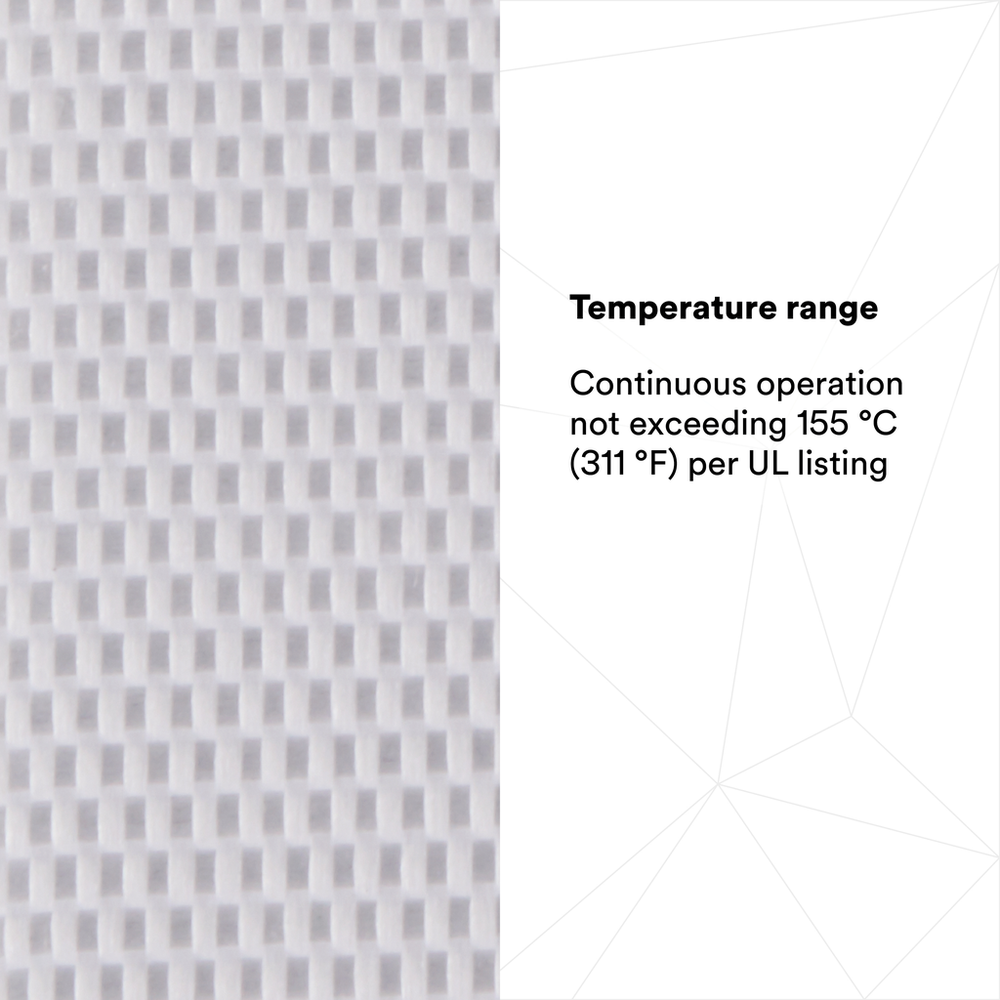

  • Withstands a temperature range of 32 to 302 °F (0 to 150 °C)
  • Glass cloth backing ensures maximum stability
  • Printable and has the ability to absorb resin and varnishes
  • Highly conformable and resists solvents
  • Pressure-sensitive, acrylic adhesive offers optimized adherence
  • Designed for coils/transformers and motor applications
Spec Sheet



Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Backing (Carrier) MaterialGlass Cloth
Overall Width (Imperial)1.0
Overall Width (Imperial) UOMin
Overall Length (Metric) UOMm
Total Tape Thickness without Liner (Imperial) UOMmil
Product MarketsElectrical Equipment Manufacturing
Overall Length (Imperial)60.0
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Metric) UOMmm
Electrolytic Corrosion Factor0.9
Adhesive TypeAcrylic
ApplicationInsulation
Tape GradeProfessional
Total Tape Thickness without Liner (Metric)0.178
Product ColorWhite
Overall Length (Imperial) UOMyd
Overall Length (Metric)54.8
Dielectric Strength3000.0
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial)7.0
Dielectric Strength UOMV
Overall Width (Metric)25.4
Insulation Resistance2.7 x 10^2 megohms
