3M Products & Supplies

3M™ Glass Cloth Electrical Tape 79, 3/8 in x 60 yd, White, 96 Rolls/Case - 7010304000

Sold As: 96-Pack
SKU: 7010304000
MPN: 7010304000
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051138492762
3M ID: 80610878672
5 Digit UPC: 49276
$1,670.02 ($17.40 / Count)
Hurry up! Current stock:

Product Description

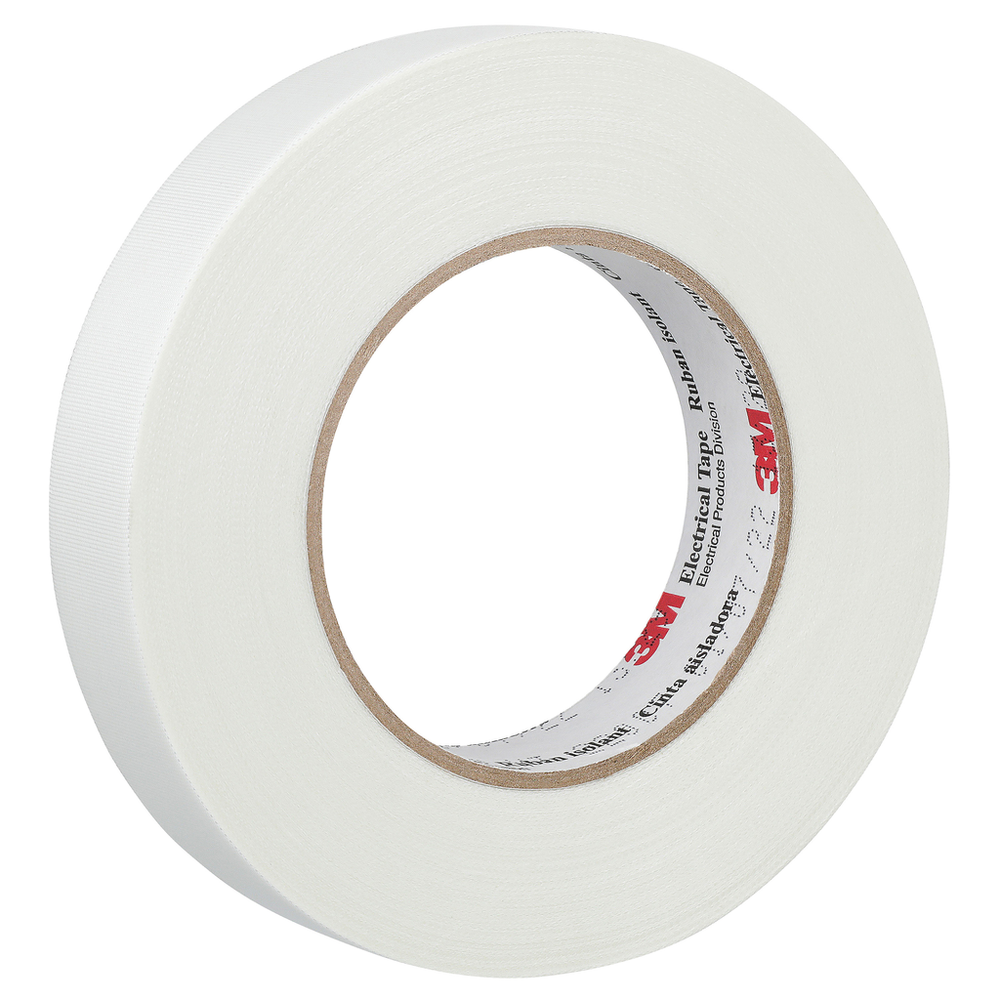

3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).

Features

  • Pressure-sensitive, acrylic adhesive offers optimized adherence
  • Printable and has the ability to absorb resin and varnishes
  • Withstands a temperature range of 32 to 302 °F (0 to 150 °C)
  • Glass cloth backing ensures maximum stability
  • Designed for coils/transformers and motor applications
  • Highly conformable and resists solvents

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Shelf Life UOMYear
Total Tape Thickness without Liner (Imperial)7.0
Total Tape Thickness without Liner (Imperial) UOMmil
Overall Width (Imperial)0.375
Overall Width (Metric)9.53
Electrolytic Corrosion Factor0.9
Product ColorWhite
Overall Width (Metric) UOMmm
Product MarketsElectrical Equipment Manufacturing
Backing (Carrier) MaterialGlass Cloth
Dielectric Strength3000.0
Overall Length (Metric) UOMm
ApplicationInsulation
Overall Length (Imperial)60.0
Insulation Resistance2.7 x 10^2 megohms
Overall Width (Imperial) UOMin
Dielectric Strength UOMV
Overall Length (Metric)54.8
Tape GradeProfessional
Adhesive TypeAcrylic
Total Tape Thickness without Liner (Metric)0.178
Total Tape Thickness without Liner (Metric) UOMmm
Overall Length (Imperial) UOMyd
