3M Products & Supplies

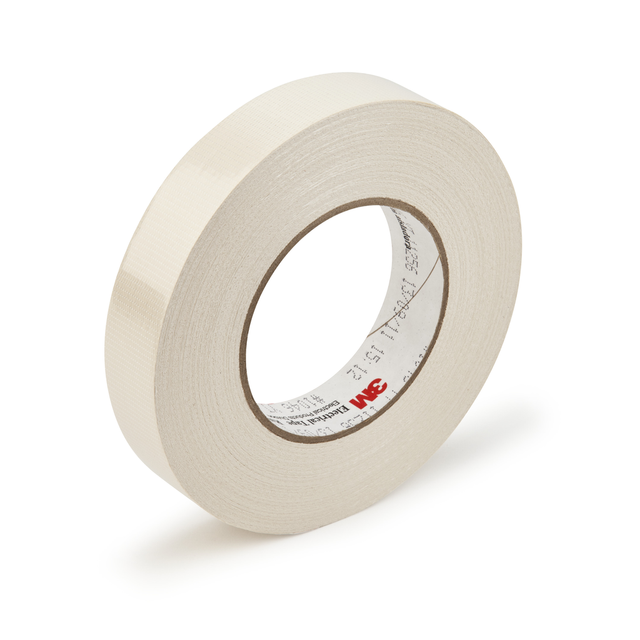

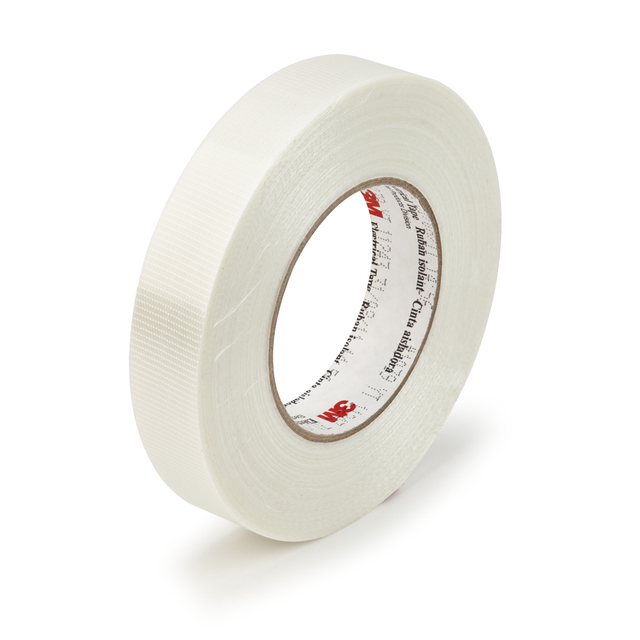

3M™ Tape 79, 1.187 in x 60 yds, 3 in paper core, Bulk, 32 Rolls/Case - 7010290989

Sold As: 32-Pack
SKU: 7010290989
MPN: 7010290989
Made to Order: For a lead time estimate, please send your request to [email protected]
UPC: 00051128570043
3M ID: 80611435951
5 Digit UPC: 57004
$2,030.10 ($63.44 / Count)
Hurry up! Current stock:

Product Description

3M™ Glass Cloth Electrical Tape 79 is a printable tape used in coils/transformers and motor applications. It includes an outer wrap for bobbin wound coils, banding arbor wound coils, lead pad hold downs, end turns and lead anchors, as well as connections. This tape is 600V rated and withstands a temperature range of 32 to 302 °F (0 to 150 °C).

Features

  • Highly conformable and resists solvents
  • Pressure-sensitive, acrylic adhesive offers optimized adherence
  • Designed for coils/transformers and motor applications
  • Printable and has the ability to absorb resin and varnishes
  • Glass cloth backing ensures maximum stability
  • Withstands a temperature range of 32 to 302 °F (0 to 150 °C)

Downloads

Specifications

Shelf Life1825
Country of OriginUnited States
Product MarketsElectrical Equipment Manufacturing
Adhesive TypeAcrylic
Overall Width (Metric)30.15
Tape GradeProfessional
Total Tape Thickness without Liner (Imperial)7.0
Dielectric Strength3000.0
Total Tape Thickness without Liner (Metric)0.178
Insulation Resistance2.7 x 10^2 megohms
Total Tape Thickness without Liner (Metric) UOMmm
Overall Width (Metric) UOMmm
Total Tape Thickness without Liner (Imperial) UOMmil
Electrolytic Corrosion Factor0.9
Backing (Carrier) MaterialGlass Cloth
Dielectric Strength UOMV
Shelf Life UOMYear
Overall Width (Imperial) UOMin
Overall Width (Imperial)1.19
Product ColorWhite
ApplicationInsulation
